|Basic Fiberglass:||430g Cloth||Coating:||Silicone, 40g/m2|
|Thickness:||0.45mm||Mass Per Unit Area:||470g/m2|
|Common Width:||1000mm||Application:||Fabric Expansion Joint, Fire Blanket|
thermal insulation blankets,
thermal insulation jackets

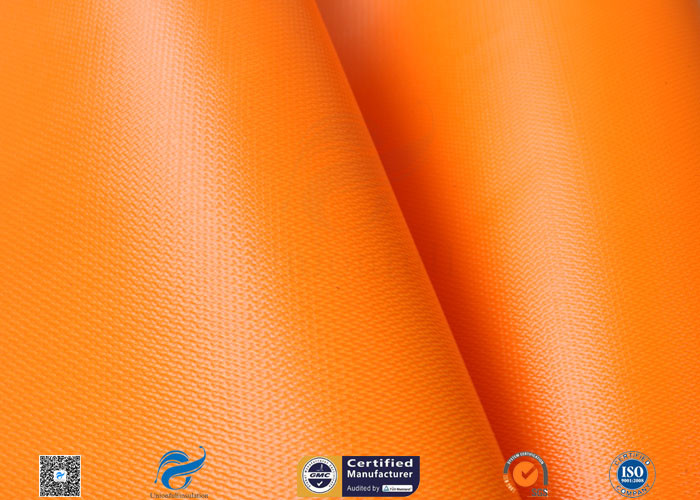

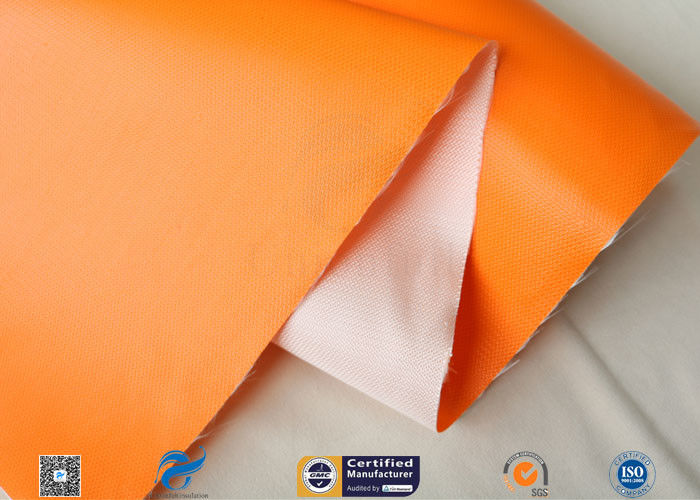

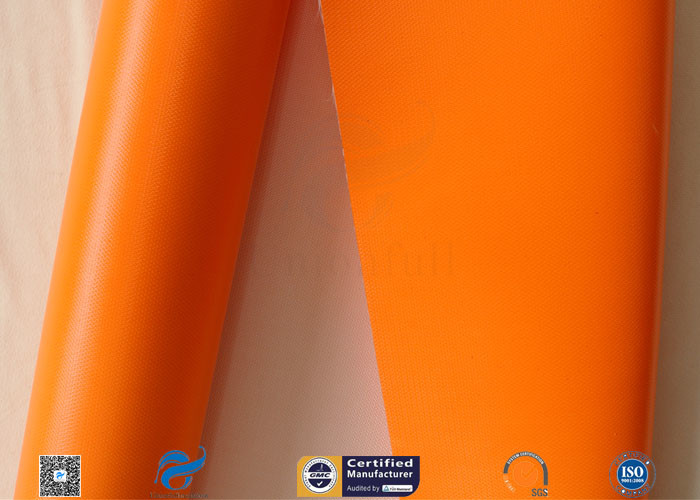

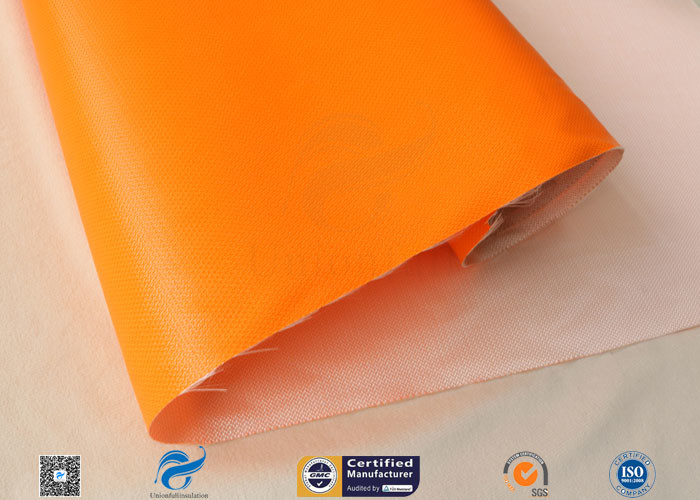

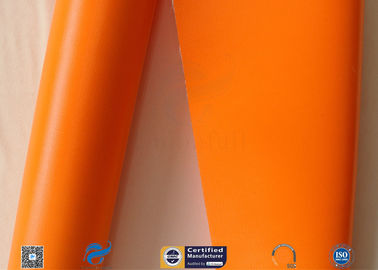

470gsm Thermal Insulation Materials Orange Silicone Coated Fiberglass Cloth
G37 1/0 0.7Z fiberglass yarns are woven in a fabric which is weighed at 430g/m2. Silicone coated fiberglass fabric is a 430g basic cloth - glass fiber fabric coated with 40g/m2 orange silicone on its single side. Total weight of this silicone coated fiberglass fabric is 470g/m2. The basic fabric can be able to used below 550℃. But the orange silicone coating can resist temperature 260℃.
Silicone coated fiber glass fabric is an abrasion resistant material. Its basic - fiberglass cloth owns stable physical/chemical properties. It is anti chemical and fire resistant. And based on the electrical insulation of silicone coating, the silicone coated fabric is widely used for fire blankets, fabric expansion joints, fabric air ducting and removable thermal insulation blanket.
|Item||Silicone Coated Fiberglass Fabric|
|Material||100% Fiber Glass|
|Density||20 Ends/CM, 11 Ends/CM|
|Mass Per Unit||470g/m2|
Silicone Coating ≤ 260℃
Cloth ≤ 550℃
