Thermal Insulation Materials 31OZ 0.85MM Grey Silicone Coated Fiberglass Fabric

China Thermal Insulation Materials 31OZ 0.85MM Grey Silicone Coated Fiberglass Fabric supplier
Thermal Insulation Materials 31OZ 0.85MM Grey Silicone Coated Fiberglass Fabric supplier Thermal Insulation Materials 31OZ 0.85MM Grey Silicone Coated Fiberglass Fabric supplier Thermal Insulation Materials 31OZ 0.85MM Grey Silicone Coated Fiberglass Fabric supplier Thermal Insulation Materials 31OZ 0.85MM Grey Silicone Coated Fiberglass Fabric supplier

Large Image :  Thermal Insulation Materials 31OZ 0.85MM Grey Silicone Coated Fiberglass Fabric

Product Details:

Place of Origin: China
Brand Name: Unionfull
Certification: ISO9001:2008, SGS
Model Number: UPSE-8784D200

Payment & Shipping Terms:

Minimum Order Quantity: 100 Meters
Price: $5 - 8.5 / square meter
Packaging Details: 50 meters one roll in carton
Delivery Time: 15 days after receiving payment
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 54,000m2 one day
Contact Now
Detailed Product Description
Basic Cloth: 850gsm Fiberglass Cloth Coating: Grey Silicone
Total Weight: 1050GSM Length: 50M
Thickness: 0.85MM Standard Width: 1000MM

Thermal Insulation Materials 31OZ 0.85MM Grey Silicone Coated Fiberglass Fabric


Thermal insulation fabrics - silicone coated fiber glass cloth is common used material for industrial thermal insulation fields. With 200g/m2 silicone rubber on two sides, totall weight of this satin weave fiber glass fabric is 1050g/m2. Thickness is 0.85mm. It is woven with 8/6 per cm thread count. Standard roll of coated fabric is 1m wide x 50m long.

Fiberglass fabric is durable, flexible, heavy duty and heat&flame resistant. With grey silicone on two sides, the silicone coated glass fabric is abrasion resistant, electrical insulated, anti corrosion and oil/moisture resistant.

What's more, silicone coated fabric is easy to fabricate. With coating, there is no fraying on the cutting edges. This high temp glass fabric is able to be resist 550℃ continuous heat. Silicone coating can withstand heat below 260℃. Application includes fire blanket, curtains, welding splasher protection, pipe&pump insulation cover, etc.


Specification

Item Silicone Coated Fiberglass Fabric
Yarn E-glass
Weave Satin
Count 8/6
Total Weight 1050g/m2, 31oz
Thickness 0.85mm
Width 1000mm
Roll Length 50m
Temperature

Fiberglass Cloth ≤ 550℃
Silicone ≤ 260℃


Features


  • Abrasion resistance
  • Durable, flexible
  • Anti moisture, oil&chemical agents
  • Low smoke emission
  • Chemical resistance
  • Electrical insulation


Application


  1. Energy thermal insulation
  2. Welding sparks blanket
  3. Smoke curtains
  4. Fireproof blanket
  5. Removable heat insulation jacket
  6. Pipe, valves insulation cover


Pictures

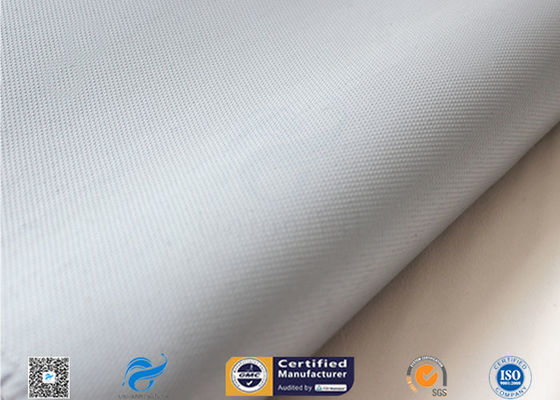

Thermal Insulation Materials 31OZ 0.85MM Grey Silicone Coated Fiberglass FabricThermal Insulation Materials 31OZ 0.85MM Grey Silicone Coated Fiberglass Fabric
