580gsm 260℃ Fiberglass Cloth Thermal Insulation Jacket Fabric Silicone Coated

580gsm 260℃ Fiberglass Cloth Thermal Insulation Jacket Fabric Silicone Coated
580gsm 260℃ Fiberglass Cloth Thermal Insulation Jacket Fabric Silicone Coated 580gsm 260℃ Fiberglass Cloth Thermal Insulation Jacket Fabric Silicone Coated 580gsm 260℃ Fiberglass Cloth Thermal Insulation Jacket Fabric Silicone Coated 580gsm 260℃ Fiberglass Cloth Thermal Insulation Jacket Fabric Silicone Coated 580gsm 260℃ Fiberglass Cloth Thermal Insulation Jacket Fabric Silicone Coated 580gsm 260℃ Fiberglass Cloth Thermal Insulation Jacket Fabric Silicone Coated 580gsm 260℃ Fiberglass Cloth Thermal Insulation Jacket Fabric Silicone Coated 580gsm 260℃ Fiberglass Cloth Thermal Insulation Jacket Fabric Silicone Coated 580gsm 260℃ Fiberglass Cloth Thermal Insulation Jacket Fabric Silicone Coated 580gsm 260℃ Fiberglass Cloth Thermal Insulation Jacket Fabric Silicone Coated 580gsm 260℃ Fiberglass Cloth Thermal Insulation Jacket Fabric Silicone Coated 580gsm 260℃ Fiberglass Cloth Thermal Insulation Jacket Fabric Silicone Coated
Basic Information
Place of Origin: China
Brand Name: Unionfull
Certification: ISO9001:2008, SGS
Model Number: UPSE-8732D150
Minimum Order Quantity: 200 Meters
Price: $2.8 - 5 / Square Meter
Packaging Details: 50m/ roll in poly bag, carton
Delivery Time: 15 working days receiving payment
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 45,000 m2 per day
Get Best Price Contact Now
Base: 430gsm Fiberglass Coating: Silicone
Weight: 580gsm Color: Red
Thickness: 0.45mm Width: 39 Inches
Highlight:

thermal insulation covers

,

thermal insulation jackets

580gsm 260℃ Silicone Coated Fiberglass Cloth Thermal Insulation Jacket Fabric


Silicone coated fiberglass fabric is a common used material for removable thermal insulation jackets production. 2 layers silicone fiberglass fabric, between them will fiberglass needle mat. So it is a sandwich design. The surface silicone fiberglass material is heat resistance and fire resistance. It is made of basic cloth - 430g/m2 fiberglass fabric woven in satin weave and then coated with grey or red color silicone/rubber on two sides. Coating is usually 40/40, 60/60, 75/75, 100/100. For this 0.45mm, totally weight is 580g/m2 based on the 75/75 coating.



Fiberglass fabric is fire resistant and high tensile strength. And silicone coating improves its abrasion resistance, electrical insulation and chemical resistance. And for its fire resistance, fiberglass fabric is able to resist 550℃ (1022℉), coating can withstand 260℃ (550℉) continuously. But the coating is also electrical insulation, so this fabric is suitable for electrical equipment protection cover.





Specification:

Item Silicone Coated Fiberglass Fabric
Material Fiberglass
Basic Cloth 430gsm
Weave Satin
Thread Count (Ends/CM) 20/11
Total Weight 580g/m2
Thickness 0.45mm
Width 100cm
Work Temperature

Silicone below 260℃

Fiberglas cloth below 550℃


Features:


  • Heat insulation
  • Fire resistance
  • Electrical insulation
  • High tensile strength
  • Tear resistance
  • Chemical corrosion resistance


Application:



  1. Fire blanket
  2. Smoke screen
  3. Fire curatin in hot tunnel
  4. Fabric expansion joint
  5. Heat insulation in Auto field
  6. Aerospace application

Pictures:

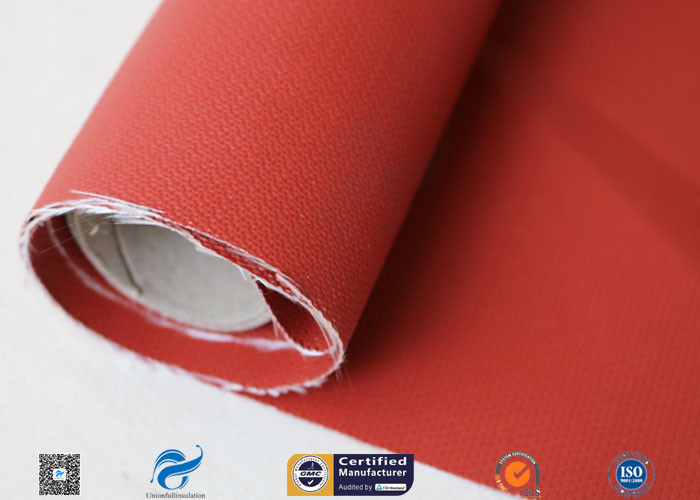

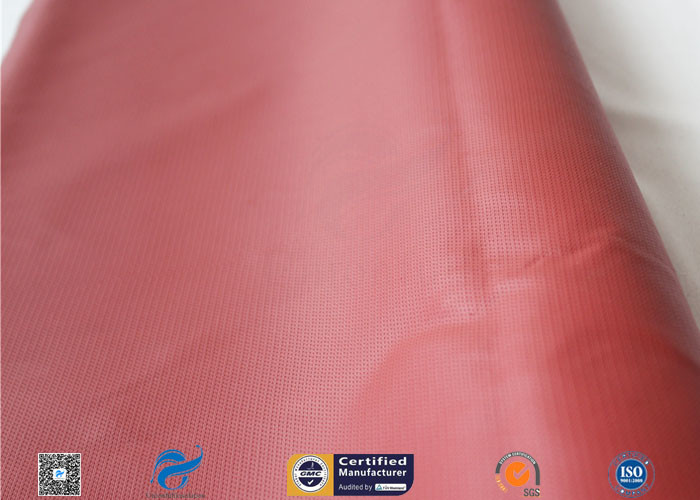

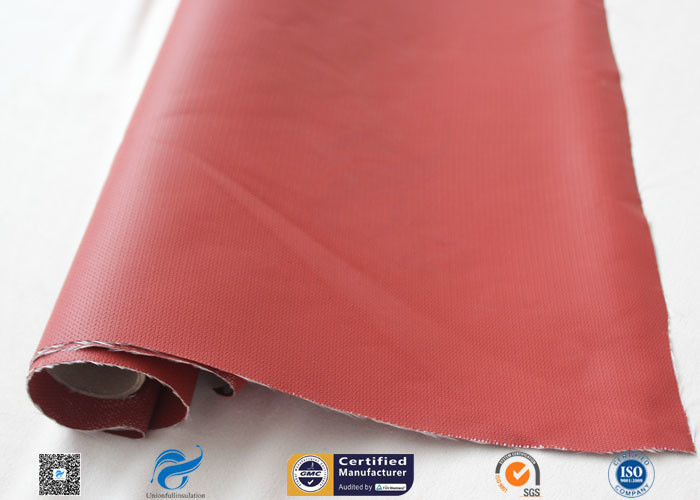

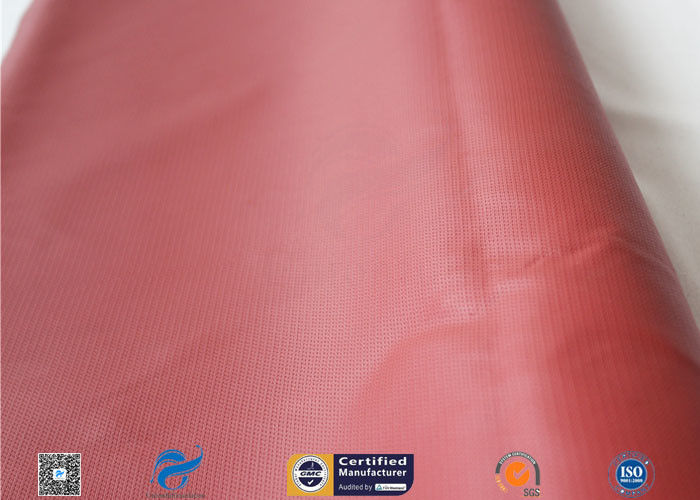

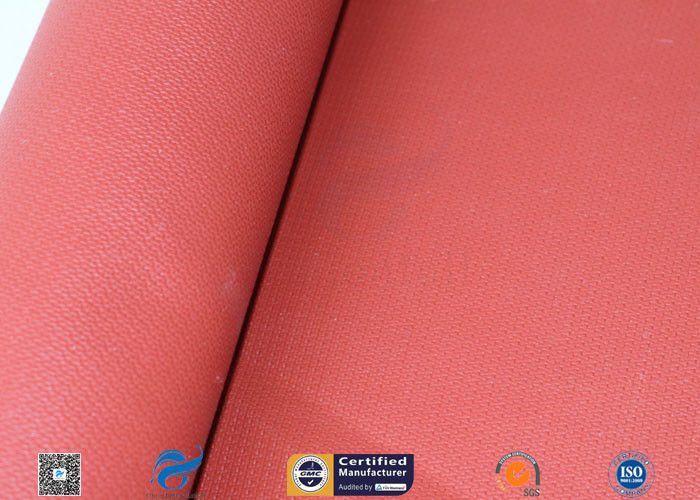

580gsm 260℃ Fiberglass Cloth Thermal Insulation Jacket Fabric Silicone Coated 0580gsm 260℃ Fiberglass Cloth Thermal Insulation Jacket Fabric Silicone Coated 1
