0.45mm Black Silicone Coated Thermal Insulation Fiberglass Fabric 8H Satin Weave

Good quality Thermal Insulation Materials for sales
Good quality Thermal Insulation Materials for sales
Satisfied with your Quality and service,I will introduce some my partners to you for cooperation

—— Christian Juchem(Brazil)

نحن جد المسرور في التعاون مع الشركة jotex.علشان لديهم عدة المميزات سواء من ناحية جودة المنتجات أو موعد تسليم البضائع و هم يراعون في مصلحات الزبائن دا

—— Amjad Iqbal Syed(UAE)

You are very persistent….

—— Gloria Reed(USA)

I'm Online Chat Now

0.45mm Black Silicone Coated Thermal Insulation Fiberglass Fabric 8H Satin Weave

China 0.45mm Black Silicone Coated Thermal Insulation Fiberglass Fabric 8H Satin Weave supplier
0.45mm Black Silicone Coated Thermal Insulation Fiberglass Fabric 8H Satin Weave supplier 0.45mm Black Silicone Coated Thermal Insulation Fiberglass Fabric 8H Satin Weave supplier 0.45mm Black Silicone Coated Thermal Insulation Fiberglass Fabric 8H Satin Weave supplier 0.45mm Black Silicone Coated Thermal Insulation Fiberglass Fabric 8H Satin Weave supplier

Large Image :  0.45mm Black Silicone Coated Thermal Insulation Fiberglass Fabric 8H Satin Weave

Product Details:

Place of Origin: China
Brand Name: Unionfull
Certification: ISO9001:2008, SGS
Model Number: UPSE-8732S40

Payment & Shipping Terms:

Minimum Order Quantity: 500 Meters
Price: $2.5-3.5/ Square Meter
Packaging Details: 50 meters per roll with poly bag
Delivery Time: 15 Working Days After Receiving Payment
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 50000 square meters per day
Contact Now
Detailed Product Description
Base Cloth: 3732 Fiberglass Fabric Surface: Silicone
Total Thickness: 0.45mm Weight: 470g/m2
Width: 100cm Weave: 8H Satin

0.45mm Black Silicone Coated Fiberglass Fabric Thermal Insulation Materials



Silicone coated fiberglass fabric is made of alkali-free E-glass fiberglass yarns which is coated with 40g/m2 black silicone on its single side. The glass yarns woven into the basic fabric is in a filament diameter of 9 µm. This rubber coating fiberglass fabric is flexible, tear resistant and thermal insulation. Coated fiberglass fabric combines the high strength of fiber glass cloth and abrasion resistance of silicone coating, which makes the silicoen coated fiberglass cloth with dimension stablity, high strength, electrical insulation and chemical insulation.



The base cloth 3732 can resist high temperature below 550℃. And the silicone coating can withstand below 260 degree Celsius. And base on the features of silicone coating and base fiberglass cloth, this silicone coated fiberglass cloth are mainly used for thermal insulation and electrical insulation. It can be used for producing fire blankets/curtains, thermal insulation gloves, fabric duct connection, expansion joints, thermal insulation exhaust jackets for pump/generator and other fire fighting equipments.




Specification Of UPSE-8732S40:

Item Silicone Coated Fiberglass Fabric
Material E-glass Fiber Glass
Weave 8H Satin
Warp Density 20 Ends/CM
Weft Density 11 Ends/CM
Mass Per Unit 470g/m2(430+40)
Coating Black silicone
Thickness 0.45mm
Width 100cm
Working Temperature

Silicone Coating below 260℃


Features:



  • Heat insulation
  • Chemical acid and alkali resistant
  • Waterproof, oil resistant
  • Stable properties
  • Durablity
  • Abrasion resistance
  • Electric insulation
  • Withstanding -50℃ to 260


Application:



This 0.45mm silicone coated cloth is suitable for fire/smoke protection and thermal/acoustic insulation.



  • Heat/electrical insulation jacket
  • Automotive heat protection
  • Welding blanket, spark protection
  • Shipbuilding cover
  • Construction electrical protection cover

Pictures:

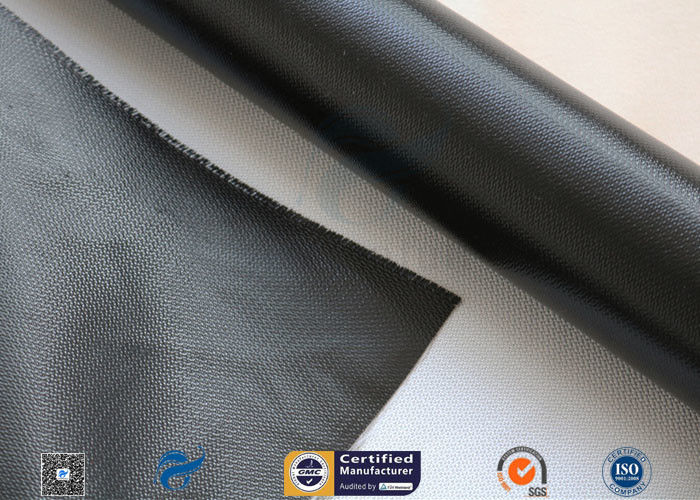

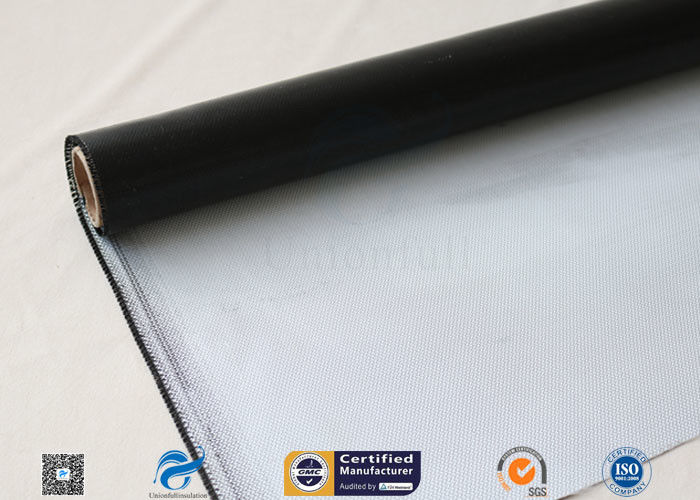

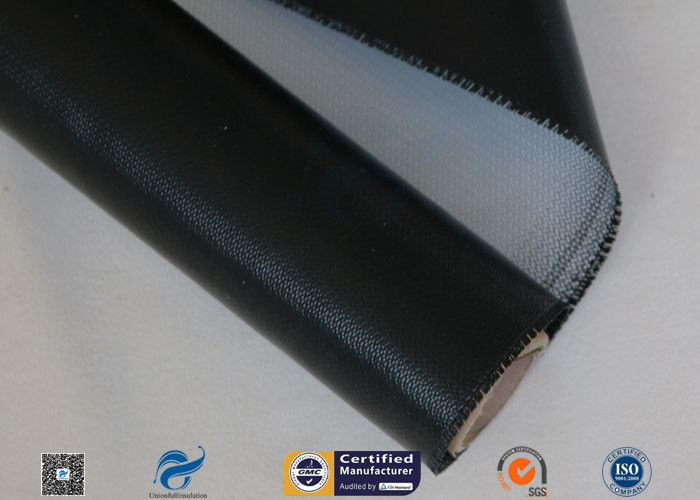

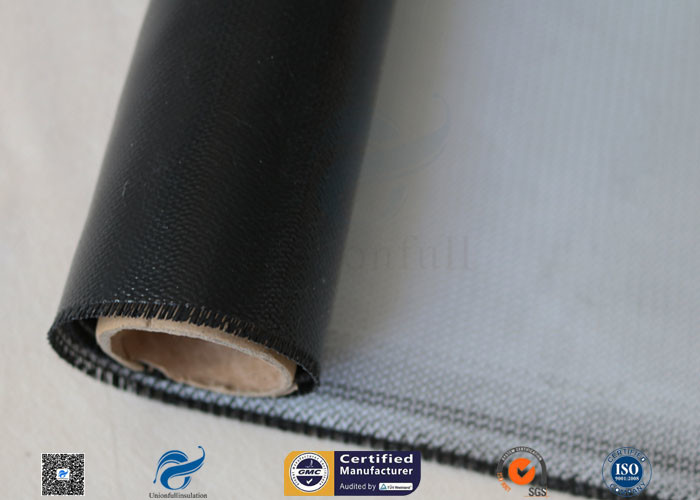

0.45mm Black Silicone Coated Thermal Insulation Fiberglass Fabric 8H Satin Weave
