Unionfull® China Thermal Insulation Products Supplier | Thermal Materials - High Silica Cloth - Thermal Insulating Fiberglass Fabrics
| Place of Origin: | China |
|---|---|
| Brand Name: | Unionfull |
| Certification: | ISO9001:2008; SGS;TUV |
| Model Number: | JT8389AR-D45-100 |
| Minimum Order Quantity: | 500 Meters |
| Price: | $1.8--$2.30/square meter |
| Packaging Details: | One roll in poly bag |
| Delivery Time: | 15 Working days after payment |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union |
| Supply Ability: | 30000 square meters per day |
| Base Cloth: | 2523 Fiberglass Fabric | Total Weight: | 480g/m2 |
|---|---|---|---|
| Thickness: | 0.45mm | Width: | 100cm |
| Yarn Type: | E-glass | Weave Type: | Plain |
| High Light: | fire resistant blanket,fire protection blanket |
||

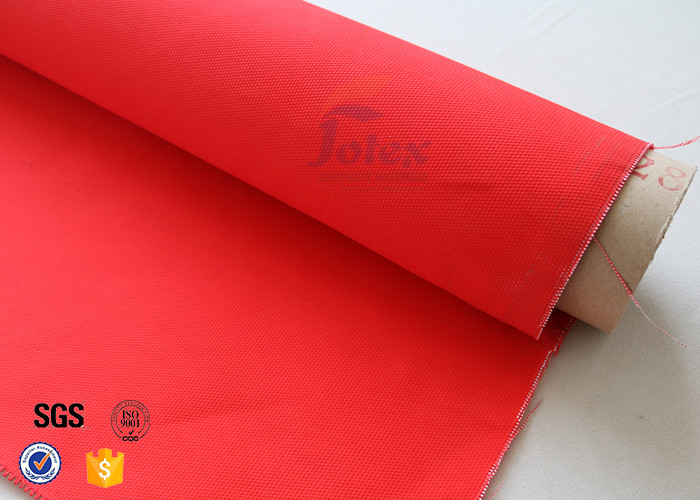

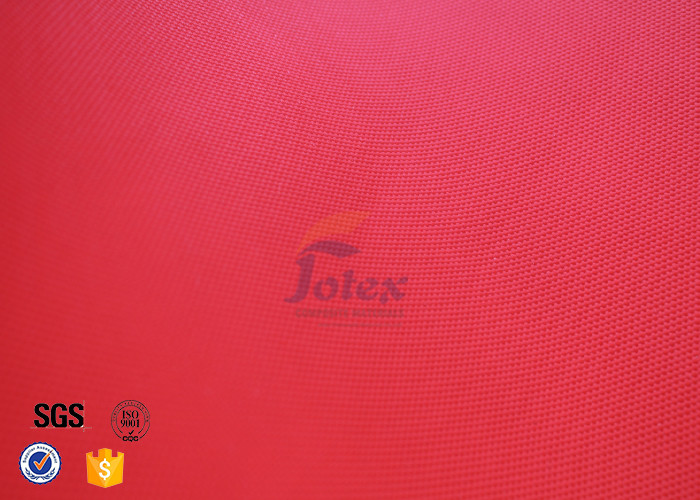

2523 Red Acrylic Coated Fiberglass Fabric Industrial Fire Blanket / Curtain
Fiberglass fabric is an excellent and eco-friendly materials for fire resistance. For fire blanket peoduction, it needs coating on one side or both two sides to meet different requirement. The basic cloth of this red acrylic coated fire blanket is 389g/m2, 0.4mm 2523 fiberglass cloth. With 45g/m2 red Acrylic coating on both sides, the total weight will be 480g/m2, and total thickness is 0.45mm.
This 0.45 acrylic industrial compounded coated e-glass fiber glass cloth is always used for fire blanket. The coated fabric can withstand 260℃ continuously. The basic fabric can be used below 550℃.
Coated glass fiber fabric combines the great properties of coating and glass fiber, the acrylic coated fiberglass fabric owns features such as chemical resistance, abrasion corrosion resistance, high tensile strength, durablity and electrical insulation.
Specification of JT8389AR-D45-100
| Item |
Acrylic Coated Fiberglass Fabric |
| Total weight | 480 g/m2 |
| Thickness | 0.45 mm |
| Color | Red |
| Temperature |
Coating: -50℃ to +260℃ |
| Coating | Acrylic Coating On Both Sides |
| Width | 100cm |
Features:
Application:
About The Basic Cloth 2523 Fiberglass Fabric:
|
Fabric Style |
Weave |
Weight (oz/sq.yd.) |
Thickness (mm) |
Count | Yarn Warp | Yarn Weft |
Break Strength (lbs/inch of width) |
| 2523 | Plain | 11.47 | 0.35 | 28/20 | ECH 25 1/0 | ECH 25 1/0 | 510/390 |
