560gsm 4x4mm PTFE Coated Fiberglass Open Mesh For Tortilla Conveyor Belt

China 560gsm 4x4mm PTFE Coated Fiberglass Open Mesh For Tortilla Conveyor Belt supplier
560gsm 4x4mm PTFE Coated Fiberglass Open Mesh For Tortilla Conveyor Belt supplier 560gsm 4x4mm PTFE Coated Fiberglass Open Mesh For Tortilla Conveyor Belt supplier 560gsm 4x4mm PTFE Coated Fiberglass Open Mesh For Tortilla Conveyor Belt supplier 560gsm 4x4mm PTFE Coated Fiberglass Open Mesh For Tortilla Conveyor Belt supplier

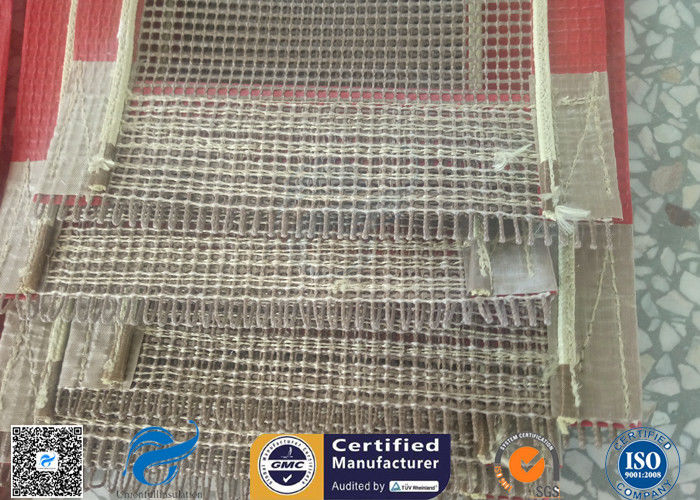

Large Image :  560gsm 4x4mm PTFE Coated Fiberglass Open Mesh For Tortilla Conveyor Belt

Product Details:

Place of Origin: Zhejiang, China
Brand Name: Unionfull
Certification: ISO9001:2008, SGS; FDA
Model Number: JT8560TB-65-190

Payment & Shipping Terms:

Minimum Order Quantity: 500 Meters
Price: $4.25--8/Square Meter
Packaging Details: 50 meters/roll, 1 roll with woven bag, 20 rolls per box
Delivery Time: 10 Days
Payment Terms: L/C, D/P, T/T, Western Union, D/A
Supply Ability: 200000 Square Meters Per Day
Contact Now
Detailed Product Description
Mesh Size: 4x4mm Weight: 560g/m2
Thickness: 1mm Width: 400cm
Temperature: -70 To 260 ℃ Color: Brown
Joint: Bull Nose Jont, Alligator Joint Application: Woven Wire Mesh; Conveyor Belt

560gsm 4x4mm PTFE Coated Fiberglass Open Mesh For Tortilla Conveyor Belt



PTFE coated tortilla conveyor belt is made from high strength fiberglass mesh fabric and non-stick and heat resistant PTFE . This material is ideal conventional belting materials and it is widely used for industrial conveyor applications. Its working temperature for dimensionally stable from -73° to +260°C (-100° to +550°F),



Food grade PTFE coating of this mesh belt is non-toxic, tasteless and odorless when heating it. It is FDA approved for food processing and packaging. Besides, PTFE belts provides durability and low elongation.



Common Specification



Size Materials Thickness Weight Temperature Width(max) Tensile Strength
1x 0.5mm Fiberglass 0.65mm 560g /m 2 -70 -260 ℃ 3.25m 310/290 N/cm
1x 1mm Fiberglass 0.65mm 520g /m 2 -70 -260 ℃ 3.55m 310/290 N/cm
2x 2.5mm Fiberglass 0.7mm 640g /m 2 -70 -260 ℃ 3.65m 350/310 N/cm
4x 4mm Fiberglass 1.0mm 580g /m 2 -70 -260 ℃ 4.2m 390/320 N/cm
4x 4mm Fiberglass 1.3mm 740g /m 2 -70 -260 ℃ 3.85m 390/320 N/cm
10x 10mm Fiberglass 0.9mm 415g /m 2 -70 -260 ℃ 3.55m 360/300 N/cm
4x 4mm Kevlar+Fiberglass 1.5mm 934g /m 2 -70 -260 ℃ 2.75m 895/370 N/cm
4x 4mm Kevlar 1.2mm 600g /m 2 -70 -260 ℃ 4m 895/370 N/cm



Above are some common specifications. If you need customerized size, please contact for more details. Please also inform if you need edge and joint.



Various types of edging:

  • Heat-sealed and sewn, PTFE-coated fabric reinforcement
  • Sewn only
  • Heat-sealed PTFE film edging
  • Silicone edging (made to order)



BELT TRACKING / GUIDING TYPES


A guiding system is important for PTFE mesh belts application. Guiding edge may be by external guiding systems or by combining a system in the belt construction, such as metal studs, PTFE pins or eyelets. Edge guiding prolongs the working life of conveyor belt by preventing edge damage because of incorrect tracking.



  • Stud Guides  Edge
  • Kevlar Guides Edge
  • PTFE Pin Guides Edge
  • Metal Eyelets Edge


Features:

  1. Non-stick PTFE coating
  2. Food grade, non toxic odorless under heating
  3. High strength and long working life
  4. Dimensional stability
  5. Chemical resistant
  6. Used under a temperature range from -100°F to +550°F



Applications:



  • Contact grill belts, food processing belts
  • Tortilla press belts, Textile dryer belts
  • Printing dryer belts
  • Shrink packaging tunnel belts
  • Printing dryers
  • Lamination belts
  • Other industrial belts

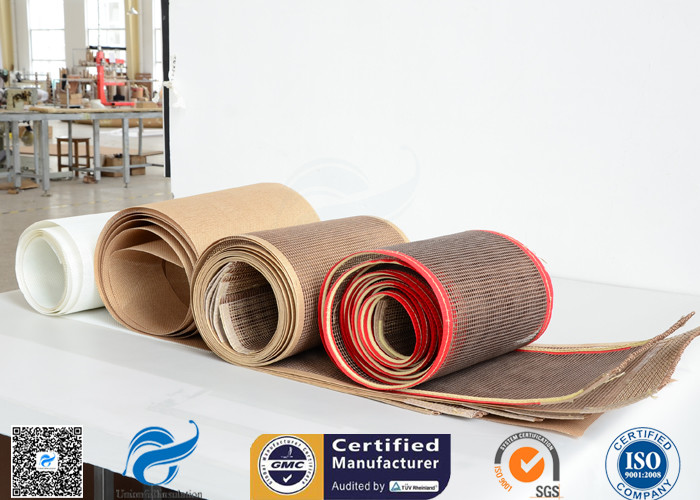

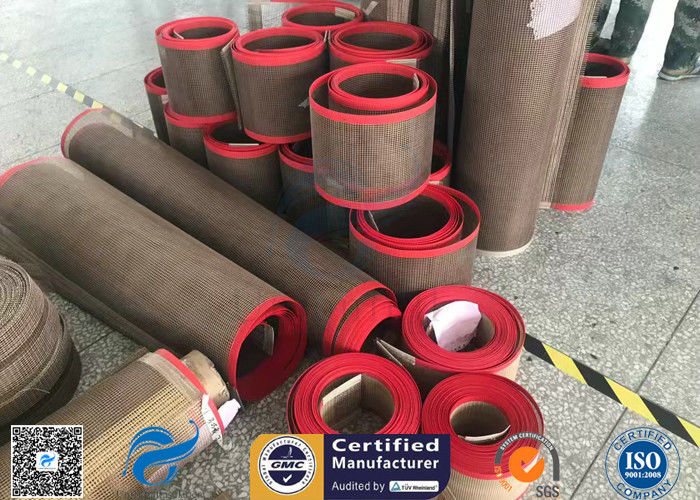

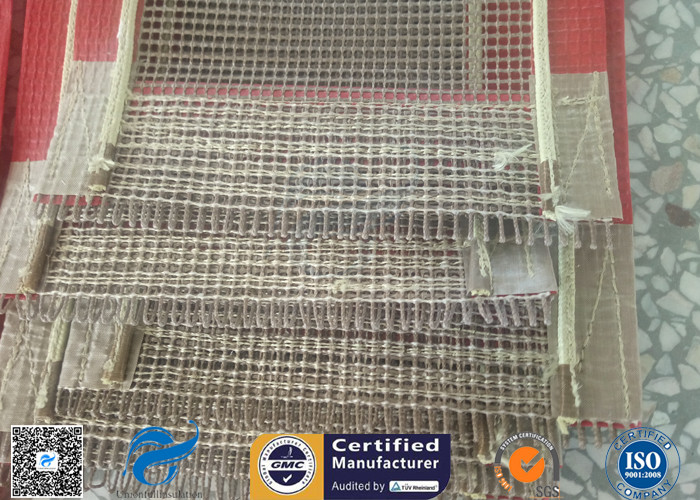

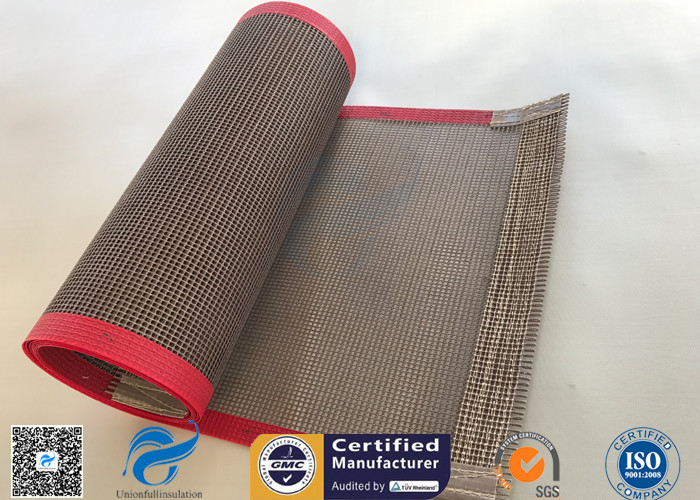

Picture:





560gsm 4x4mm PTFE Coated Fiberglass Open Mesh For Tortilla Conveyor Belt

560gsm 4x4mm PTFE Coated Fiberglass Open Mesh For Tortilla Conveyor Belt560gsm 4x4mm PTFE Coated Fiberglass Open Mesh For Tortilla Conveyor Belt
