| Place of Origin: | China |
|---|---|
| Brand Name: | Unionfull |
| Certification: | ISO9001:2008,SGS,TUV |
| Model Number: | UPTM-8090 |
| Minimum Order Quantity: | 100m |
| Price: | USD4.6~10 / Sqaure Meter |
| Packaging Details: | one roll in poly bag, carton |
| Delivery Time: | 2 weeks after receiving the payment |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union |
| Supply Ability: | 40,000 Square Meters Per Day |
| Keywords: | High Temperature Resistant | Type: | Dryer Conveyor Belt |
|---|---|---|---|
| Material: | Fiberglass | Alkali Content: | Alkali Free |
| Weight: | 480g/m2 | Tensile Strength: | 390/320N/5cm |
| Feature: | Non-Stick | Temperature Resistant: | -70~+260℃ |
| High Light: | Fiberglass Mesh Conveyor Belt,PTFE Coated Mesh Conveyor Belt,4x4mm Ptfe Fiberglass Fabric |
||

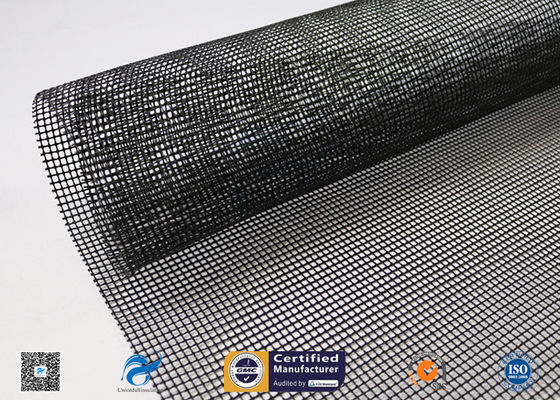

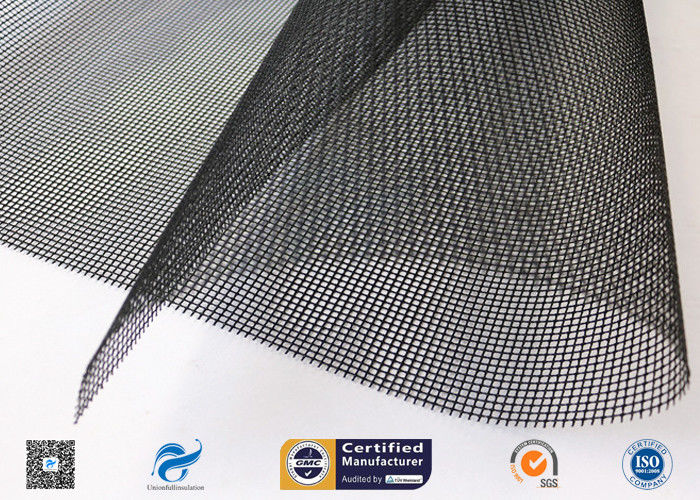

4*4mm PTFE Coated Fiberglass Mesh Conveyor Belt For Industry Machine
Product Introduction
PTFE mesh conveyor belt is immersed in suspended polytetrafluoroethylene (commonly known as plastic king) emulsion in the high quality glass cloth, is a high performance, multi-functional new composite products, due to its excellent performance, polytetrafluoroethylene mesh conveyor belt is widely used in various occasions. Fields include paper, food manufacturing, environmental protection industry, printing and dyeing, garment industry, chemical industry, glass manufacturing, medicine, electronics, insulation, wheel slicing, machinery, etc.
Product Specification
| Materials | PTFE coated fiberglass mesh |
| Thickness | 1mm |
| Max Width | 4200mm |
| Mesh Size | 4*4mm |
| Weight | 480g/m2 |
| Tensile Strength | 2100/1500N/5cm |
Features
1. High temperature resistance, can work continuously at 70 ~ 260 ℃.
2. Air permeability-good air permeability, avoid wasting heat and improve drying efficiency.
3. Chemical resistance-Resistant to most chemicals.
4. Adhesion resistance: It can easily remove various adhesives such as resin, paint, and chemicals.
5. Good bending fatigue resistance: high tensile strength, good bending fatigue resistance, suitable for small wheels.
Application
1. The dryer is suitable for non-woven fabrics, textile printing and dyeing, and screen printing machines.
2. Suitable for clothing fabric shrinking machine, high frequency dryer, UV dryer.
3. The conveyor belt is used for hot air drying, various food baking, and quick freezing machines.
4. Paper glazing and oiling machine, factory engineering.
5. Used in the production of cardboard.
Pictures
