0.18mm PTFE Coated Fiberglass Fabric High Temperature Resistant

China 0.18mm PTFE Coated Fiberglass Fabric High Temperature Resistant supplier
0.18mm PTFE Coated Fiberglass Fabric High Temperature Resistant supplier 0.18mm PTFE Coated Fiberglass Fabric High Temperature Resistant supplier 0.18mm PTFE Coated Fiberglass Fabric High Temperature Resistant supplier 0.18mm PTFE Coated Fiberglass Fabric High Temperature Resistant supplier

Large Image :  0.18mm PTFE Coated Fiberglass Fabric High Temperature Resistant

Product Details:

Place of Origin: China
Brand Name: Unionfull
Certification: ISO9001:2008,SGS,FDA
Model Number: UPTB-8018

Payment & Shipping Terms:

Minimum Order Quantity: 100m
Price: $3.65~4.75/m2
Packaging Details: 50 meters/roll,1 roll with 1 polybag
Delivery Time: 15 days after receiving the payment
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 6000 Square Meters Per Day
Contact Now
Detailed Product Description
Weave Type: Plain Woven Yarn Type: E-Glass
Weight: 380g/m2 Thickness: 0.18mm
Color: Black Coating: PTFE Coated
Standing Temperature: -70℃~ 260℃ Good Features: High Temperature Resistance

0.18mm PTFE Coated Fiberglass Fabric High Temperature Resistant



Product Introduction



PTFE coated fiberglass fabric is an emulsion made by soaking a suspension (commonly known as plastic king) with high-quality glass cloth. Is a high-performance, multi-functional new composite product. Because of its excellent performance, PTFE coated fiberglass fabric is widely used in different fields, including papermaking, food manufacturing, environmental protection industry, printing and dyeing, clothing industry, chemical industry, glass manufacturing, medicine, electronics, insulation, wheel cutting, mechanism and so on.



Product Specification



PTFE Coated Fiberglass Cloth
Base Cloth Fiberglass Cloth
Thickness 0.18mm (Can be customized)
Color Black
Coating Two sides PTFE coating
Weight 380g/m2
Standard Width 1000mm
Length 50m
Temperature -70℃ to 260℃



Features



1. Excellent dimensional stability, mechanical properties and high tensile strength, elongation coefficient less than 5%.

2. Good temperature resistance, can work continuously at -70-260 ℃

3. Low surface friction coefficient (0.05- 0.1), high insulation performance.

4. Non-sticky and easy to clean: all stains and grease are easily cleaned.

5. Corrosion resistance: it can be used in different chemical environments.

6. Resistance to corrosion of almost all drugs.



Application



1. Various high temperature resistant bushings, such as microwave oven bushings, oven bushings or other bushings

2. Non-liner. Intermediate

3. Various kinds of conveyor belts, fusion belts, sealing belts or any place that needs high temperature resistance and non-stickinessResistant to chemical corrosion, etc.

4. Covering materials or packaging materials in petroleum and chemical industries, such as packaging materials, insulation materials in electrical and other industries, high temperature resistant materials, desulfurization materials in power plants, etc.

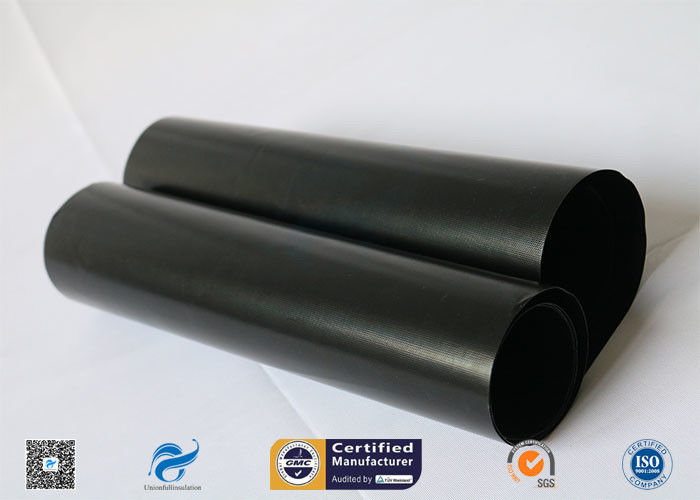

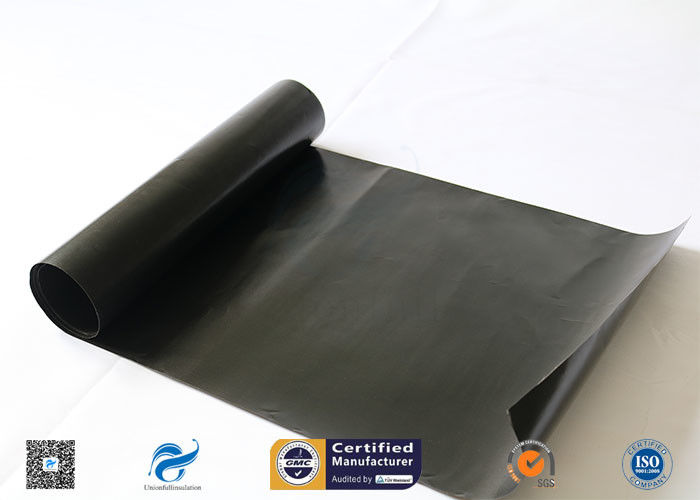

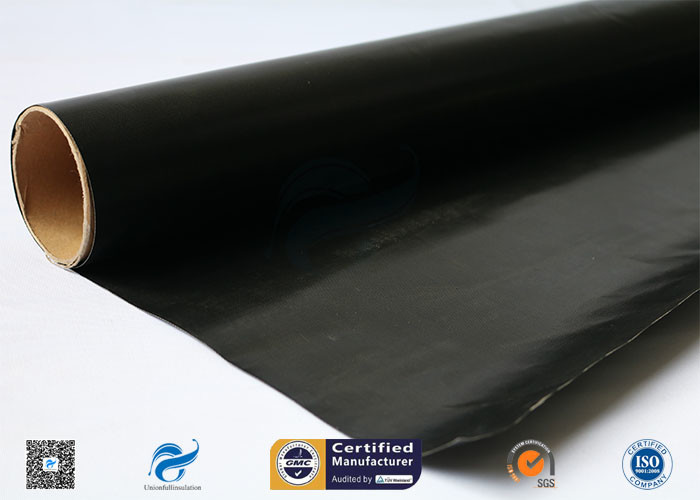

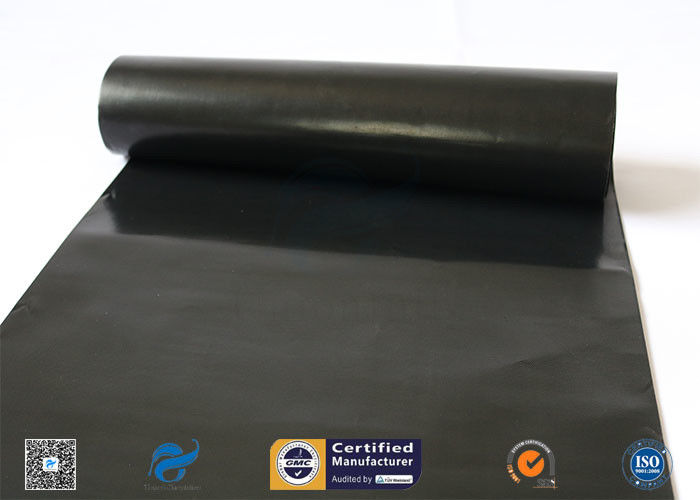

Pictures



0.18mm PTFE Coated Fiberglass Fabric High Temperature Resistant



0.18mm PTFE Coated Fiberglass Fabric High Temperature Resistant
