Unionfull® China Thermal Insulation Products Supplier | Thermal Materials - High Silica Cloth - Thermal Insulating Fiberglass Fabrics
| Place of Origin: | Zhejiang, China |
|---|---|
| Brand Name: | Unionfull |
| Certification: | ISO9001:2008, SGS; FDA |
| Model Number: | JT8560TB-65-190 |
| Minimum Order Quantity: | 500 Meters |
| Price: | $4.25--8/Square Meter |
| Packaging Details: | 50 meters/roll, 1 roll with woven bag, 20 rolls per box |
| Delivery Time: | 10 Days |
| Payment Terms: | L/C, D/P, T/T, Western Union, D/A |
| Supply Ability: | 200000 Square Meters Per Day |
| Mesh Size: | 1x1mm--10x10mm | Weight: | 400g/m2--900g/m2 |
|---|---|---|---|
| Thickness: | 0.65mm--1.5mm | Width: | 190cm |
| Temperature: | -70 To 260 ℃ | Color: | Brown, Black |
| Joint: | Bull Nose Jont, Alligator Joint | Application: | Woven Wire Mesh; Conveyor Belt |
| High Light: | ptfe coated glass fibre fabric,ptfe coated fiberglass cloth |
||

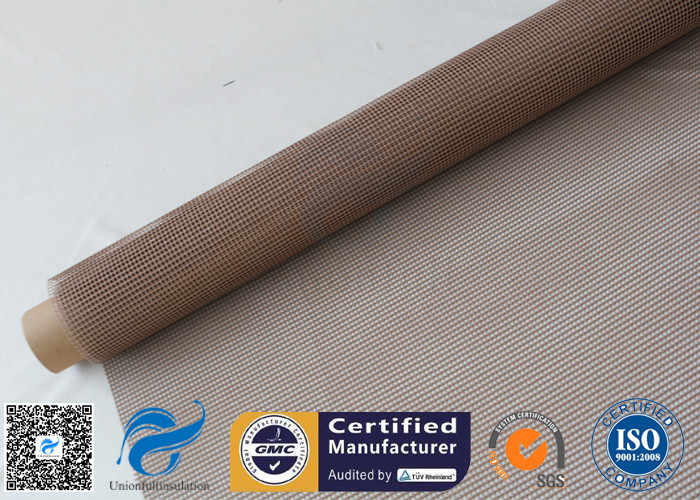

Brown 4x4mm PTFE Coated Fiberglass Open Mesh For Conveyor Belt
PTFE coated fiberglass mesh fabric combines the non-stick feature and heat insulation of PTFE with the high strength and dimensional stability of fiberglass mesh fabric. This materials are more practical and cost-effective than conventional belting materials for industrial conveyor applications. Dimensionally stable from -73° to +260°C (-100° to +550°F),
Food grade PTFE coated mesh belts are non-toxic, tasteless odorless. It is FDA compliant (21 CFR 177.1550) for food processing and packaging. What's more, PTFE belts offer exceptional durability and extremely low elongation.
Common Specification
| Size | Materials | Thickness | Weight | Temperature | Width(max) | Tensile Strength |
| 1x 0.5mm | Fiberglass | 0.65mm | 560g /m 2 | -70 -260 ℃ | 3.25m | 310/290 N/cm |
| 1x 1mm | Fiberglass | 0.65mm | 520g /m 2 | -70 -260 ℃ | 3.55m | 310/290 N/cm |
| 2x 2.5mm | Fiberglass | 0.7mm | 640g /m 2 | -70 -260 ℃ | 3.65m | 350/310 N/cm |
| 4x 4mm | Fiberglass | 1.0mm | 580g /m 2 | -70 -260 ℃ | 4.2m | 390/320 N/cm |
| 4x 4mm | Fiberglass | 1.3mm | 740g /m 2 | -70 -260 ℃ | 3.85m | 390/320 N/cm |
| 10x 10mm | Fiberglass | 0.9mm | 415g /m 2 | -70 -260 ℃ | 3.55m | 360/300 N/cm |
| 4x 4mm | Kevlar+Fiberglass | 1.5mm | 934g /m 2 | -70 -260 ℃ | 2.75m | 895/370 N/cm |
| 4x 4mm | Kevlar | 1.2mm | 600g /m 2 | -70 -260 ℃ | 4m | 895/370 N/cm |
Above are some common specifications. If you need customerized size, please contact for more details. Please also inform if you need edge and joint.
Various types of edging:
Features:
Applications:
Picture:
