Orange 510g Silicone Coated Fiber Glass Cloth For Fabric Expansion Joint

China Orange 510g Silicone Coated Fiber Glass Cloth For Fabric Expansion Joint supplier
Orange 510g Silicone Coated Fiber Glass Cloth For Fabric Expansion Joint supplier Orange 510g Silicone Coated Fiber Glass Cloth For Fabric Expansion Joint supplier Orange 510g Silicone Coated Fiber Glass Cloth For Fabric Expansion Joint supplier Orange 510g Silicone Coated Fiber Glass Cloth For Fabric Expansion Joint supplier

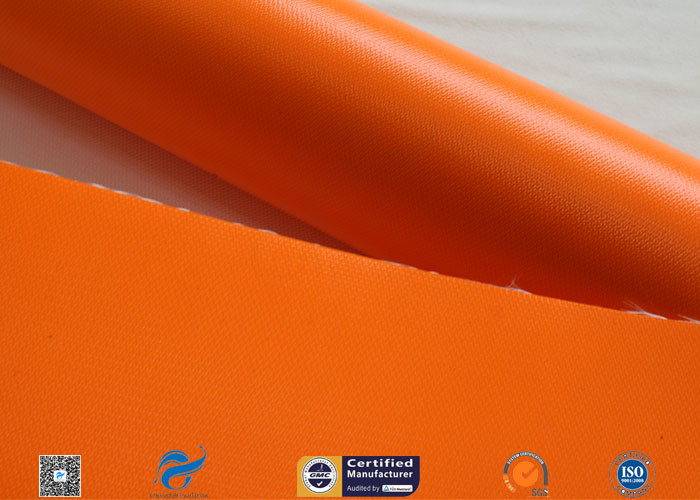

Large Image :  Orange 510g Silicone Coated Fiber Glass Cloth For Fabric Expansion Joint

Product Details:

Place of Origin: China
Brand Name: Unionfull
Certification: ISO9001:2008, SGS
Model Number: JT8430SO-S80-100

Payment & Shipping Terms:

Minimum Order Quantity: 500 Meters
Price: $2.5-3.5/ Square Meter
Packaging Details: 50 meters per roll with poly bag
Delivery Time: 15 Working Days After Receiving Payment
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 50000 square meters per day
Contact Now
Detailed Product Description
Base Cloth: 3732 430gsm Fabric Coating: Orange Silicone
Total Thickness: 0.5mm Weight: 510g/m2
Width: 100cm Weave: Satin

Orange 510g Silicone Coated Fiber Glass Cloth For Fabric Expansion Joint



Silicone rubber coated fiber glass cloth possesses the features of high temperature resistance, abrasion corrosion resistance, durablity and is coated with organic silicone rubber. It is a newly-made-product with great physical and chemical properties and multiple application because of its rich colors. Because of its special and great resistance to high-temperature, permeability and chemical agents and durability, this silicone fiberglass fabric is widely used in aerospace, chemical industry, large-scale generate electricity equipment, machinery, metallurgy, nonmetal expansion joint, etc.


This one side orange silicone coated fiberglass fabric is made of 3732 basic fiberglass fabric which is coated with 80g/m2 orange silicone/rubber agent on one side. This basic e-glass fiberglass fabric is capable of withstanding 550℃(1022℉). But the orange silicone coating can be used below 260℃(500).




Specification Of JT8430SO-S80-100:

Item Orange Silicone Coated Fiberglass Fabric
Material E-glass Fiber Glass Fabric
Coating Orange silicone, one side
Weave Satin Weave
Warp Density 20 Ends/CM
Weft Density 11 Ends/CM
Mass Per Unit 510g/m2(430+80)
Thickness 0.5mm
Width 100cm
Working Temperature

Silicone Coating below 260℃,

Fabric below 550


Features:



  • Chemical corrosion resistance
  • Abrasion resistance
  • High tensile strength
  • Electric insulation
  • Flame resistant
  • Working temperature from -50℃ to 260℃


Application:



  1. Freeze/heat insulation jacket
  2. Fire blanket/curtains
  3. Cable, pipeline, pump thermal insulation covers
  4. Fire protective products
  5. Flexible fabric ducting
  6. Fabric expansion joint
