Anti Acid 480gsm 0.45mm Fiberglass Fire Blanket Red With Acrylic Coated

Anti Acid 480gsm 0.45mm Fiberglass Fire Blanket Red With Acrylic Coated
Anti Acid 480gsm 0.45mm Fiberglass Fire Blanket Red With Acrylic Coated Anti Acid 480gsm 0.45mm Fiberglass Fire Blanket Red With Acrylic Coated Anti Acid 480gsm 0.45mm Fiberglass Fire Blanket Red With Acrylic Coated Anti Acid 480gsm 0.45mm Fiberglass Fire Blanket Red With Acrylic Coated Anti Acid 480gsm 0.45mm Fiberglass Fire Blanket Red With Acrylic Coated Anti Acid 480gsm 0.45mm Fiberglass Fire Blanket Red With Acrylic Coated Anti Acid 480gsm 0.45mm Fiberglass Fire Blanket Red With Acrylic Coated Anti Acid 480gsm 0.45mm Fiberglass Fire Blanket Red With Acrylic Coated Anti Acid 480gsm 0.45mm Fiberglass Fire Blanket Red With Acrylic Coated Anti Acid 480gsm 0.45mm Fiberglass Fire Blanket Red With Acrylic Coated Anti Acid 480gsm 0.45mm Fiberglass Fire Blanket Red With Acrylic Coated Anti Acid 480gsm 0.45mm Fiberglass Fire Blanket Red With Acrylic Coated
Basic Information
Place of Origin: China
Brand Name: Unionfull
Certification: ISO9001:2008; SGS;TUV
Model Number: JT8389AR-D45-100
Minimum Order Quantity: 500 Meters
Price: $1.8--$2.30/square meter
Packaging Details: One roll in poly bag
Delivery Time: 15 Working days after payment
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 30000 square meters per day
Get Best Price Contact Now
Base Cloth: 2523 Fabric, 389g/m2 Total Weight: 480g/m2
Thickness: 0.45mm Width: 100cm
Yarn Type: E-glass Weave Type: Plain Woven
Highlight:

fire resistant blanket

,

fire protection blanket

480gsm 0.45mm Acrylic Coated Fiberglass Fabric For Industrial Fire Blanket

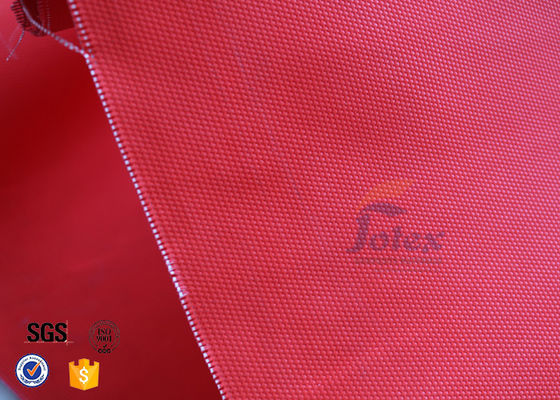

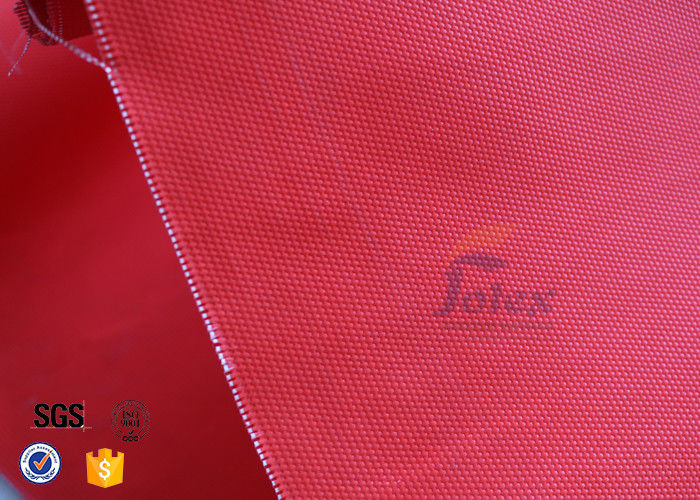

This acrylic coated fiberglass fabric is made from 2523 woven fiberglass cloth coated with red Acrylic on both two sides. This industrial compounded coated fiberglass fabric is always used for fire blanket production. The acrylic coated fiberglass fabric is totally weighed at 480g/m2. And the basic cloth is 389g/m2 and 0.4mm thick 2523 fiberglass fabric. After coating with 45g/m2 red Acrylic on both sides, the total weight per unit area is 480gsm, and total thickness is 0.45mm.



Acrylic coated fabric combines the great properties of coating and fiberglass fabric: the chemical resistance/abrasion resistance of Acrylic coating and durablity of fiberglass fabric. This coated cloth is electrical insulation, fire resistant, thermal insulation, light weight and oil/chemical proof.



Specification of JT8389AR-D45-100



Item

Acrylic Coated Fiberglass Fabric
Total weight 480 g/m2
Thickness 0.45 mm
Color Red
Temperature

Coating: -50℃ to +260℃
Coating Acrylic Coating On Both Sides
Width 100cm





Features:



  1. Acrylic coating on both two sides
  2. Acrylic coating can withstand a temperature of 260℃, fiberglass can be used below 550℃
  3. Anti acids and alkali, anti chemical agents
  4. High tensile strength
  5. Coating will not peel off after heating



Application:



  • Welding/Fire blankets
  • Industries protective wear
  • Metal processing
  • Thermal insulation cover
  • Electrical insulation cover
  • Flexible air ducting
  • Heat insulation jackers











About The Basic Cloth 2523 Fiberglass Fabric:



Fabric

Style

 Weave

Weight

(oz/sq.yd.)

Thickness

(mm)

 Count Yarn Warp Yarn Weft

Break Strength

(lbs/inch of width)
2523 Plain 11.47 0.35 28/20 ECH 25 1/0 ECH 25 1/0 510/390





Tag:

fire protection blanket,

fire resistant blanket,

fire retardant blanket
