Satin Weave 600gsm 800℃ Fiberglass High Silica Fabric For Heat Insulation

China Satin Weave 600gsm 800℃ Fiberglass High Silica Fabric For Heat Insulation supplier
Satin Weave 600gsm 800℃ Fiberglass High Silica Fabric For Heat Insulation supplier Satin Weave 600gsm 800℃ Fiberglass High Silica Fabric For Heat Insulation supplier Satin Weave 600gsm 800℃ Fiberglass High Silica Fabric For Heat Insulation supplier Satin Weave 600gsm 800℃ Fiberglass High Silica Fabric For Heat Insulation supplier

Large Image :  Satin Weave 600gsm 800℃ Fiberglass High Silica Fabric For Heat Insulation

Product Details:

Place of Origin: China
Brand Name: Unionfull
Certification: ISO9001:2008, SGS;TUV
Model Number: UPH-860

Payment & Shipping Terms:

Minimum Order Quantity: 300 Meters
Price: $6.58---$6.88/m2
Packaging Details: Carton box or woven bag
Delivery Time: 16 Working Days After Payment
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 10000 Square Meters Per Day
Contact Now
Detailed Product Description
Cloth Type: Silica Cloth Weight: 600g/m2
Thickness: 0.7mm Weave: Satin 8HS
SiO2: ≥96% Temperature: ≤800℃



Satin Weave 600gsm 800℃ Fiberglass High Silica Cloth For Heat Insulation



High silica cloth is High purity silicon oxide amorphous continuous fiber fabric(with more than 96% SiO2 content.). It is woven from e-glass fiber glass yarns. Then the acid treatment and calcination techniques make the glass fiber fabric with higher softening point and higher density. Its softening point is close to 1300℃ and it can withstand a temperature below 800℃ continuously. High silica cloth is an ideal high temperature fire resistant fabric with many properties such as chemical resistance, stable chemical property, flexiblity, abrasion resistance and electrical insulation. It is widely used for industrial thermal insulation.

This 600g/m2 high silica cloth is 0.7mm. Count per cm is 18/13. Weave type is 8 harness satin weave. There is a seven-by-one interfacing where one weft yarn floats over seven warp yarns and under one in this weave. 1200g 1.3mm high silica cloth is 12HS weave.



Data Sheet Of UPH-860:



Items Weight Thickness Weave

Count

(CM)

Width Temperature
UPH-860 600g/m2 ± 30 0.7mm±0.05 8HS 18/13 91.44cm ≤ 800°C


Features:


  • Abrasion resistant
  • Electrical insulation
  • Chemical, phisical properties stablity
  • High temperature heat resistant
  • Durable and tear resistant
  • Eco friendly, no pollution after burning


Application:


  1. Cutting protection
  2. Welding spatter protection
  3. Aerospace, nuclear thermal insulation
  4. Machinery industry protection

  5. Oil & gas field heat insulation cover

  6. Metallurgy, auto industry



Pictures:

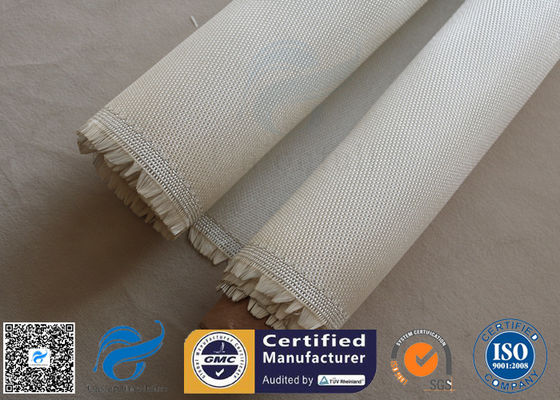

Satin Weave 600gsm 800℃ Fiberglass High Silica Fabric For Heat Insulation
