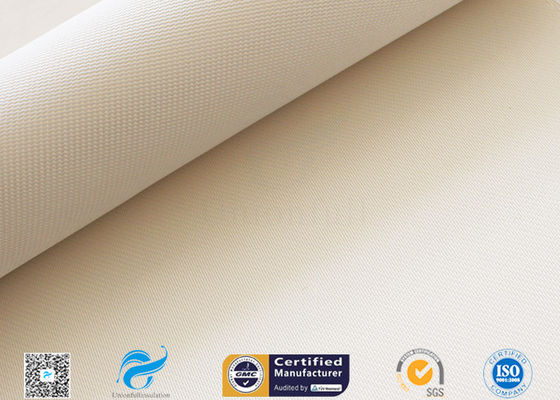

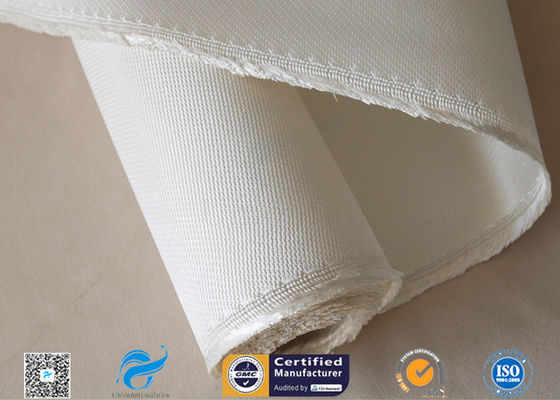

Ablation Resistance 1.3mm White Color 12HS Satin Weave 1250g High Silica Cloth

China Ablation Resistance 1.3mm White Color 12HS Satin Weave 1250g High Silica Cloth supplier
Ablation Resistance 1.3mm White Color 12HS Satin Weave 1250g High Silica Cloth supplier Ablation Resistance 1.3mm White Color 12HS Satin Weave 1250g High Silica Cloth supplier Ablation Resistance 1.3mm White Color 12HS Satin Weave 1250g High Silica Cloth supplier Ablation Resistance 1.3mm White Color 12HS Satin Weave 1250g High Silica Cloth supplier

Large Image :  Ablation Resistance 1.3mm White Color 12HS Satin Weave 1250g High Silica Cloth

Product Details:

Place of Origin: China
Brand Name: Unionfull
Certification: ISO9001-2008; SGS;TUV
Model Number: UPH-8120-100

Payment & Shipping Terms:

Minimum Order Quantity: 100mters
Price: 9.98~12.6
Packaging Details: Woven bag, carton
Delivery Time: 10~15days after got payment
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 8000m2 Per Day
Contact Now
Detailed Product Description
Weave: 12HS Weight: 1250g/m2
Thickness: 1.3mm SiO2 Content: ≥96%
Width: 1000mm Color: White/Brown

Ablation Resistance 1.3mm White Color 12HS Satin Weave 1250g High Silica Cloth



High silica is a kind of heat-resistant and soft inorganic fiber which SiO2 content is over 96%. The material has excellent heat-resistant characteristics, the softening point is close to 1700 ° C, long time service temperature at 900 ° C, it can work for 10 minutes at 1450 ° C, and keep well at 1600 ° C for 15 seconds. It also performs an outstanding capability of high strength, easy processing, thermal insulation and ablation resistance.



In generally, silica cloth can be produced at width of 92cm and 100cm, roll length at 50meters. UPH-8120-100 is a heavy weight fiberglass cloth weaved by 12HS, and weight at 1250g/m2, so the fabric is smooth, shiny and soft,  meantime it is high strength and abrasion resistance because of the fiberglass yarn.



Main Specifications



Code

Weight

(g/m2)

Thickness

(mm)

Width(mm) Color Type

UPSS-860-92



500 0.6 920 Brown,white Satin 8HS

UPSH-860-92



600 0.7 920 Brown,white Satin 8HS

UPSS-8120-92



1050 1.3 920 Brown,white Satin 12HS

UPSH-8120-92



1150 1.3 920 Brown,white Satin 12HS

UPSH-860-100



650 0.7 1000 Brown,white Satin 8HS

UPSH-8120-100



1250 1.5 1000 Brown,white Satin 12HS



Properties:

1.SiO2≥96%

2.Excellent heat resistance

3.Low thermal conductivity

4.Asbestos free, harmless to human body

5.Good electrical insulation

6.Low thermal shrinkage

7.Shiny, soft but tough

Applications:
1.used for welding/cutting protection
2.molten metal splash protection
3.heat and flame shielding,stress relief,insulation
4.hose and cable protection and emergency fire blankets



Ablation Resistance 1.3mm White Color 12HS Satin Weave 1250g High Silica ClothAblation Resistance 1.3mm White Color 12HS Satin Weave 1250g High Silica Cloth
