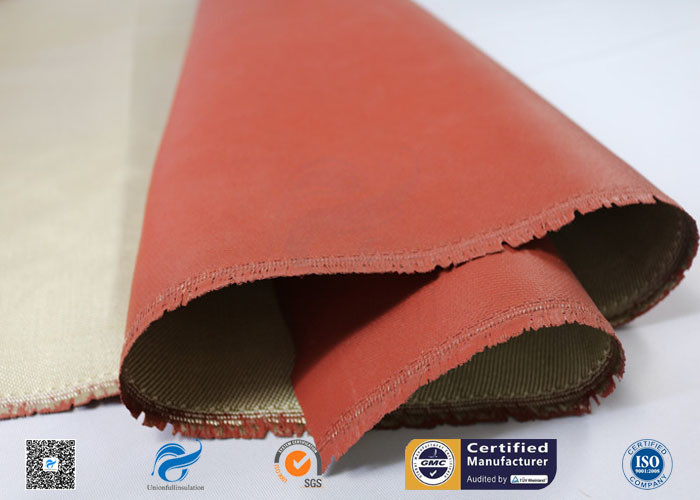

260 ℃ Heat Resistant Insulation Silicone Coated High Silica Fabric

260 ℃ Heat Resistant Insulation Silicone Coated High Silica Fabric
260 ℃ Heat Resistant Insulation Silicone Coated High Silica Fabric 260 ℃ Heat Resistant Insulation Silicone Coated High Silica Fabric 260 ℃ Heat Resistant Insulation Silicone Coated High Silica Fabric 260 ℃ Heat Resistant Insulation Silicone Coated High Silica Fabric

Large Image :  260 ℃ Heat Resistant Insulation Silicone Coated High Silica Fabric

Product Details:

Place of Origin: China
Brand Name: Unionfull
Certification: ISO9001:2008,SGS,TUV
Model Number: UPSH-8120-92S150

Payment & Shipping Terms:

Minimum Order Quantity: 500 m2
Price: $6.25--10.8/M2
Packaging Details: 1 Roll with 1 Woven Bag
Delivery Time: 2 weeks after receiving the payment
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 10000 square meters per day
Detailed Product Description
Item: High Silica Fabric Color: Red
Weave: Twil Weave Keyword: High Temperature Silica Cloth
Alkali Content: Alkali Free Thickness: 1.30mm
Material: Silica Fiberglass Coating: Silicon Coated
Good Features: Fireproof

260 ℃ Heat Resistant Insulation Silicone Coated High Silica



Product Introduction



High-silicon fiberglass cloth is an engineering material with the advantages of flame retardant, corrosion resistance, structural stability, heat insulation, minimum elongation and contraction, and high strength. This new material product has covered many fields such as electrical appliances, electronics, transportation, chemical engineering, construction engineering, heat insulation, sound absorption, fire prevention and environmental protection.



Product Specification



Item High silica cloth
Color Red
Width 920mm
Length 50m
Thickness 1.3mm
Working Temperature -70~260℃



Product Properties



1. SiO2≥ 96%

2. Soft point is nearly 1700 °C, working at 900 °C for a long time

3. Low thermal conductivity

4. Good chemical stability

5. Good electrical insulation

6. Low heat shrinkage

7. No asbestos products, no pollution

8. Good process performance



Application



1. Electrical insulation: Silicone cloth has a high insulation rating, dielectric constant 3 ~ 3.2, breakdown voltage 20 ~ 50kv / mm. Can withstand high voltage load, can be made into insulation cloth, casing and other finished products.

2. Non-metallic compensator: Because the silica gel cloth has excellent high temperature resistance, low temperature resistance (low temperature -70 ° C, high temperature 260 ° C), anti-corrosion, anti-aging, and good elasticity and flexibility, it can be used for pipe flexibility. Connected to the device, it can solve the damage caused by thermal expansion and contraction, and can be widely used in petroleum, chemical, cement, energy and other fields.

3. anti-corrosion: Silicone rubber coated glass fiber, can be used as a pipe, saving internal and external anti-corrosion layer, excellent anti-corrosion performance, high strength, is an ideal anti-corrosion material.4 temperature resistance: as a fire blanket, fire curtain temperature resistant flame retardant material.5 other fields: silicone rubber coated glass fiber membrane structural materials can be applied to building sealing materials, high temperature anti-corrosion conveyor belts, packaging materials and other fields.6, as a temperature-resistant, anti-corrosion conveyor belt.






260 ℃ Heat Resistant Insulation Silicone Coated High Silica Fabric 0
