Unionfull® China Thermal Insulation Products Supplier | Thermal Materials - High Silica Cloth - Thermal Insulating Fiberglass Fabrics
| Place of Origin: | China |
|---|---|
| Brand Name: | Unionfull |
| Certification: | ISO9001:2008; SGS;TUV |
| Model Number: | JT8295AR-D40-100 |
| Minimum Order Quantity: | 500 Meters |
| Price: | $1.8--$2.30/square meter |
| Packaging Details: | One roll in poly bag |
| Delivery Time: | 15 Working days after payment |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union |
| Supply Ability: | 30000 square meters per day |
| Base Cloth: | 2520 Fabric, 295g/m2 | Total Weight: | 375g/m2 |
|---|---|---|---|
| Thickness: | 0.35mm | Width: | 100cm |
| Yarn Type: | E-glass | Weave Type: | Plain Woven |
| High Light: | fire resistant blanket,fire protection blanket |
||

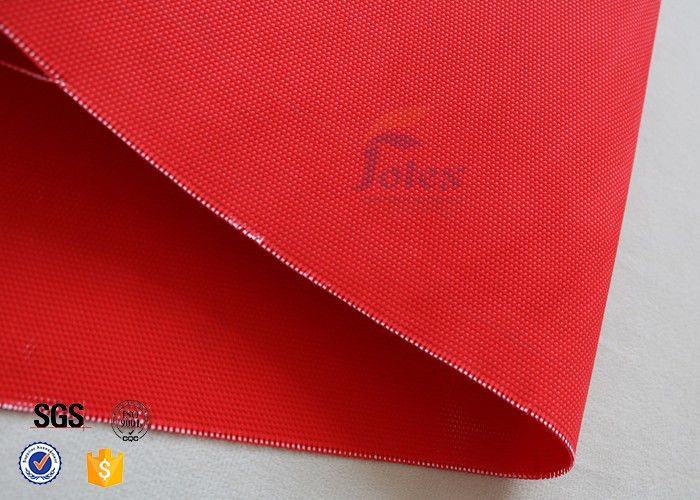

0.35mm Acrylic Coated Fiberglass Fabric Fire Blanket For Industrial Protection
This acrylic coated fiberglass fabric is produced from a basic cloth - 2520 woven fiberglass cloth which is coated with red Acrylic on single side or two sides with industrial compounded glue. The acrylic coated fiberglass fabric is 355g/m2. And the uncoated basic cloth is 2520 fiberglass fabric which is 295g/m2 and 0.3mm thick. It is in plain woven. After coating with 40g/m2 red Acrylic on both sides, the total weight per unit area is 375g/m2, and total thickness is 0.35mm.
Acrylic coated fabric keeps the features of coating and fiberglass: the chemical resistance/electrical insulation of the Acrylic and high tensile strength of fiberglass fabric. This coated cloth is very durable, flame resistant, thermal insulation, light weight and oil/chemical proof. It is also waterproof to some extent. What's more, because this fabric is very durable, it can be used for horsepower motors.
Specification of JT8295AR-D40-100
| Item |
Acrylic Coated Fiberglass Fabric |
| Total weight | 375 g/m2 |
| Thickness | 0.35 mm |
| Color | Red |
| Temperature |
Coating: -50℃ to +260℃ |
| Coating | Acrylic Coating On Both Sides |
| Width | 100cm |
Properties:
Application:
About The Basic Cloth 2520 Fiberglass Fabric:
|
Fabric Style |
Weave |
Weight (oz/sq.yd.) |
Thickness (inch) |
Count | Yarn Warp | Yarn Weft |
Break Strength (lbs/inch of width) |
| 2520 | Plain | 8.68 | 0.012 | 18/18 | ECH 25 1/0 | ECH 25 1/0 | 330/330 |
