Unionfull® China Thermal Insulation Products Supplier | Thermal Materials - High Silica Cloth - Thermal Insulating Fiberglass Fabrics
| Place of Origin: | China |
|---|---|
| Brand Name: | Unionfull |
| Certification: | ISO9001:2008, SGS;TUV |
| Model Number: | JT8600SR-S100-100 |
| Minimum Order Quantity: | 500 Meters |
| Price: | $6.75---$6.99/m2 |
| Packaging Details: | Carton box or woven bag |
| Delivery Time: | 16 Working Days After Payment |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union |
| Supply Ability: | 10000 Square Meters Per Day |
| Cloth Type: | High Silica Cloth 600g | Total Weight: | 700g/m2 |
|---|---|---|---|
| Thickness: | 0.8mm | Color: | Red/White |
| Weave: | Satin 8HS | SiO2: | ≥96% |
| Ends: | Warp/Weft 18/13 | Width: | 100cm |
| High Light: | High Silica Cloth,High Silica Glass Fiber |
||

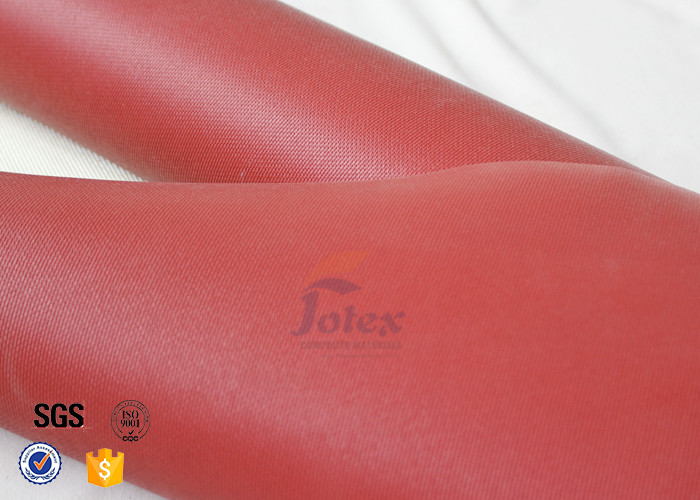

0.8mm 700gsm Red Silicone Coated High Silica Fabric Cloth For Fire Blanket
Red silicone coated high silica cloth is produced from silica treated fiberglass fabric which is coated with a red silicone/rubber on its single side. It is a inorganic fiberglass fabric, which has more than 96% content of SiO2. The melting point of the basic silica cloth is 1200℃. It can be used below 800degree continuously. However, it can work well instantaneously under 1200℃ . The silicone coating can withstand temperature range from 260 to 300℃. Silicone coated high silica cloth is excepting for fireproof, chemical resistant and abrasion resistant
The basic high silica cloth is weighed at 600g/m2. Including coating, its total weight is 700g/m2(100gsm silicone coating on one side). Then total thickness is 0.8mm. Count per cm is Warp18/ Weft 13. Weave type of 8H satin weave. In this weave, there is a weft yarn floats over seven warp yarns and under one warp. In fact satin weave is a stable weave which is compared with plain weave.
Data Sheet Of JT8600SR-S100-100:
| Item | Silicone Coated High Silica Cloth |
| Material | Glass Fibers |
| Weave | 8H Satin |
| Warp Density | 18 Ends/CM |
| Weft Density | 13 Ends/CM |
| Mass Per Unit | 700g/m2 |
| Thickness | 0.8mm |
| Width | 100cm |
| Working Temperature |
Silicone Coating ≤260℃ |
Features:
Application:
Oil and gas application, thermal insulation cover for pipe line
