Red Acrylic Coated Fiberglass Fabric For Industrial Fire / Welding Blanket

China Red Acrylic Coated Fiberglass Fabric For Industrial Fire / Welding Blanket supplier
Red Acrylic Coated Fiberglass Fabric For Industrial Fire / Welding Blanket supplier Red Acrylic Coated Fiberglass Fabric For Industrial Fire / Welding Blanket supplier Red Acrylic Coated Fiberglass Fabric For Industrial Fire / Welding Blanket supplier Red Acrylic Coated Fiberglass Fabric For Industrial Fire / Welding Blanket supplier

Large Image :  Red Acrylic Coated Fiberglass Fabric For Industrial Fire / Welding Blanket

Product Details:

Place of Origin: China
Brand Name: Unionfull
Certification: ISO9001:2008; SGS;TUV
Model Number: JT8295AR-D15-100

Payment & Shipping Terms:

Minimum Order Quantity: 500 Square Meters
Price: $1.8--$2.30/square meter
Packaging Details: One roll in poly bag
Delivery Time: 15 Working days after payment
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 30000 square meters per day
Contact Now
Detailed Product Description
Features: Heat Protection, Welding Protection Base Cloth: 2520 Fiberglass Fabric
Total Weight: 295g/m2+15g/m2+15g/m2 Total Thickness: 0.32mm
Width: 100cm Yarn Type: E-glass
Weave Type: Plain Woven Key Words: Acrylic Fiberglass Fabric, Fiber Glass Cloth

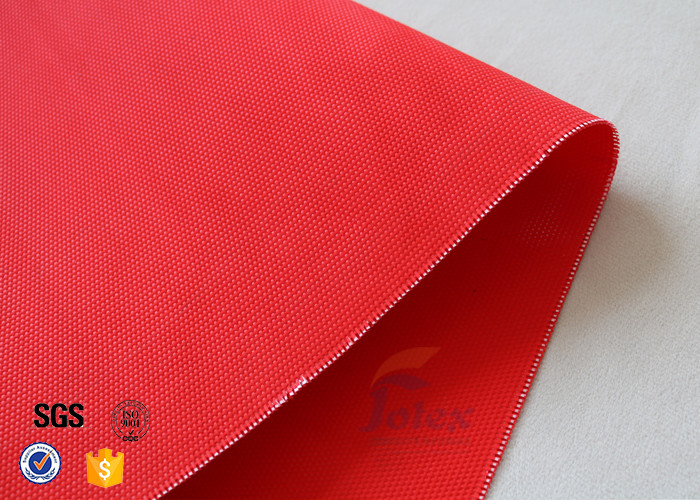

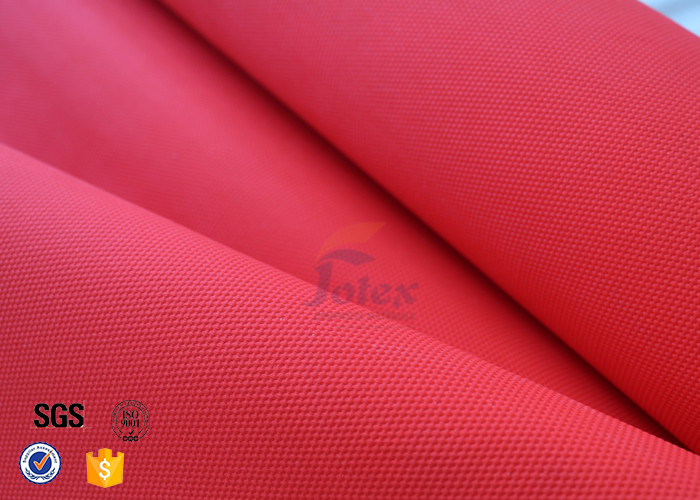

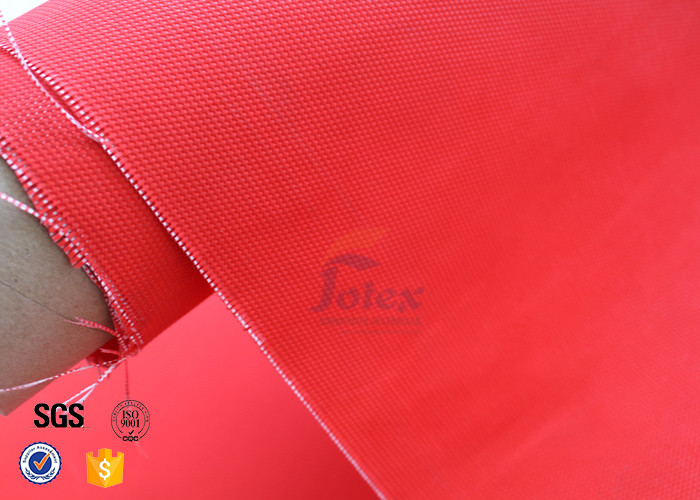

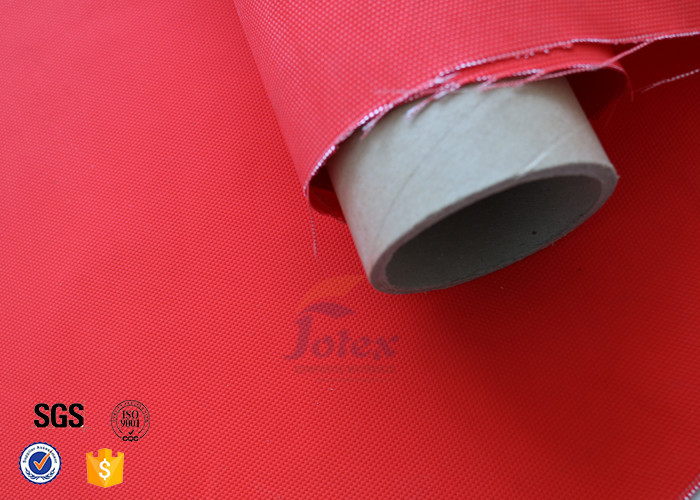

Red Acrylic Coated Fiberglass Fabric For Industrial Fire / Welding Blanket

Acrylic coated fiberglass fabric is produced from woven fiberglass cloth substrate which is coated with red Acrylic coating on both two sides with a specially compounded industrial used glue. Total weight of the coated glass fiber fabric is 325g/m2. Its substrate cloth is plain weave 2520 fiberglass fabric, which is 8.68oz/sq.yd. and 0.012 inch thick. When coated with 15g/m2 red Acrylic coating on its each sides, totally weight per unit can be 325gsm, and thickness will be 0.32mm.

Acrylic coated fiberglass fabric combines the corrosion resistance of the coating and high strength of fiberglass fabric. This coated fiber glass cloth has some properties such as high tensile strength, great heat resistance, light, aging and oil compared to natural rubber. It is also with excellent resistance to water. What's more, along with its stable chemical and phisical properties, it is used widely in the field of elastomers. And based on its durability. It can be used for fractional and integral horsepower motors(leads and crossovers). Other uses including application in dry and oil-filled transformers, relays, radio and television circuits, and welding euipment.

Yarn type of this acrylic coated fabric is e-glass ECH 25 1/0 fiber glass yarn.
Total weight is 325g/m2. 295g/m2+15g/m2 coating on both sides.
100cm, 127cm, 155cm is very common and convenient width we produce.


Specification of JT8295AR-D15-100


Item

Acrylic Coated Fiberglass Fabric

Total weight325 g/m2
Thickness0.32 mm
ColorRed
Temperature

Coating: -50℃ to +260℃

CoatingAcrylic Coating On Both Sides
Width100cm



Properties:


  1. 15g/m2 Acrylic coating on both sides
  2. Heat Resistant, acrylic coating can be used below 260℃
  3. Resist most acids and most organic solvents, chemical corrosion resistance
  4. Highly tear resistant. Withstands severe bending with no loss of dielectric properties.
  5. Coating will not flow upon application of heat.
  6. Extremely tough but flexible as well. Able to withstand assembly peocess, cut-through and mechanical stress.



    Application:

    Welding blankets to protect facilities from fire hazards during welding operation
    Fire door and fire curtains.
    Other hot work processing
    Industries like shipbuilding,
    Metal processing,
    Refineries, Hull and ship.
    Power generation
    Flexible fabric air ducts
    Thermal insulation exhaust blanket






    About The Basic Cloth 2520 Fiberglass Fabric:



    Fabric
    Style

    Weave

    Weight

    (oz/sq.yd.)

    Thickness

    (inch)

    CountYarn WarpYarn Weft

    Break Strength

    (lbs/inch of width)

    2520Plain8.680.01218/18ECH 25 1/0ECH 25 1/0330/330
