|Cloth Type:||High Silica Cloth||Weight:||600g/m2|

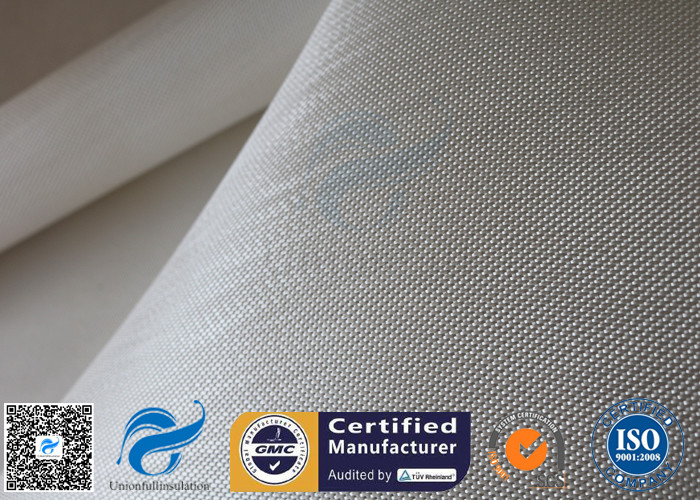

800 Degree Celsius Fiber Glass 600gsm High Silica Cloth For Fire Blanket
This 600g/m2 high silica cloth is woven from high strength amorphous silica glass fibers. It is a very durable but also flexible fabric. It is a kind of inorganic fiber fabric with more than 96% SiO2 content. The softening point is close to 1300℃ and iIt can withstand a temperature of 800 degree Celsius continuously. What's more, the instantaneous temperature of 1200 degree. It is an ideal high temperature fire resistant fabric for many thermal insulation products.
Weight per unit area of this fabric is 600g/m2. Thickness is 0.7mm. Count per cm is 18/13. Weave of this high silica cloth is 8 harness satin weave. Satin weave is more stable weave type than the plain and it is easier to conform to curved surfaces typical. In this weave pattern eight harness satin, there is a seven-by-one interfacing where one weft yarn floats over seven warp yarns and under one. If you want 12 harness satin, you can ask for high silica cloth 1200g which is 1.3mm thick.
Data Sheet Of UPH-860:
|UPH-860||600g/m2 ± 30||0.7mm±0.05||8HS||18/13||91.44cm||≤ 800°C|
Shipbuilding, machinery industry
Oil & gas field, protective products
Metallurgy, auto industry
