3K 200g 0.3mm Twill Weave Carbon Fiber Fabric For Reinforcement , Thermal Insulator Materials

Good quality Thermal Insulation Materials for sales
Good quality Thermal Insulation Materials for sales
Satisfied with your Quality and service,I will introduce some my partners to you for cooperation

—— Christian Juchem(Brazil)

نحن جد المسرور في التعاون مع الشركة jotex.علشان لديهم عدة المميزات سواء من ناحية جودة المنتجات أو موعد تسليم البضائع و هم يراعون في مصلحات الزبائن دا

—— Amjad Iqbal Syed(UAE)

You are very persistent….

—— Gloria Reed(USA)

I'm Online Chat Now

3K 200g 0.3mm Twill Weave Carbon Fiber Fabric For Reinforcement , Thermal Insulator Materials

China 3K 200g 0.3mm Twill Weave Carbon Fiber Fabric For Reinforcement , Thermal Insulator Materials supplier
3K 200g 0.3mm Twill Weave Carbon Fiber Fabric For Reinforcement , Thermal Insulator Materials supplier 3K 200g 0.3mm Twill Weave Carbon Fiber Fabric For Reinforcement , Thermal Insulator Materials supplier 3K 200g 0.3mm Twill Weave Carbon Fiber Fabric For Reinforcement , Thermal Insulator Materials supplier 3K 200g 0.3mm Twill Weave Carbon Fiber Fabric For Reinforcement , Thermal Insulator Materials supplier

Large Image :  3K 200g 0.3mm Twill Weave Carbon Fiber Fabric For Reinforcement , Thermal Insulator Materials

Product Details:

Place of Origin: China
Brand Name: Unionfull
Certification: ISO9001:2008, SGS
Model Number: JT8200T-3K-100

Payment & Shipping Terms:

Minimum Order Quantity: 500 Meters
Price: $12.5-13.17/ Square Meter
Packaging Details: 50 meters per roll with poly bag
Delivery Time: 15 Working Days After Receiving Payment
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 50000 square meters per day
Contact Now
Detailed Product Description
Fabric: 3K Carbon Fiber Fabric Weight: 200g/m2
Thickness: 0.3mm Weave: Twill Weave
Width: 100cm Yarn Count: 5/5
Feature: Thermal Insulation, Electric Insulation Keyword: 3k 200g Carbon Fiber Fabric

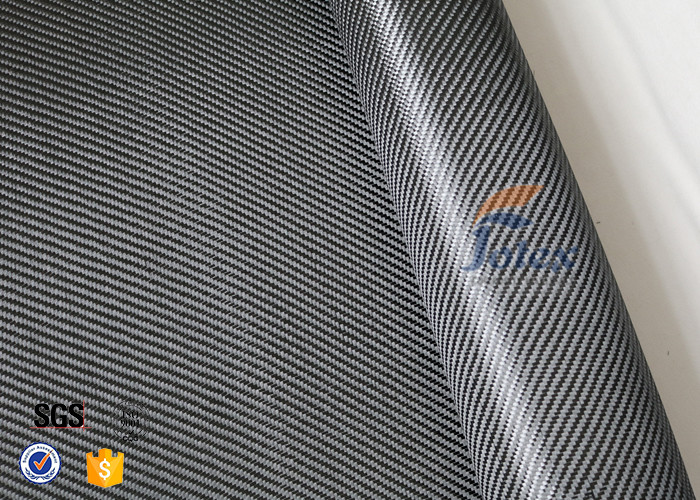

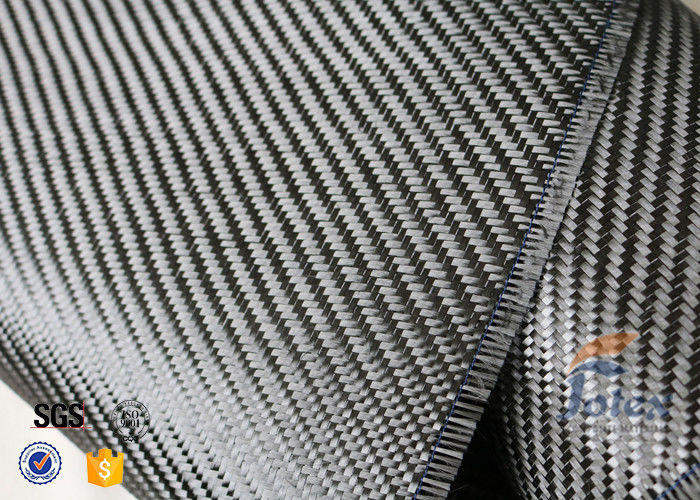

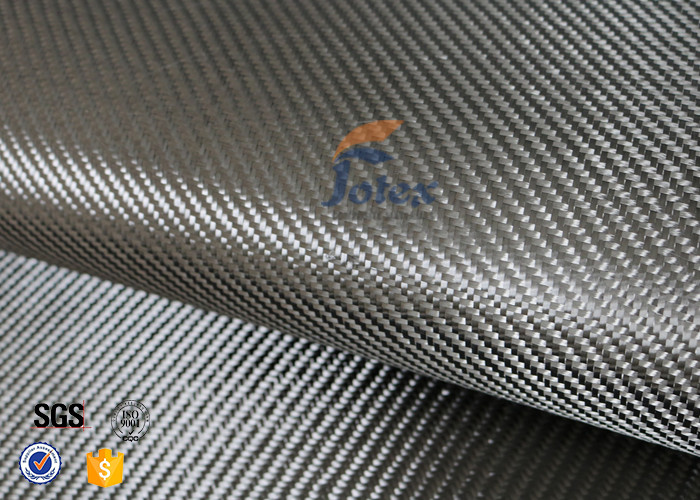

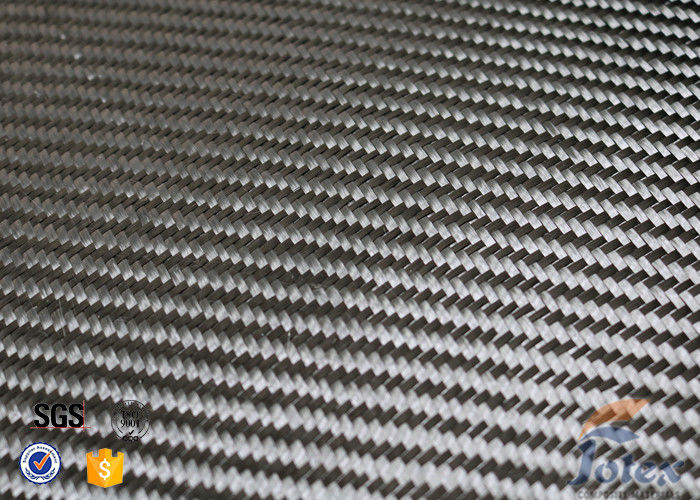

3K 200g 0.3mm Twill Weave Carbon Fiber Fabric For Reinforcement


Carbon fiber fabric is made from 100% carbon fibers by woven unidirectional, plain or twill style. Carbon fiber fabrics are fire resistant and electrical insulation. When correct engineered, carbon fabric materials can reach the strength and stiffness of metals meanwhile at significant weight savings. This fabrics are easy to combine with differmn resin including epoxy, polyester and vinyl ester resins.



Carbon fiber cloth is a very common used composite material in industrial area, mainly for surface decoration and reinforcement. Carbon fiber fabric has great features of light weight, durable, high modulus, fire resistance and chemical corrosion resistance. Better than those of steel and aluminum materials. The products made of carbon fiber fabric have great physical and chemical properties, making this carbon fabric widely applied in different application.


Yarn type of this 3K 200g carbon fiber fabric is 3K carbon fibers. This woven fabric is weighed at 200g/m2. Weave type of this fabric is twill weave. Thread count is 5/5. Thickness of this fabric is 0.3mm. Width can be customized, 100cm is very common and convenient width which is available. (more economical price and less lead time)


Technical Data

Style Weave Thread Count Thickness Weight Width
3K Twill

5/5

0.3mm 200g/m2 1m




Specification Of JT8200T-3K-100:

Item 3K Carbon Fiber Fabric
Material 100% Carbon Fibers
Weave Twill Weave
Mass Per Unit 200g/m2
Thickness 0.3mm
Width 100cm


Features:



  • High tensile strength
  • Light weight
  • Chemical resistance;
  • High temperature tolerance;
  • Low thermal expansion;
  • High Young’s modulus (i.e., resistance to extension under load);
  • High thermal conductivity


Application:



  • Aerospace Decoration
  • Wind power
  • Marine
  • Automobile decoration
  • Sports equipment
  • Medical machine
  • Construction reinforcement













Specification Data Sheet:





Type Yarn Construction Fiber Count Weight (g/m2) Thickness (mm) Width (cm)
Warp Weft Warp Weft
JT8180P 3K 3K Plain 4.5 4.5 180 0.28 50-150
JT8200P 3K 3K Plain 5 5 200 0.3 50-150
JT8200T 3K 3K Twill 5 5 200 0.3 50-150
JT8240P 3K 3K Plain 6 6 240 0.32 50-150
JT8240T 3K 3K Twill 6 6 240 0.32 50-150
JT8280P 3K 3K Plain 7 7 280 0.34 50-150
JT8280T 3K 3K Twill 7 7 280 0.34 50-150
JT8320P 3K 3K Plain 8 8 320 0.36 50-150
