Thermal Insulation Materials 0.45mm One Side Orange Silicone Coated Fiberglass Fabric

Thermal Insulation Materials 0.45mm One Side Orange Silicone Coated Fiberglass Fabric
Thermal Insulation Materials 0.45mm One Side Orange Silicone Coated Fiberglass Fabric Thermal Insulation Materials 0.45mm One Side Orange Silicone Coated Fiberglass Fabric Thermal Insulation Materials 0.45mm One Side Orange Silicone Coated Fiberglass Fabric Thermal Insulation Materials 0.45mm One Side Orange Silicone Coated Fiberglass Fabric Thermal Insulation Materials 0.45mm One Side Orange Silicone Coated Fiberglass Fabric Thermal Insulation Materials 0.45mm One Side Orange Silicone Coated Fiberglass Fabric Thermal Insulation Materials 0.45mm One Side Orange Silicone Coated Fiberglass Fabric Thermal Insulation Materials 0.45mm One Side Orange Silicone Coated Fiberglass Fabric Thermal Insulation Materials 0.45mm One Side Orange Silicone Coated Fiberglass Fabric Thermal Insulation Materials 0.45mm One Side Orange Silicone Coated Fiberglass Fabric Thermal Insulation Materials 0.45mm One Side Orange Silicone Coated Fiberglass Fabric Thermal Insulation Materials 0.45mm One Side Orange Silicone Coated Fiberglass Fabric
Basic Information
Place of Origin: China
Brand Name: Unionfull
Certification: ISO9001:2008, SGS
Model Number: UPSE-8732S40
Minimum Order Quantity: 500 Meters
Price: $2.5-3.5/ Square Meter
Packaging Details: 50 meters per roll with poly bag
Delivery Time: 15 Working Days After Receiving Payment
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 50000 square meters per day
Get Best Price Contact Now
Base Cloth: 3732 Fiberglass Fabric Coating: Orange Silicone, 40gsm On One Side
Total Thickness: 0.45mm Weight: 430g/m2+40g/m2coating)
Width: 100cm Feature: Thermal Insulation, Electric Insulation
Weave: Satin Type: E-glass
Highlight:

thermal insulation blankets

,

thermal insulation jackets

Thermal Insulation 0.45mm One Side Orange Silicone Coated Fiberglass Fabric


This orange color one side silicone coated fiberglass fabric is produced of glass fiber cloth and then it will be coated with 40g/m2 orange silicone/rubber coating on one side. The basic fiberglass fabric can withstand a high temperature of 550℃. But the orange rubber/silicone coating can stand temperature only 260 degree Celsius.

Silicone coated fiber glass fabric is a flexible, durable and fire resistant fabric. It is made from fireproof e-glass fiberglass cloth with features such as dimension stability, tear resistance and high tensile strength. And because of the silicone coating's good properties, this coated fiberglass cloth are always used in industrial field products such as fire blanket, expansion joints, pump/pipeline thermal insulation jackets and fire fighting equipments.


Yarn type of this silicone coated  fabric is e-glass G37 1/0 0.7Z fiberglass yarn.
Total weight of this silicone coated fiber glass fabric is 470g/m2. 430g/m2+40g/m2 coating on one sides. 100cm, 127cm, 155cm is very common and convenient width which are available. (more economical price and less lead time)


Technical Data Of 3732 Fabric

Style Weave Thread Count Thickness Weight Width
3732 Satin

20 Ends/CM

11 Ends/CM

 0.4mm 430g/m2 1m




Specification Of UPSE8732S40:

Item Orange Silicone Coated Fiberglass Fabric
Material E-glass Fiber Glass
Weave Satin Weave
Warp Density 20 Ends/CM
Weft Density 11 Ends/CM
Mass Per Unit 470g/m2(430+40)
Thickness 0.45mm
Width 100cm
Working Temperature

Silicone Coating below 260℃


Features:


  • Anti most chemical agents
  • Excellent release features
  • Durable, abrasion resistance
  • Tear resistance, high tensile strength
  • Electric insulation
  • Service temperature from -50℃ to 260℃


Application:


  1. Freeze/heat protection covers
  2. Fire doors & fire curtains
  3. Cable, pipeline, pump thermal insulation covers
  4. Fire safety clothing
  5. Corrosion sector
  6. Hot air blower

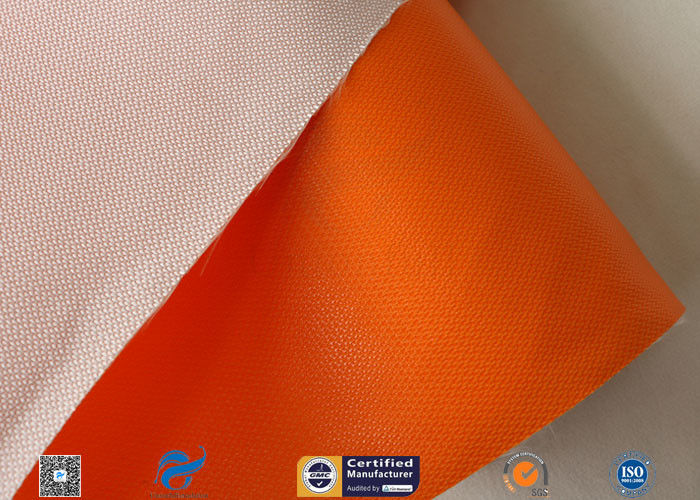

Thermal Insulation Materials 0.45mm One Side Orange Silicone Coated Fiberglass Fabric 0

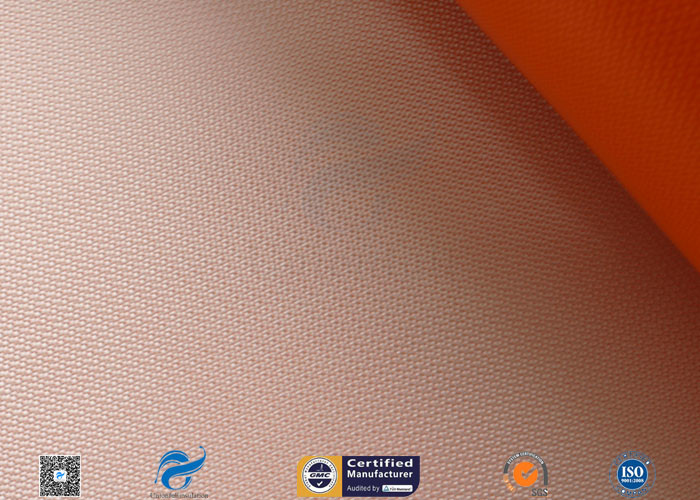

Thermal Insulation Materials 0.45mm One Side Orange Silicone Coated Fiberglass Fabric 1




Tag:

thermal insulation jackets,

thermal insulation blankets,

thermal insulation covers
