Place of Origin: | China |
---|---|
Brand Name: | Unionfull |
Certification: | ISO9001:2008, SGS;TUV |
Model Number: | JT8600AFS-S100-94 |
Minimum Order Quantity: | 500 Meters |
Price: | $6.75---$6.99/m2 |
Packaging Details: | Carton box or woven bag |
Delivery Time: | 16 Working Days After Payment |
Payment Terms: | L/C, D/A, D/P, T/T, Western Union |
Supply Ability: | 10000 Square Meters Per Day |
Cloth Type: | High Silica Cloth | Weight: | 700g/m2 |
---|---|---|---|
Thickness: | 0.8mm | Color: | Silver |
Weave: | Satin 8HS | SiO2: | ≥96% |
Ends Warp/Weft: | 18/13 | Width: | 94cm |
Highlight: | High Silica Cloth,High Silica Glass Fiber |

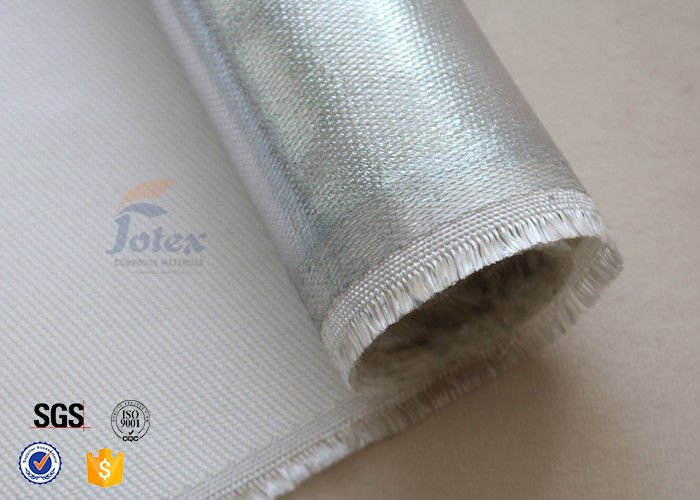

Reflective Aluminium Foil Silver Coated High Silica Cloth 700gsm 0.8mm
This 0.8mm 700gsm silver(Aluminium foil) coated high silica cloth is woven from high strength silica glass fibers and then coated with a silver coating. It is a kind of inorganic glass fiber fabric with large content of silica (≥96% SiO2). The melting point of this high temperature silica cloth is about 1300℃. It can withstand a temperature of 800degree continuously. What's more, the instantaneous temperature of 1200 degree. It is an ideal high temperature fabric. However, the coating can only resist 260 to 300℃. This silver coating is reflective, except for fire resistance, it can also reflect most heat.
This coated high silica cloth is weighed at 700g/m2 totally(100gsm coating on one side). Thickness is 0.8mm. Count per cm is 18/13. Weave of this high silica cloth is 8HS satin weave. In fact Satin weave is more stable than the plain weave and is easier to conform to curved surfaces typical in reinforced plastics. In this weave pattern eight harness satin, there is a seven-by-one interfacing where a weft yarn floats over seven warp yarns and under one warp. If you want 12 harness satin, it is high silica cloth 1200g 1.3mm silica basic cloth.
Data Sheet Of JT8600AFS-S100-94:
Item | Silver Coated High Silica Cloth |
Material | E-glass Glass Fibers |
Weave | 8H Satin |
Warp Density | 18 Ends/CM |
Weft Density | 13 Ends/CM |
Mass Per Unit | 700g/m2 |
Thickness | 0.8mm |
Width | 94cm |
Working Temperature | Silver Coating ≤260℃ |
Features:
Application:
Shipbuilding, machinery industry
Refinery, oil & gas field
Metallurgy, auto industry
