800 Degree Celsius 600 g/m2 Brown High Silica Fabric Cloth 0.7 mm Fiberglass Fabric

800 Degree Celsius 600 g/m2 Brown High Silica Fabric Cloth 0.7 mm Fiberglass Fabric
800 Degree Celsius 600 g/m2 Brown High Silica Fabric Cloth 0.7 mm Fiberglass Fabric 800 Degree Celsius 600 g/m2 Brown High Silica Fabric Cloth 0.7 mm Fiberglass Fabric 800 Degree Celsius 600 g/m2 Brown High Silica Fabric Cloth 0.7 mm Fiberglass Fabric 800 Degree Celsius 600 g/m2 Brown High Silica Fabric Cloth 0.7 mm Fiberglass Fabric 800 Degree Celsius 600 g/m2 Brown High Silica Fabric Cloth 0.7 mm Fiberglass Fabric 800 Degree Celsius 600 g/m2 Brown High Silica Fabric Cloth 0.7 mm Fiberglass Fabric 800 Degree Celsius 600 g/m2 Brown High Silica Fabric Cloth 0.7 mm Fiberglass Fabric 800 Degree Celsius 600 g/m2 Brown High Silica Fabric Cloth 0.7 mm Fiberglass Fabric 800 Degree Celsius 600 g/m2 Brown High Silica Fabric Cloth 0.7 mm Fiberglass Fabric 800 Degree Celsius 600 g/m2 Brown High Silica Fabric Cloth 0.7 mm Fiberglass Fabric 800 Degree Celsius 600 g/m2 Brown High Silica Fabric Cloth 0.7 mm Fiberglass Fabric 800 Degree Celsius 600 g/m2 Brown High Silica Fabric Cloth 0.7 mm Fiberglass Fabric
Basic Information
Place of Origin: China
Brand Name: Unionfull
Certification: ISO9001:2008, SGS;TUV
Model Number: UPH-860
Minimum Order Quantity: 500 Meters
Price: $6.60---$6.98/m2
Packaging Details: Carton box or woven bag
Delivery Time: 20 Working Days After Payment
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 10000 Square Meters Per Day
Get Best Price Contact Now
Cloth Type: High Silica Cloth Weight: 600g/m2
Thickness: 0.7mm Color: Brown
Weave: Satin 8HS SiO2: ≥96%
Ends Warp/Weft: 18/13 Width: 100cm
High Light:

High Silica Cloth

,

High Silica Glass Fiber

800 Degree Celsius 600g/m2 Brown High Silica Cloth 0.7mm Fiberglass Fabric



High silica cloth is woven by continuous filament silica fibers.It is high strength and inorganic fiber cloth with more than 96% silica (SiO2) content. The melting point of high silica fabric is close to 1300℃. It can withstand temperature below 800 degree Celsius continuously, what's more, it is able to stand instantaneous temperature of 1300℃. It is an great high temperature materials for heat/thermal insulation, abrasion resistance and chemical agents resistance.



Common weave of silica cloth is satin weave. This 600gsm silica cloth is 8HS satin weave. In this pattern 8 harness satin, there is a seven-by-one interfacing where a filling yarn floats over seven warp yarns and under one. 8HS weave is a stable weave for most application.



Fiberglass fabric is developed to take place of asbestos fabric which is used in welding and stress relieving work place. For these places, heat protection and molten metal splash shield is necessary. High silica cloth performs especially well in fiberglass fabric. Silica cloth is easy to fabricate and can remain flexible after high temperature exposure.



Data Sheet Of UPH-860



Items

Weight

(g/m2)

Thickness

(mm)

 Weave

Count

(CM)

 Width Temperature
UPH-860 600 0.7 8HS 18/13 100cm ≤ 800°C



Features:

  • Especially Fire Resistant
  • Stable chemical and physical features
  • Anti most acid
  • High temperature protection/thermal insulation
  • Abrasion resistance

Application:

  1. Cutting protection
  2. Molten metal sparks shield
  3. Heat and flame insulation cover
  4. Thermal insulation in spacecraft, automobile
  5. High temperature insulation materials

Pictures:

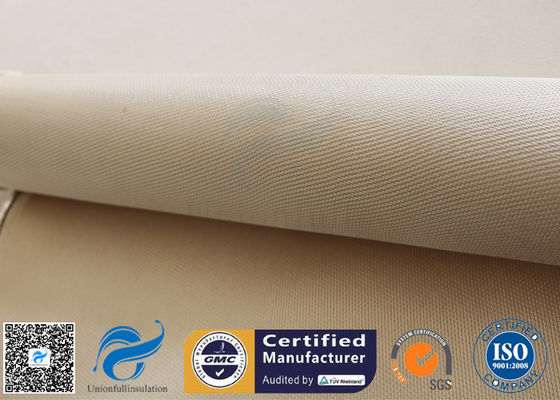

800 Degree Celsius 600 g/m2 Brown High Silica Fabric Cloth 0.7 mm Fiberglass Fabric 0
