Fireproof Heavy Duty High Silica Fabric Fiberglass Cloth 1.3mm Thickness

Good quality Thermal Insulation Materials for sales
Good quality Thermal Insulation Materials for sales
Satisfied with your Quality and service,I will introduce some my partners to you for cooperation

—— Christian Juchem(Brazil)

نحن جد المسرور في التعاون مع الشركة jotex.علشان لديهم عدة المميزات سواء من ناحية جودة المنتجات أو موعد تسليم البضائع و هم يراعون في مصلحات الزبائن دا

—— Amjad Iqbal Syed(UAE)

You are very persistent….

—— Gloria Reed(USA)

I'm Online Chat Now

Fireproof Heavy Duty High Silica Fabric Fiberglass Cloth 1.3mm Thickness

China Fireproof Heavy Duty High Silica Fabric Fiberglass Cloth 1.3mm Thickness supplier
Fireproof Heavy Duty High Silica Fabric Fiberglass Cloth 1.3mm Thickness supplier Fireproof Heavy Duty High Silica Fabric Fiberglass Cloth 1.3mm Thickness supplier Fireproof Heavy Duty High Silica Fabric Fiberglass Cloth 1.3mm Thickness supplier Fireproof Heavy Duty High Silica Fabric Fiberglass Cloth 1.3mm Thickness supplier

Large Image :  Fireproof Heavy Duty High Silica Fabric Fiberglass Cloth 1.3mm Thickness

Product Details:

Place of Origin: China
Brand Name: Unionfull
Certification: ISO9001:2008, SGS;TUV
Model Number: UPH-8120

Payment & Shipping Terms:

Minimum Order Quantity: 300 Meters
Price: $10.5---$11.65/m2
Packaging Details: Carton box or woven bag
Delivery Time: 16 Working Days After Payment
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 10000 Square Meters Per Day
Contact Now
Detailed Product Description
Cloth Type: High Silica Cloth Weight: 1200g/m2
Thickness: 1.3mm Color: White
Weave: Satin 12HS SiO2: ≥96%
Width: 100cm Feature: No Itchy, Fire Resistant, Heavt Duty

1200℃ 1.3mm Fireproof Heavt duty Fiberglass Fabric High Silica Cloth



Fiberglass high silica cloth is fiberglass fabric with more than 96% silica (SiO2). The softening point of this fabric is close to 1700℃.



Test Temperature Time(intact state)
1200 continuously
1450 10 minutes
1700 15 seconds



Silica fabric is fiberglass fabric which is treated to be with excellent fire protection. Especially it has superior resistance to molten metal splash/spatter. So it is a very suitable fabric for hot work welding protection and an ideal materials for cutting operations. Because of its production process, Unionfull's silica cloth provides improved chemical corrasion and abrasion resistance (as they have a special finish). Besides, silica cloth has low heat capacity / thermal conductivity.



This silica cloth has a high content of SiO2, so it provides excellent protection in high temperature work environments. High silica fabric can be used for welding/ fire protective blankets, protection curtains, duct connectors, gasket materials in valves controlling the molten alloys and so on.



This material can be produced to many finished protection products. If you need finished products like fire blanket and fire curtains, please inform our sales what specific size you want (width x length), so we can advise the right prices accordingly. Unionfull is manufacturer so we can produce almost any size you may need. Brass metal eyelets (grommets) can be fitted to the edge(s) of these silica fabrics to help easy suspension/securement.



Weave type of this 1200g fabric is Satin 12HS, 600g can be 8HS.

Color we have white and light brown.

Common width is 91.44cm and 100cm.

Please choose the specification you need, so a more correct price can be given.



UPH-8120 Specification:



Items Weight Thickness Weave Width Temperature



UPH-8120

1200g/m2 ± 30 1.3mm±0.05 Satin 12HS 100cm ≤1200°C



Features:





  1. High strength, high content of SiO2 (96%)
  2. Can be used under continuous temperatures of 1800°F • 982°C
  3. Low thermal conductivity / low heat capacity
  4. Better than e-glass fabrics on heat resistance
  5. Not split in the presence of water, also can be stable in vacuum.
  6. Chemical Resistance, stable properties
Applications:
  • Resists molten metal splash - welding blankets
  • Fire curtains
  • Thermocouple insulation wrap
  • Flame Fire resistant protection
  • Thermal insulation barrier cover
  • Won't burn, resist most acids, can be used as fire blanket in chemical factory
  • Also can be used for the rocket, the missile, spacecraft for thermal insulation part



Pictures:

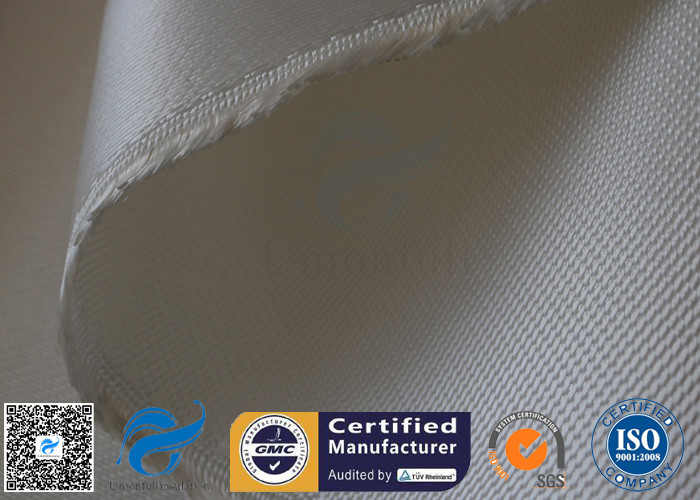

Fireproof Heavy Duty High Silica Fabric Fiberglass Cloth 1.3mm Thickness
