Place of Origin: | China |
---|---|
Brand Name: | Unionfull |
Certification: | ISO9001:2008, SGS;TUV |
Model Number: | UPH-860 |
Minimum Order Quantity: | 300 Meters |
Price: | $6.58---$6.88/m2 |
Packaging Details: | Carton box or woven bag |
Delivery Time: | 16 Working Days After Payment |
Payment Terms: | L/C, D/A, D/P, T/T, Western Union |
Supply Ability: | 10000 Square Meters Per Day |
Cloth Type: | High Silica Cloth | Weight: | 600g/m2 |
---|---|---|---|
Thickness: | 0.7mm | Color: | White |
Weave: | Satin 8HS | SiO2: | ≥96% |
Ends Warp/Weft: | 18/13 | Width: | 100cm |
High Light: | High Silica Cloth,High Silica Glass Fiber |

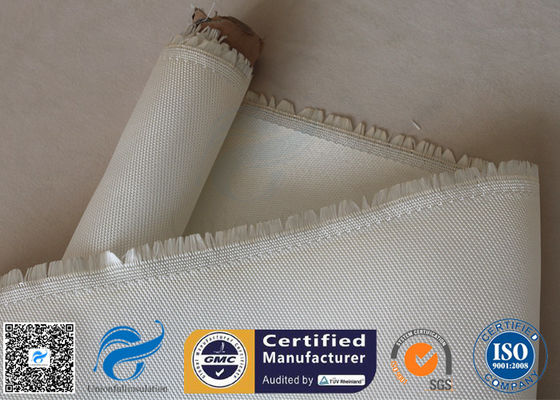

800℃ Fire Resistant 0.7mm High Silica Glass Fiber Cloth Satin 8HS Weave
Fiberglass high silica cloth is a kind of high temperature resistant inorganic fibre fabric with the content of silica (SiO2) which is more than 96%. The softening point of this fabric is close to 1700℃. It can be used for a long time in 1100℃, can work under the condition of 1450℃ for 10 minutes, in 1700℃ can work 15 seconds remained intact state. It is an ideal replacement for asbestos product used for thermal insulation and heat protection. It will not burn, rot, mildew or deteriorate and resist most acids.
High silica cloth is used in many applications, such as welding/cutting protection, molten metal splash protection, heat and flame shielding and more. It is also be used for the rocket, the missile, thermal insulation of spacecraft and high temperature-resistant insulation materials.
Structure of Unionfull's high silica cloth is satin weave. And Satin contains 2 types:
Data Sheet Of UPH-860:
Items | Weight | Thickness | Weave |
Count (CM) |
Width | Temperature |
UPH-860 | 600g/m2 ± 30 | 0.7mm±0.05 | Satin | 18/13 | 100cm | ≤ 800°C |
Features:
Pictures:
