Unionfull® China Thermal Insulation Products Supplier | Thermal Materials - High Silica Cloth - Thermal Insulating Fiberglass Fabrics
| Place of Origin: | China |
|---|---|
| Brand Name: | Unionfull |
| Certification: | ISO9001:2008, SGS;TUV |
| Model Number: | JT8120AS-S100-100 |
| Minimum Order Quantity: | 500 METERS |
| Price: | $3.25--5.8/M2 |
| Packaging Details: | 50 Meters per Roll |
| Delivery Time: | 12 Working Days |
| Payment Terms: | T/T, L/C, Western Union, |
| Supply Ability: | 10000 square meters per day |
| Width: | 80-200cm | Standing Temperature: | 1000C/1800F |
|---|---|---|---|
| Name: | Silica Cloth | Service Temperature: | 982C/1800F |
| Color: | White | Keyword: | Silica Cloth ; Silica Fabric |
| High Light: | silica fiberglass,High Silica Glass Fiber |
||

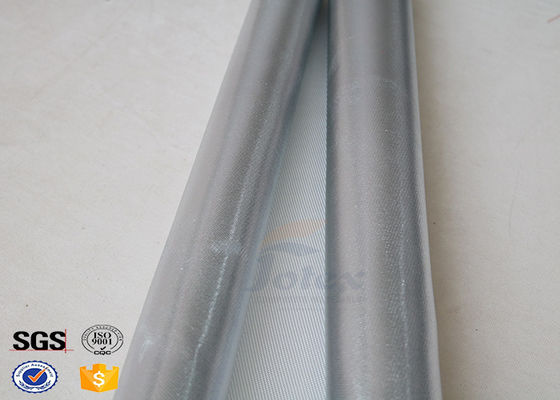

Silica cloth has more than 96% silica with excellent break strength and improved abrasion resistance. High silica cloth has been specially developed to use in the applications to protect against extreme temperature environment.
Style | Thickness | Width | Weight | Breaking strength | SiO2 content | LOI | Weave | |
Warp | Weft | |||||||
JT100-82 | 0.10±0.01 | 82+3/2 | 87±10 | ≥70 | ≥50 | ≥96 | ≤3 | Plain |
JT260-82 | 0.26±0.026 | 82±2 | 240±20 | ≥290 | ≥190 | ≥96 | ≤3 | Plain |
JT760-86 | 0.76±0.08 | 86±3 | 680±70 | ≥900 | ≥650 | ≥96 | ≤3 | Satin |
JT1260-86 | 1.26±0.13 | 86±3 | 1150±70 | ≥1200 | ≥800 | ≥96 | ≤3 | Satin |
Silica cloth has excellent thermal insulation characteristics over a very wide temperature range and doesn’t melt until temperature exceeds 3000oF. They also have excellent chemical resistance and electrical insulation properties.
It is woven by high SiO2 content fiberglass yarn with specially formulated acid treatment. It is a economic silica cloth suitable for continuous use at 1650°F (900°C), and able to withstand short term exposure up to 2200°F (1200°C).
Additional polyurethane coating or vermiculite coating will enhance the fabrics unmatched abrasion resistance and tensile strength.
Continuous working temp.: 900°C degree
Short time working temp.: 1200°C degree
Instant working temp.: 1400°C degree
