|Width:||92cm,100cm And 105cm||Color:||Brown|

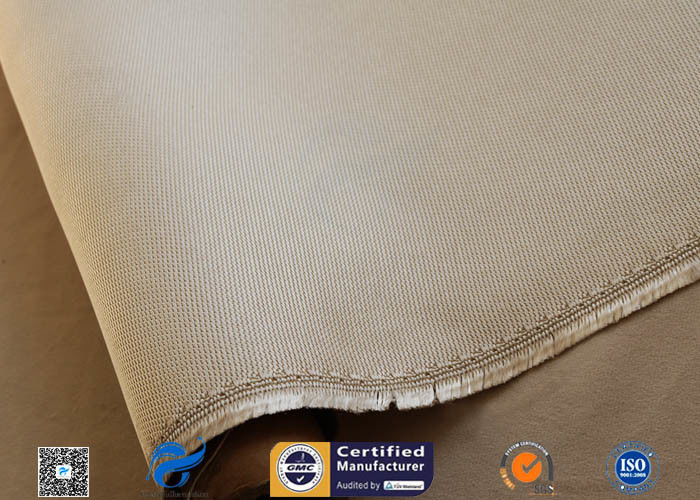

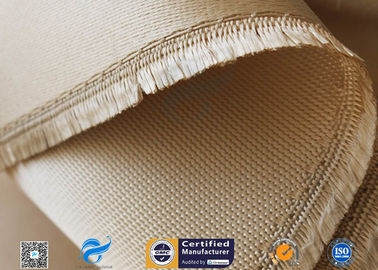

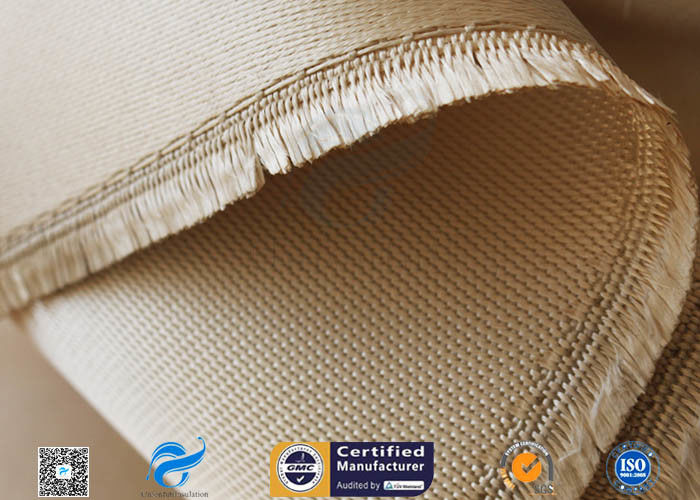

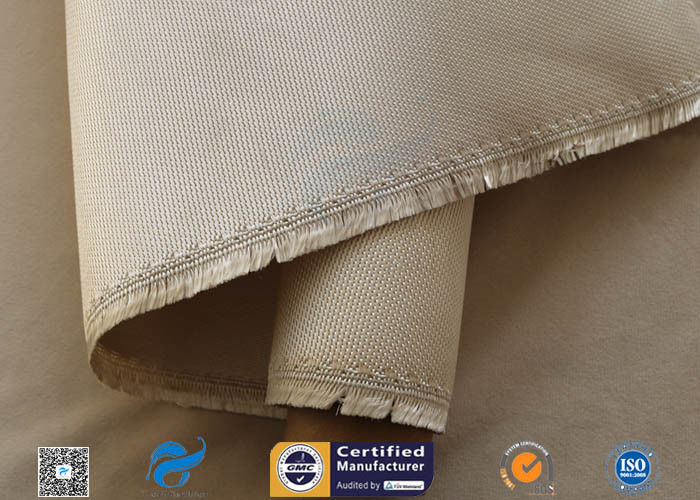

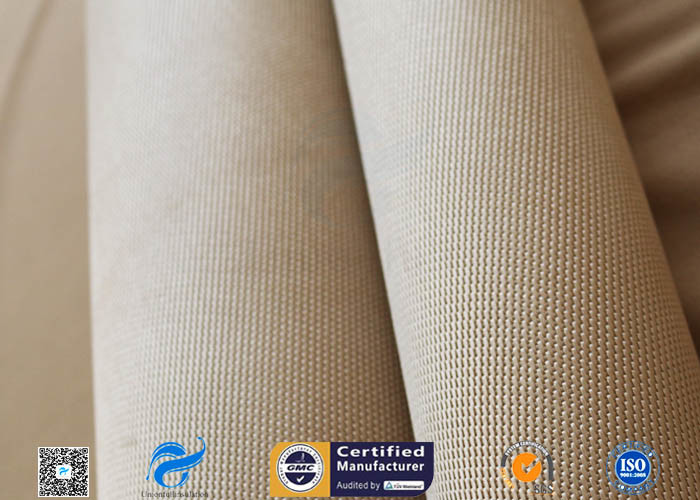

Woven Silica Fabric 1480℉ Temperature Resistant 1.3mm Silica Fiberglass Fabric
With 80-90% silicone contents, 1200gsm silica fabric is able to withstand heat at a high temperature of 1480℉ (800°C) continuously. This fireproof cloth peroforms better than 1050℉ (550℃) e-glass fiberglass fabric. Compared with same strength materials, silica fabric is easier to fabricate and more sofeness.
It is an ideal replacement for asbestos and applied for thermal and electrical insulation in harsh environments.
Silica fabric has two kinds of weave. It can be treated in different ways in order to meet specific purposes. Main products: fireproofing blanket, fireproof curtain, fireproof garments and heat-proof mat.
Standard width of this woven silica fabric is 91.44cm (36 inches), thickness of UPS-8120-92 is 1.3mm(0.05"), area weight at 1050g/m2(31oz/yd2). Its main application includes eat and flame shielding, heat resistant equipment, foundries and power generation, protective material for welding, dust collecting and filtration.
|Area Weight||1050g/m2, 31oz/yd2|
|Long time working temperature service||1480℉(800°C)|
1.Low thermal conductivity
2.Non-asbestos, without pollution
3.Good electrical insulation
4.Shiny, soft but tough
5.Highly heat resistant
6.96% silicone dioxide
7.Soft point up to 1000℃, long period service at 800℃
8.Good process performance
1.Dust collecting and filtration equipment
2.Molten metal splash protection
3.Heat and flame shielding,stress relief,insulation
4.Hose and cable protection and emergency fire blankets
5.Protective material for welding
6.Aircraft firewall insulation
7.Removable insulation jacket
