12HS Silica Fabric Welding Blanket Splash Protection High Silica Cloth Brown

12HS Silica Fabric Welding Blanket Splash Protection High Silica Cloth Brown
12HS Silica Fabric Welding Blanket Splash Protection High Silica Cloth Brown 12HS Silica Fabric Welding Blanket Splash Protection High Silica Cloth Brown 12HS Silica Fabric Welding Blanket Splash Protection High Silica Cloth Brown 12HS Silica Fabric Welding Blanket Splash Protection High Silica Cloth Brown

Large Image :  12HS Silica Fabric Welding Blanket Splash Protection High Silica Cloth Brown

Product Details:

Place of Origin: China
Brand Name: Unionfull
Certification: ISO9001-2008; SGS;TUV
Model Number: UPH-8120-92

Payment & Shipping Terms:

Minimum Order Quantity: 500mters
Price: 10.58~12.88/m
Packaging Details: Woven bag, carton
Delivery Time: 10~15days after got payment
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 8000m2 Per Day
Detailed Product Description
Weave: 12HS Weight: 1250g/m2
Thickness: 1.3mm SiO2 Content: ≥96%
Width: 92cm,100cm And 105cm Color: Brown

12HS Silica Fabric Welding Blanket Splash Protection High Silica Cloth Brown



High silica cloth is a special fiberglass fabric which contains over 96% silicone dioxide. With excellent heat resistance, it can work for 10 minutes at 1450 ° C, and keep well at 1600 ° C for 15 seconds, the melting point is close to 1700 ° C, long period service at 900 ° C. Due to the outstanding capability of high strength, easy processing, heat insulation and ablation resistance, the product is primarily used in firproof work such as welding and burning splash protection.
It is an ideal replacement for asbestos and useful for thermal and electrical insulation in severe application environments.

The fabrics have two kinds of weave. It can be treated in different ways in order to meet specific purposes. Main products: fireproofing curtain, fireproof garments, heat-proof mat, fire blanket and welding blanket.



Typically, silica cloth can be produced at width of 92cm,100cm and 105cm, roll length at 25 or 50meters. UPH-8120-92 is a heavy weight fiberglass cloth weaved by 12HS, and weight at 1250g/m2, so the fabric is smooth, shiny and soft.





Main Specifications



Code

Weight

(g/m2)

Thickness

(mm)

Width(mm) Color Type

UPSS-860-92



500 0.6 920 Brown,white Satin 8HS

UPSH-860-92



600 0.7 920 Brown,white Satin 8HS

UPSS-8120-92



1050 1.3 920 Brown,white Satin 12HS

UPSH-8120-92



1150 1.3 920 Brown,white Satin 12HS

UPSH-860-100



650 0.7 1000 Brown,white Satin 8HS

UPSH-8120-100



1250 1.5 1000 Brown,white Satin 12HS



Product specification:

Items High Silica Cloth
SiO2 ≥96%
Area Weight 1250g/m2, 19oz
Thickness 1.3mm/0.07inch
Color Brown
Weave Type 12HS
Width 92cm/36 inches
Long time working temperature service 900°C



Properties:

1.Low thermal conductivity

2.Non-asbestos, without pollution

3.Good electrical insulation

4.Shiny, soft but tough

5.Highly heat resistant

6.96% silicone dioxide

7.Soft point up to 1700℃, long period service at 900℃

8.Good process performance

Applications:
1.Dust collecting and filtration equipment
2.molten metal splash protection
3.heat and flame shielding,stress relief,insulation
4.hose and cable protection and emergency fire blankets

5.Protective material for welding

6.Aircraft firewall insulation

7.Removable insulation jacket

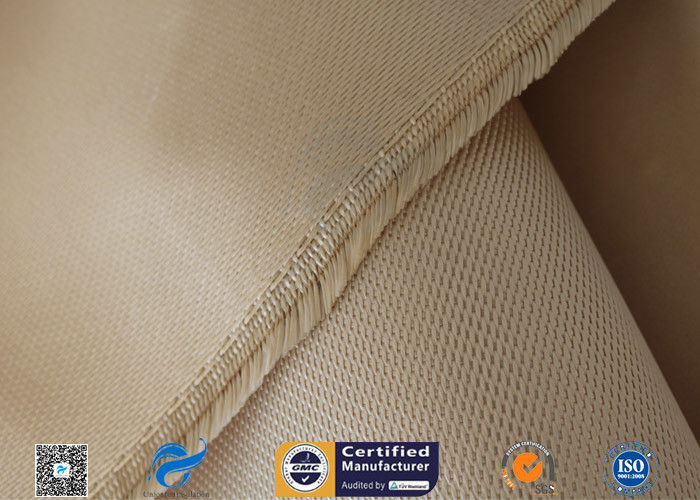

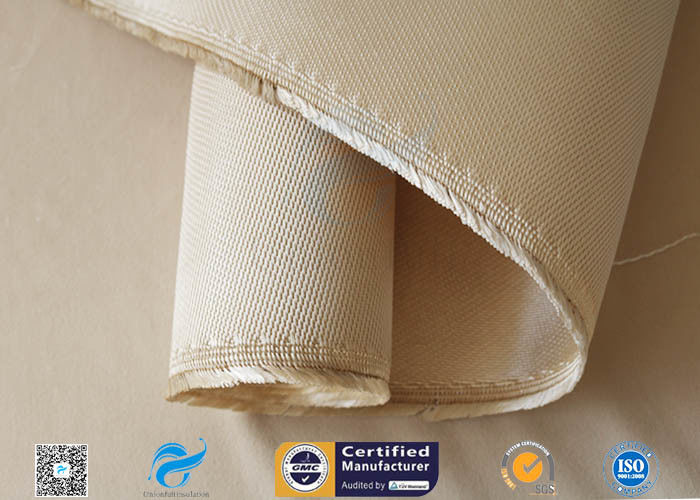

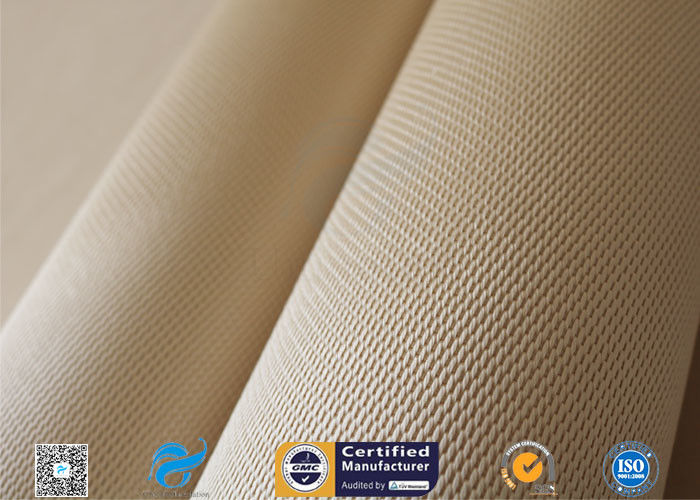

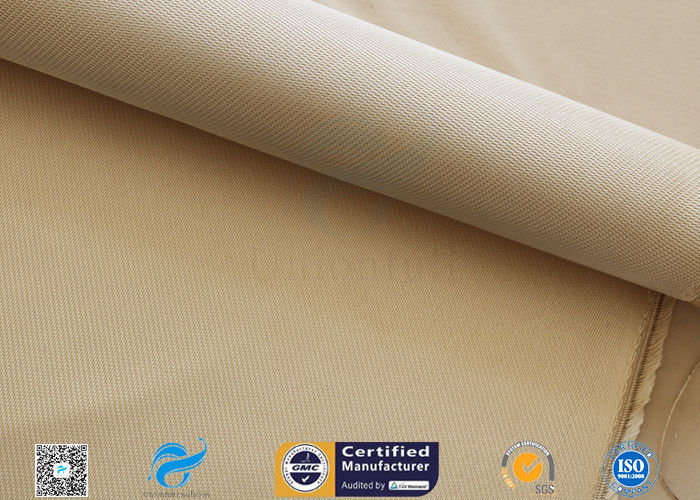

Product picture:

12HS Silica Fabric Welding Blanket Splash Protection High Silica Cloth Brown 012HS Silica Fabric Welding Blanket Splash Protection High Silica Cloth Brown 1
