650g Silica Fireproof Blanket 96% Silicone Dioxide Cloth Protection Garment

China 650g Silica Fireproof Blanket 96% Silicone Dioxide Cloth Protection Garment supplier
650g Silica Fireproof Blanket 96% Silicone Dioxide Cloth Protection Garment supplier 650g Silica Fireproof Blanket 96% Silicone Dioxide Cloth Protection Garment supplier 650g Silica Fireproof Blanket 96% Silicone Dioxide Cloth Protection Garment supplier 650g Silica Fireproof Blanket 96% Silicone Dioxide Cloth Protection Garment supplier

Large Image :  650g Silica Fireproof Blanket 96% Silicone Dioxide Cloth Protection Garment

Product Details:

Place of Origin: China
Brand Name: Unionfull
Certification: ISO9001-2008; SGS;TUV
Model Number: UPH-860-100

Payment & Shipping Terms:

Minimum Order Quantity: 500mters
Price: 6.58~6.88/m
Packaging Details: Woven bag, carton
Delivery Time: 10~15days after got payment
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 8000m2 Per Day
Contact Now
Detailed Product Description
Weave: 8HS Weight: 650g/m2
Thickness: 0.7mm SiO2 Content: ≥96%
Width: 91.44cm, 100cm, 105cm Color: Brown

650g Silica Fireproof Blanket 96% Silicone Dioxide Cloth Protection Garment



Unionfull Group Ltd has been known to manufacture excellent range of High Silica Cloths. The silica cloth contains over 96% silicone dioxide.

With the ability to withstand continuous temperature of 900℃ and most significantly, the long period service of 1400℃, the silica cloth is highly heat resistant. It also performs an outstanding capability of high strength, easy processing, thermal insulation and ablation resistance. High silica cloth has been made to be suitable for rocket and missile manufacturing in the aerospace industries.

Typically, silica cloth can be produced at width of 92cm,100cm and 105cm, roll length at 50meters. UPH-860-100 is a heavy weight fiberglass cloth weaved by 8HS, and weight at 650g/m2, so the fabric is smooth, shiny and soft, meantime it is high strength and abrasion resistance because of the fiberglass yarn.





Main Specifications



Code

Weight

(g/m2)

Thickness

(mm)

Width(mm) Color Type

UPSS-860-92



500 0.6 920 Brown,white Satin 8HS

UPSH-860-92



600 0.7 920 Brown,white Satin 8HS

UPSS-8120-92



1050 1.3 920 Brown,white Satin 12HS

UPSH-8120-92



1150 1.3 920 Brown,white Satin 12HS

UPSH-860-100



650 0.7 1000 Brown,white Satin 8HS

UPSH-8120-100



1250 1.5 1000 Brown,white Satin 12HS



Product specification:

Items High Silica Cloth
SiO2 ≥96%
Area Weight 650g/m2, 19oz
Thickness 0.7mm/0.028inch
Color Brown
Weave Type 8HS
Width 92cm/36 inches
Long time working temperature service 900°C



Properties:

1.Low thermal conductivity

2.Non-asbestos, without pollution

3.Good electrical insulation

4.Shiny, soft but tough

5.Highly heat resistant

6.96% silicone dioxide

7.Soft point up to 1700℃, long period service at 900℃

8.Good process performance

Applications:
1.Dust collecting and filtration equipment
2.molten metal splash protection
3.heat and flame shielding,stress relief,insulation
4.hose and cable protection and emergency fire blankets

5.Protective material for welding

6.Aircraft firewall insulation

7.Removable insulation jacket

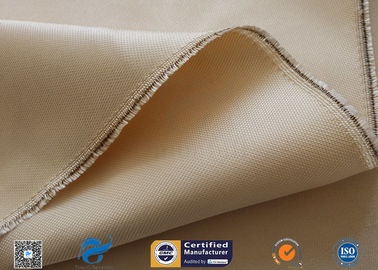

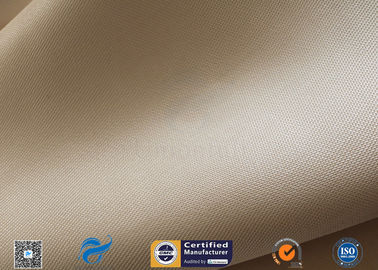

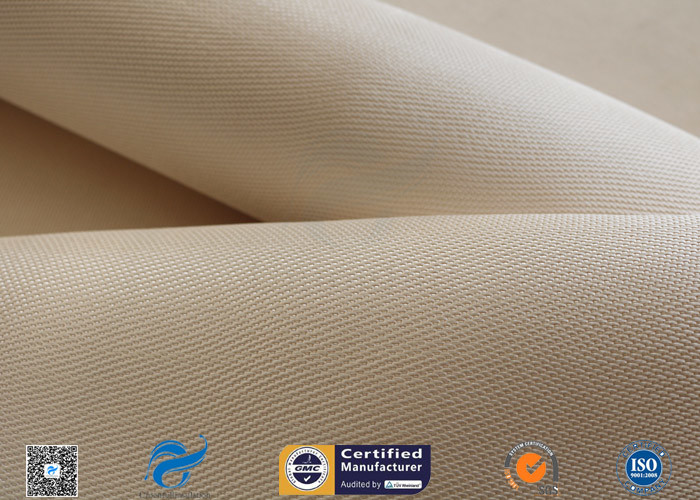

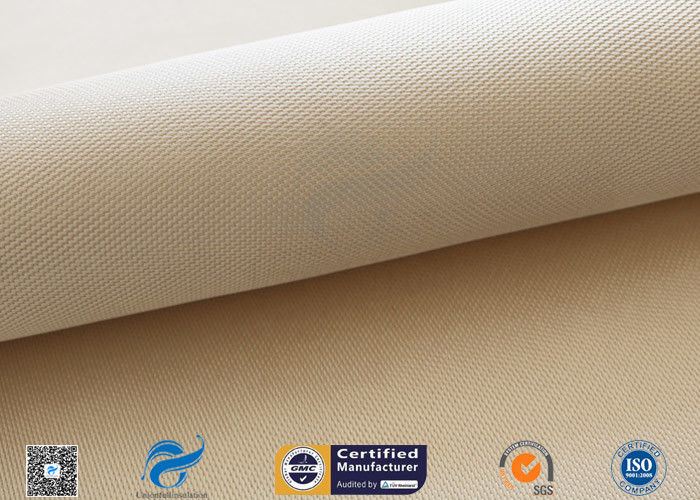

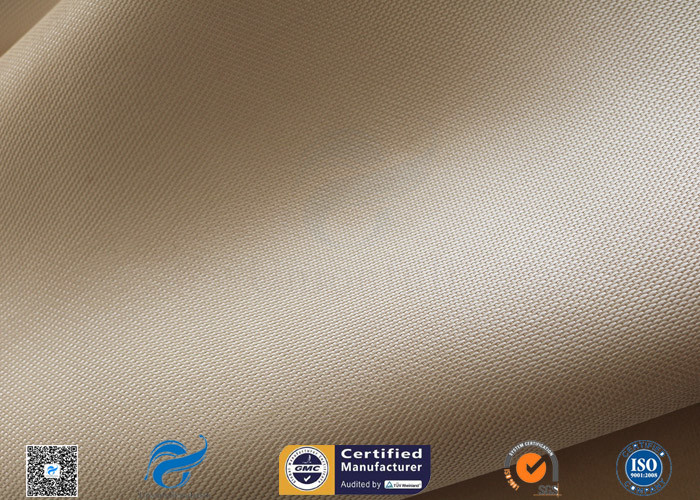

Product picture:

650g Silica Fireproof Blanket 96% Silicone Dioxide Cloth Protection Garment650g Silica Fireproof Blanket 96% Silicone Dioxide Cloth Protection Garment
