Satin Weave PTFE Coated Glass Fibre Fabric 260℃ High Temperature Resistance

China Satin Weave PTFE Coated Glass Fibre Fabric 260℃ High Temperature Resistance supplier
Satin Weave PTFE Coated Glass Fibre Fabric 260℃ High Temperature Resistance supplier Satin Weave PTFE Coated Glass Fibre Fabric 260℃ High Temperature Resistance supplier Satin Weave PTFE Coated Glass Fibre Fabric 260℃ High Temperature Resistance supplier Satin Weave PTFE Coated Glass Fibre Fabric 260℃ High Temperature Resistance supplier

Large Image :  Satin Weave PTFE Coated Glass Fibre Fabric 260℃ High Temperature Resistance

Product Details:

Place of Origin: China
Brand Name: Unionfull
Certification: ISO9001:2008,SGS,SUV
Model Number: UPTG-8732S150

Payment & Shipping Terms:

Minimum Order Quantity: 500 meters
Price: $6.1-7.8/Square Meters
Packaging Details: 1 roll with polybag
Delivery Time: 15 working days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 10000 m2 per day
Contact Now
Detailed Product Description
Type: PTFE Coated Fiberglass Fabric Surface Treatment: PTFE Coated
Weave Type: Satin Weight: 580g/m2
Width: 1500mm Standing Temperature: -70℃~ 260℃
Color: Grey Good Features: Heat Resistant

260℃ High Temperature Resistance PTFE Coated Fiberglass Fabric



Product Introduction



PTFE coated fiberglass fabrics consist of satin weave fibreglass cloth, which has been coated with PTFE. It has excellent chemical resistance and temperature exposure capabilities. It is mainly used in petrochemical and aluminum industries.



Product Specification



Fiber Type of the Base Fabric 3732 Fiberglass Fabric
Type of Coating PTFE coated on single side
Weave Stain
cloth thickness 0.43mm
cloth Weight 430g/m2
Coated Fabric Weight 580g/m2
Coated Fabric Thickness 0.43 ± 0.03
Strip Tensile
Warp/Fill (min)
3450/2280 N/5cm
Tearing Strength
Warp/Fill (Min)
49/47 N/5cm
Temperature resistance 260℃



Features



1. Cost-effective and high-performance

2. From -70° C to + 260 ° C

3. Chemical resistanceFood processing meets

4. FDA regulations



Application



1. Separator for processing uncured rubber

2. Food baking dish

3. Gaskets, seals and bearings for chemical, oil and gas

4. Cover hot plate, flat, slot, hopper, and roll

5. Processing of paper, plastic, metal foil and cloth

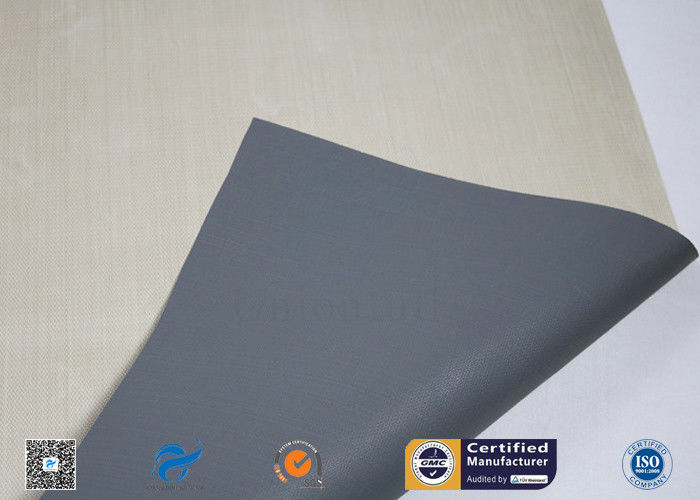

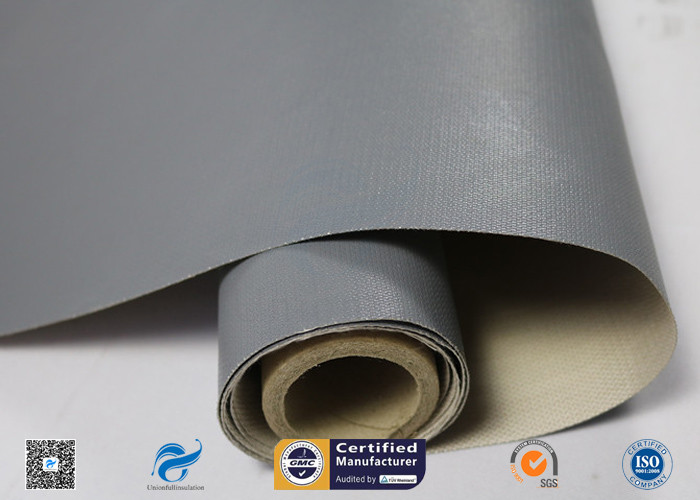

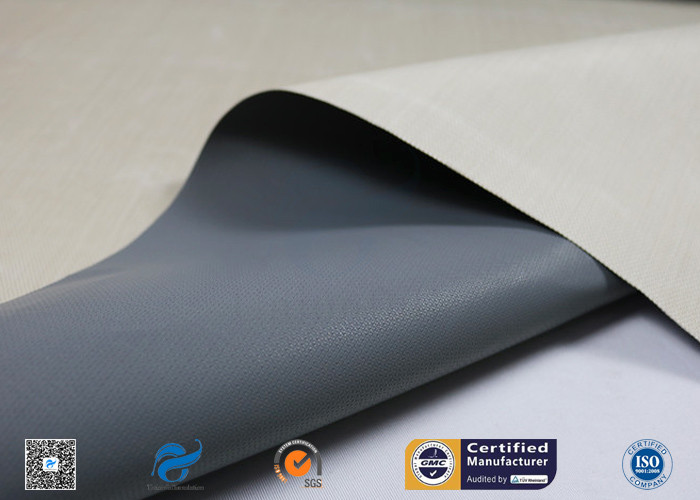

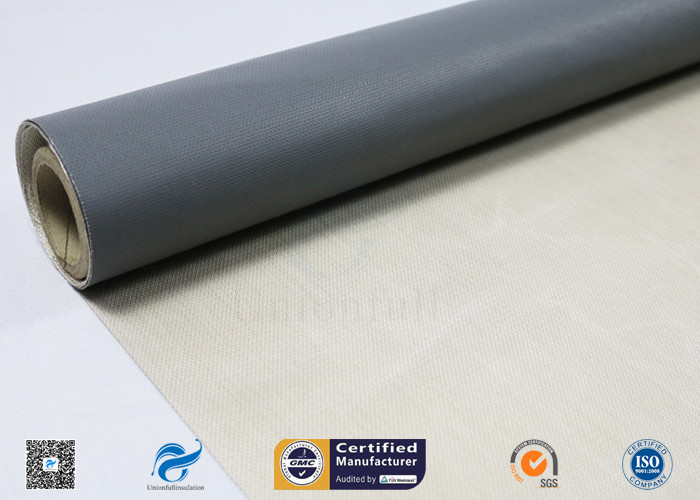

Pictures



Satin Weave PTFE Coated Glass Fibre Fabric 260℃ High Temperature Resistance



Satin Weave PTFE Coated Glass Fibre Fabric 260℃ High Temperature Resistance
