Place of Origin: | China |
---|---|
Brand Name: | Unionfull |
Certification: | FDA,CE,ISO9001 |
Model Number: | UPTTB-8018 |
Minimum Order Quantity: | 1 roll |
Price: | $1.15--$4.6/m2 |
Packaging Details: | 1 roll with 1 poly bag+woven bag |
Delivery Time: | 10 days after receiving the payment |
Payment Terms: | L/C, D/A, D/P, T/T, Western Union |
Supply Ability: | 2000 meters per day |
Weave Type: | Plain Woven | Weight: | 380g/m2 |
---|---|---|---|
Width: | 1000mm | Standing Temperature: | -70℃~ 260℃ |
Surface Treatment: | PTFE Coated | Color: | Brown |
Good Features: | Non-stick | Roll Length: | 50m |
Highlight: | ptfe coated glass fibre fabric,ptfe coated fiberglass cloth |
Heat Insulation Fireproof PTFE Coated Fiberglass Fabric Adhesive Tapes
Product Introduction
PTFE bonded fabrics and tapes are known for their smooth surfaces, nonadhesion, chemical and high temperature resistance, and insulation properties. Widely used in packaging, thermoplastic composite, sealing, electrical and other industries. Polytetrafluoroethylene adhesive fibers enhance the tensile strength of glass fiber fabrics. It can be used for plastic molding and other applications, is reusable and easy to install.
Product Specification
No. | Color | Thickness±0.02(mm) | Weight of Fiberglass(g/m2)±3% | Total weight (g/m2)±3% | Width (m) | Temperature(ºC) |
UPTTB-8018 | Brown | 0.18 | 300 | 380 | 1 | -70-260 |
Features
1. High temperature resistable,strong anti- corrosion property(by this advantage,it can be used for dyeing)
2. Good anti stick property on surface (by this,it can be used for demoulding)
3. Good viscosity.long service time. 18N to 22N force is needed to remove a 4cm width belt which is adhered to steel plate.
(Coefficient of viscosity can be customized according to different requirements).
Application
1. As coatings of high-temperature roller,heating plate,demoulding unit.
2. Heat- sealing materials for food,medicines and plastic bag.
3. As gaskets of trough,hopper,aviation molds.
4. Other fields in which surface treatment is needed to reach anti- stick,
anti-corrosion and high temperature resistance properties.
5. For pacdaging,thermoplastic,composites,heat sealing.electrical
and electronic industries.

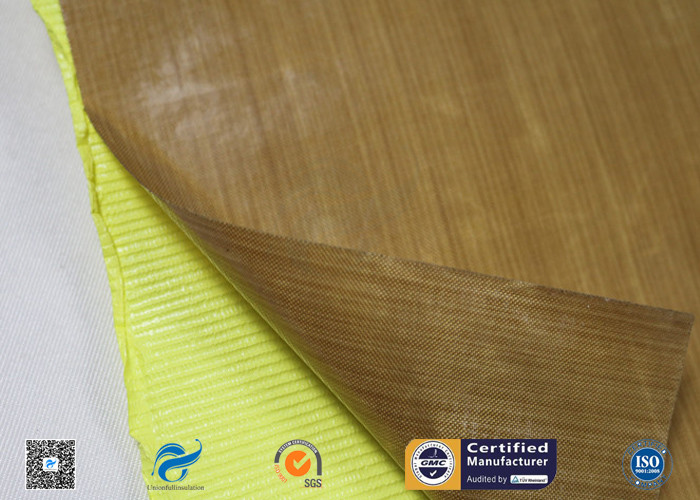

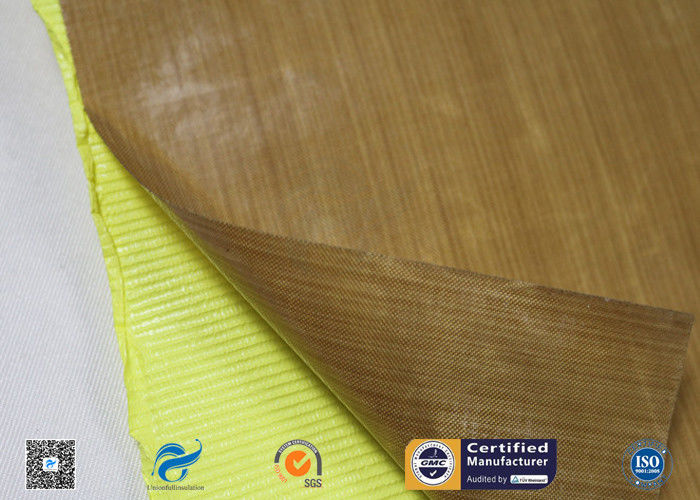

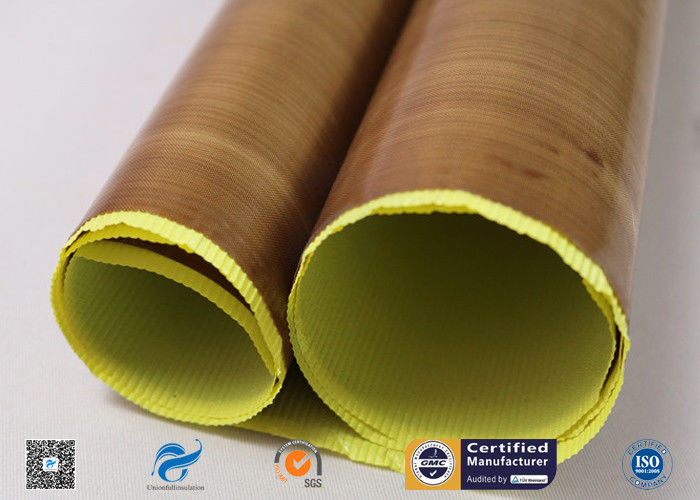

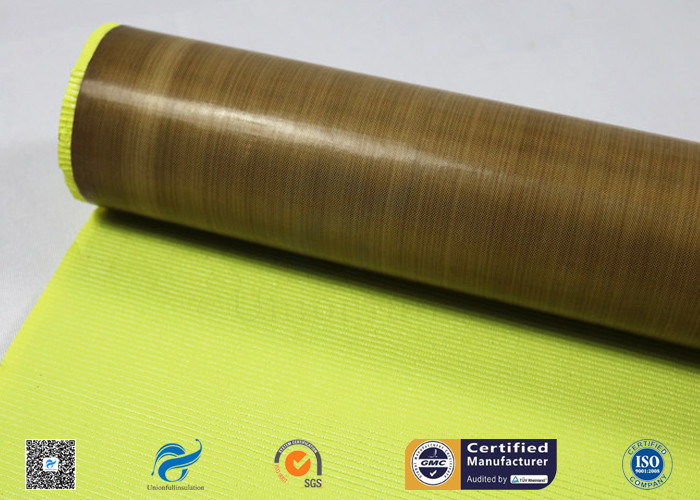

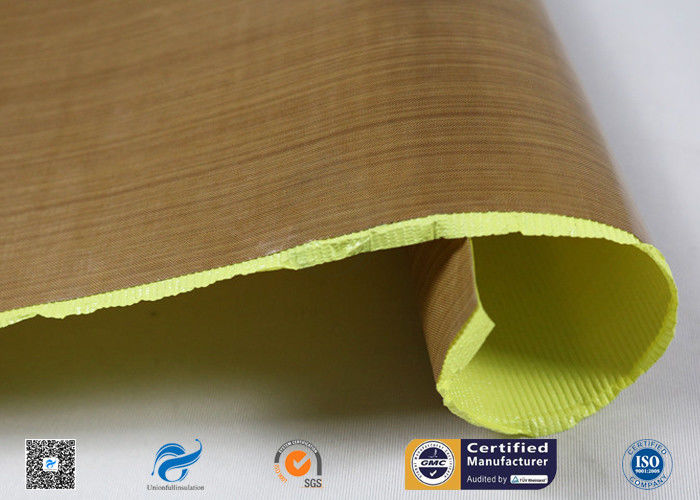

Pictures
