Heat Resistant 1050g Brown High Silica Fiberglass Fabric Fireproof

Heat Resistant 1050g Brown High Silica Fiberglass Fabric Fireproof
Heat Resistant 1050g Brown High Silica Fiberglass Fabric Fireproof Heat Resistant 1050g Brown High Silica Fiberglass Fabric Fireproof Heat Resistant 1050g Brown High Silica Fiberglass Fabric Fireproof Heat Resistant 1050g Brown High Silica Fiberglass Fabric Fireproof

Large Image :  Heat Resistant 1050g Brown High Silica Fiberglass Fabric Fireproof

Product Details:

Place of Origin: China
Brand Name: Unionfull
Certification: ISO9001:2008,SGS
Model Number: UPH-8120-92

Payment & Shipping Terms:

Minimum Order Quantity: 500 Meters
Price: $9.99--$12/ meter
Packaging Details: 50m one roll in carton
Delivery Time: 15 days after payment
Payment Terms: L/C, T/T, Western Union
Supply Ability: 50,000 Square Meters Per Day
Detailed Product Description
Item: High Silica Fabric Keyword: High Temperature Silica Cloth
Color: Brown Alkali Content: Alkali Free
Yarn Type: E-Glass Width: 920mm
Thickness: 1.30mm Weave: 8 Harness Satin
Standing Temperature: 900℃ Good Features: High Temperature Resistant,Flame Resistance,Fireproof
High Light:

High Silica Cloth

,

High Silica Glass Fiber

Heat Resistant 1050g Brown High Silica Fiberglass Fabric Fireproof



High silica fiberglass is a special fiberglass fabric that contains more than 96% silica (SiO2). With excellent heat resistance, it can withstand continuous operating temperatures up to 1000°C and peak temperatures up to 1500°C. It provides excellent spark and slag protection and is ideal for the aerospace industry, stress relief, stainless steel welding and equipment protection. It also has excellent performance in low thermal shrinkage, low thermal conductivity, electrical insulation, asbestos free and no pollution.



Data



Continuous Operating Temp. 900℃
Highest short exposure temp. 1450°C work 10 minutes
SiO2 Purity ≥96%
Width (mm) 920mm
Rated Voltage 10KV
Structure blanket is braided of high silica
Reactions Resists most acids, oil & water
Clasp and zipper can be added if in need.
Design Capabilities Keep the stable strength and ductility even continuous exposed under high temperature
Application Widely used in metallurgy, electricity, coal, air and chemical industrial



Performance



1. extremely high temperature service performance

2. low thermal shrinkage and low thermal conductivity

3. stable chemical ability

4. good electrical insulation

5. no pollution



Benefits of the feature



1. The softening point is close to 1700oC. It can be used in 900℃ environment for a long time. It can work for 10 minutes at 1450oC and 15 seconds at 1600oC, and can immediately withstand thousands of degrees of airflow brush.

2. in organic and inorganic acids (except hydrofluoric acid, phosphoric acid and hydrochloric acid) can maintain good performance and stability even in high temperature, weak alkaline solution.

3. can meet thermal shock and high radiation, high stability, excellent insulation performance under high temperature and high humidity conditions, and good adhesion with high temperature adhesive.

4. resistant to moisture, sunlight and earthquake resistance, can be used in a variety of sealing materials, structurally strong, to maintain flexibility under a variety of high temperature conditions.

5. the structural performance is stable, no harm to the human body, can replace ceramic fiber and asbestos fiber (phase change occurs at high temperature crystallization).

6. high temperature and fire resistance, burning in gasoline without oxidation, no discoloration, high strength, no secondary pollution.

7. has good wear resistance and insulation.



Application



1. High temperature resistant, insulating, sealing material

2. High temperature ablation material

3. Fireproof materials (fire protective clothing, fire curtains, fire blankets)

4. Dust removal in high temperature gaseous media and filtration in high temperature liquid media

5. Molten metal filter

6. Automobile, motorcycle filter, insulation, filtration

7. Welding protective material

8. Electrical insulation material



Pictures

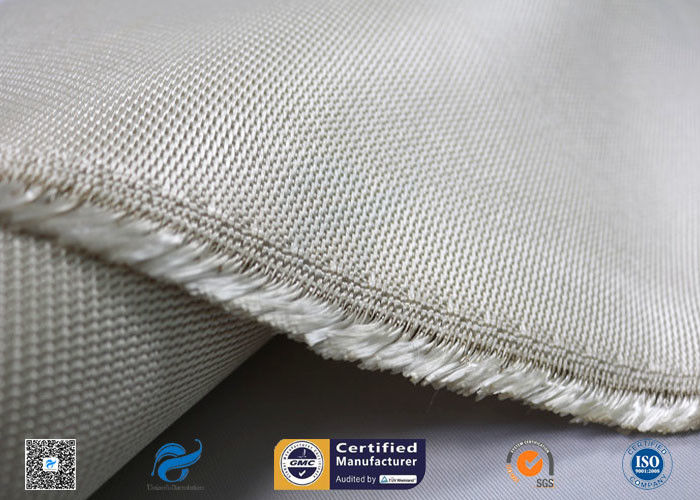

Heat Resistant 1050g Brown High Silica Fiberglass Fabric Fireproof 0

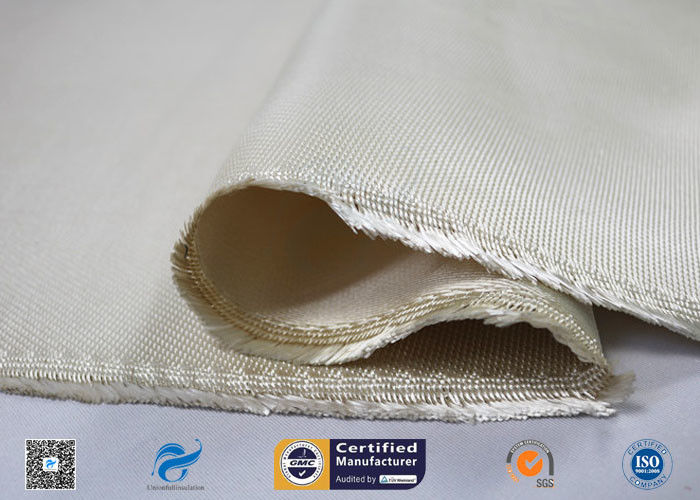

Heat Resistant 1050g Brown High Silica Fiberglass Fabric Fireproof 1
