0.7mm Grey Silicone Coated Fabric / High Temperature Resistant High Silica Cloth

China 0.7mm Grey Silicone Coated Fabric / High Temperature Resistant High Silica Cloth supplier
0.7mm Grey Silicone Coated Fabric / High Temperature Resistant High Silica Cloth supplier 0.7mm Grey Silicone Coated Fabric / High Temperature Resistant High Silica Cloth supplier 0.7mm Grey Silicone Coated Fabric / High Temperature Resistant High Silica Cloth supplier 0.7mm Grey Silicone Coated Fabric / High Temperature Resistant High Silica Cloth supplier

Large Image :  0.7mm Grey Silicone Coated Fabric / High Temperature Resistant High Silica Cloth

Product Details:

Place of Origin: China
Brand Name: Unionfull
Certification: ISO9001:2008,SGS,TUV
Model Number: UPSH-860D200

Payment & Shipping Terms:

Minimum Order Quantity: 500 Meters
Price: $4.25--10.8/M2
Packaging Details: 1 Roll with 1 Woven Bag
Delivery Time: 15 Days After Receiving The Payment
Payment Terms: L/C, T/T, Western Union
Supply Ability: 10000 square meters per day
Contact Now
Detailed Product Description
Surface Treatment: Silicon Coated Type: High Silica Fabric
Yarn Type: E-Glass Weight: 850g/m2
Thickness: 0.7mm Width: 920mm
Color: Grey SiO2 Content: >96%

0.7mm Grey Silicone Coated Fabric / High Temperature Resistant High Silica Cloth



Introduce



High silica glass fiber fabric is a kind of high performance and multifunction composite materials, it's widely used in Aerospace, Chemical, Petroleum, Large Power Generation Equipment, Machinery, Metallurgy, Electrical Insulation, Building, Transportation and other fields.



Technical Data



Code UPSH-860D200
Weight 850g/m2
Thickness 0.7mm
Density 19*11/cm
Yarn type E-glass
Weave type Satin
Fiberglass Yarn Warp:33*4 Weft:33*4
Width 0.92m
Length 50m
Packing Each roll packed in woven bag
MOQ 500m
20' container quantity 388 rolls


Properties


1. Superb electric insulation
2. Good heat and cold resistance
3. Nice sealing property;
4. Inert to majority of chemical reagents
5. Water repellent and oil repellent
6. Soft and pliable, easy to tailor and good processing performance
7. Working temperature can be increased up to 1000 with the substrate of high silica fiberglass fabric

Applications


1. High temperature resistant, insulation and sealing material
2. High temperature ablation resistant material
3. Fireproof material (for fireproof protective clothe, fireproof curtain, fire blanket)
4. Dust collecting in media of high temperature gas and filtration in media of high temperature liquid
5. Filter for molten metal
6. Distinguisher, insulation material, filtration of automobile and motorcycle
7. Protective material for welding



Pictures

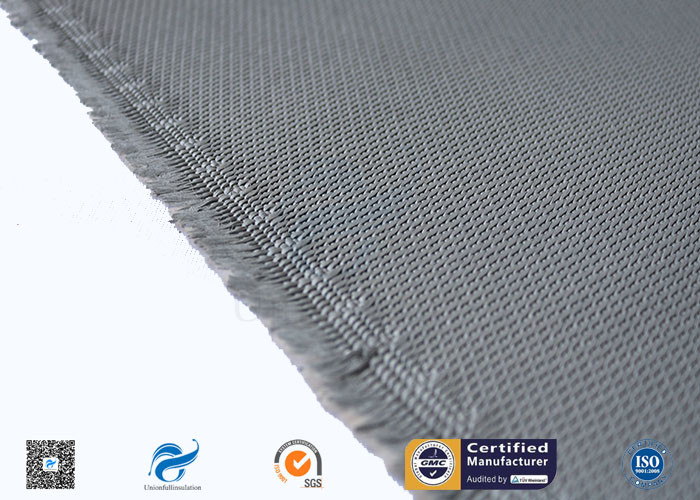

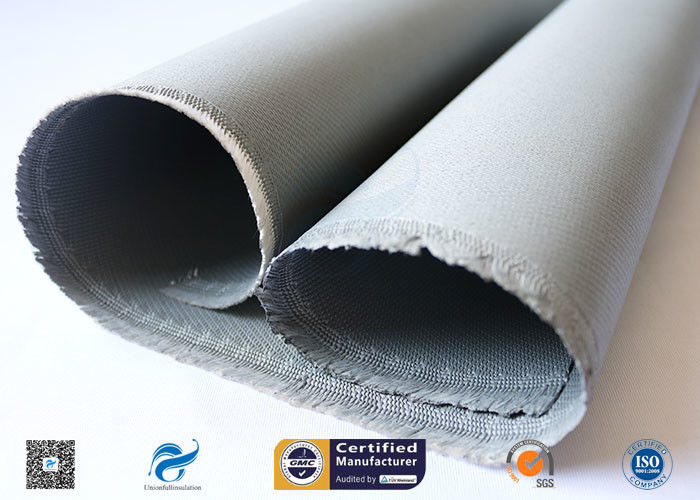

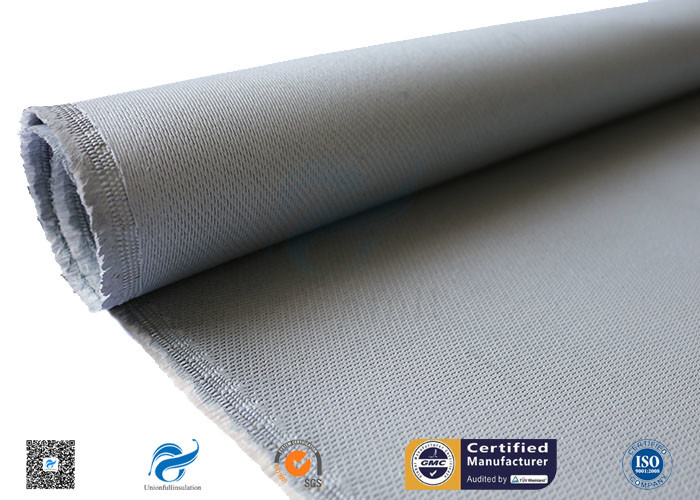

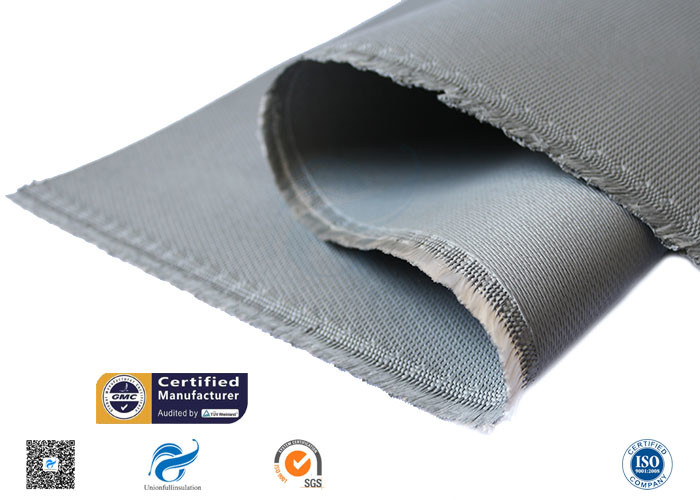

0.7mm Grey Silicone Coated Fabric / High Temperature Resistant High Silica Cloth



0.7mm Grey Silicone Coated Fabric / High Temperature Resistant High Silica Cloth
