Heat Resistant Red Silicone Coated Fiberglass Cloth Double Sides 1.3mm

Heat Resistant Red Silicone Coated Fiberglass Cloth Double Sides 1.3mm
Heat Resistant Red Silicone Coated Fiberglass Cloth Double Sides 1.3mm Heat Resistant Red Silicone Coated Fiberglass Cloth Double Sides 1.3mm Heat Resistant Red Silicone Coated Fiberglass Cloth Double Sides 1.3mm Heat Resistant Red Silicone Coated Fiberglass Cloth Double Sides 1.3mm Heat Resistant Red Silicone Coated Fiberglass Cloth Double Sides 1.3mm Heat Resistant Red Silicone Coated Fiberglass Cloth Double Sides 1.3mm Heat Resistant Red Silicone Coated Fiberglass Cloth Double Sides 1.3mm Heat Resistant Red Silicone Coated Fiberglass Cloth Double Sides 1.3mm Heat Resistant Red Silicone Coated Fiberglass Cloth Double Sides 1.3mm Heat Resistant Red Silicone Coated Fiberglass Cloth Double Sides 1.3mm Heat Resistant Red Silicone Coated Fiberglass Cloth Double Sides 1.3mm Heat Resistant Red Silicone Coated Fiberglass Cloth Double Sides 1.3mm
Basic Information
Place of Origin: China
Brand Name: Unionfull
Certification: ISO9001:2008,SGS,UV
Model Number: UPSH-8120D200
Minimum Order Quantity: 500 Meters
Price: $3.25--5.8/M2
Packaging Details: 1 Roll with 1 Woven Bag
Delivery Time: 26 Working Days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 5000 square meters per day
Get Best Price Contact Now
Item: High Silica Fabric Yarn Type: E-Glass
Coating: Silicon Coated Width: 920mm
Weight: 1450g/m2 Thickness: 1.3mm
Highlight:

High Silica Cloth

,

High Silica Glass Fiber

Heat Resistant Double Sides Red Silicone Coated High Silica Fabric

Product Introduction

High silica Silicone coated fiberglass fabric/cloth is glass fiber as reinforcement of silicone elastomeric material and high molecular polymer, also known as thermal silicone cloth, anti tearing silicone. the silica gel cloth can effectively reduce the thermal resistance between the electronic component and the radiator. It has good characteristic of electrical insulation, high dielectric strength, good thermal conductivity, high resistance chemical properties, in addition, It can withstand problem of short circuit of high voltage and metal piercing , and is an excellent thermal conductive insulation material to instead of the traditional mica and silicone grease.

Data

Thread count wrap 16.5end/cm
Thread count weft 13.8end/cm
Width 920mm
Roll length 50m
Weight 1450g/m2
Weave Satin
Impregnated Silicone
Color red
Thickness 1.3mm

Advantages

1. Dielectric strength high
2. Good thermal conductivity
3. Good toughness, tear resistance
4. Surface soft, no viscosity on surface
5. High voltage insulation performance

Applications

1. Military, aviation
2. Large power source
3. Heating power device
4. Automobile electronic heating module
5. Motor control, communication equipment

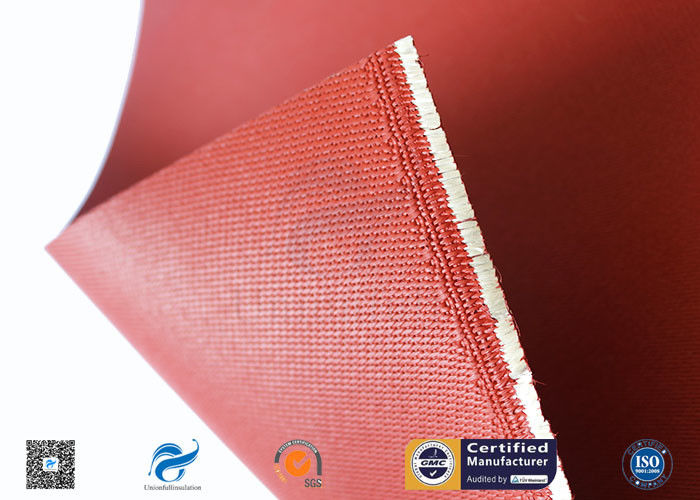

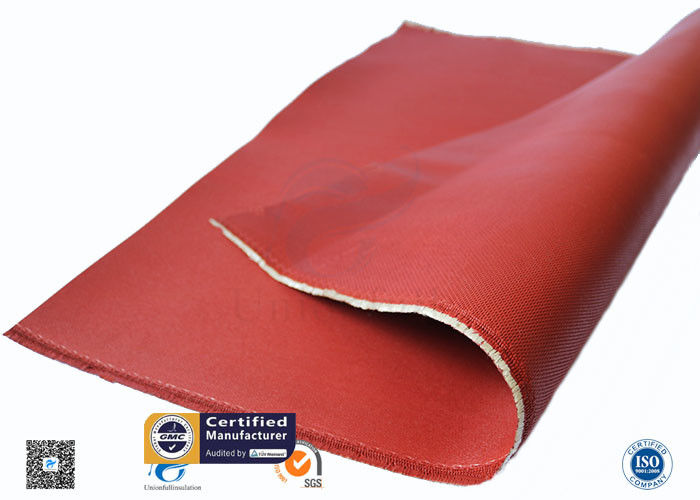

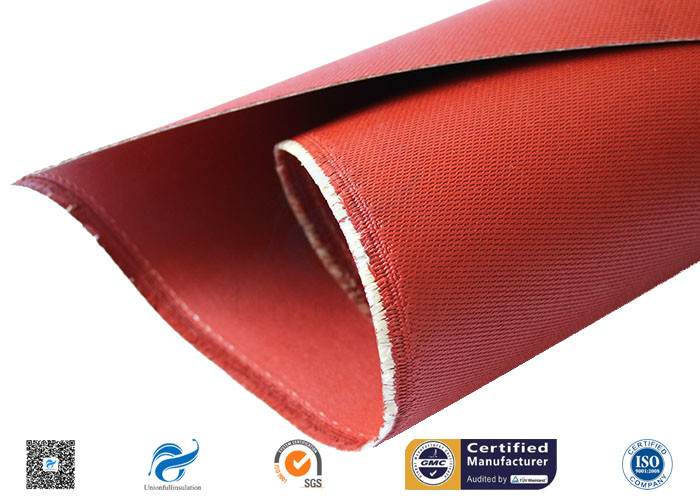

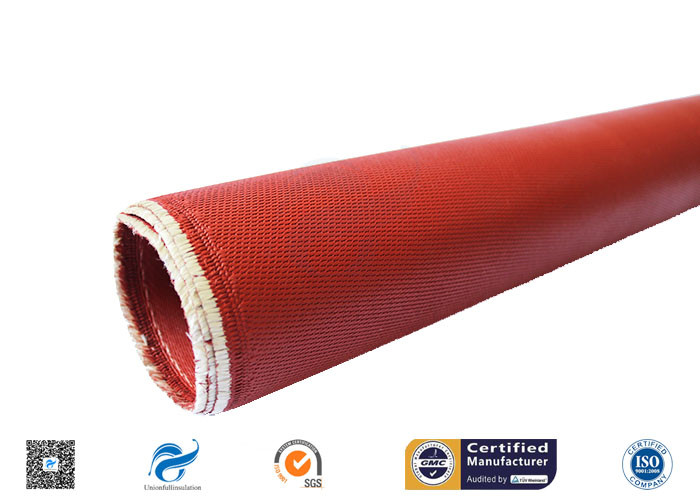

Pictures

Heat Resistant Red Silicone Coated Fiberglass Cloth Double Sides 1.3mm 0Heat Resistant Red Silicone Coated Fiberglass Cloth Double Sides 1.3mm 1

Tag:

High Silica Cloth,

High Silica Glass Fiber,

silica fiberglass
