4X4MM Black PTFE Coated Fiberglass Mesh Fabric Conveyor Belt Heat Sealer

China 4X4MM Black PTFE Coated Fiberglass Mesh Fabric Conveyor Belt Heat Sealer supplier
4X4MM Black PTFE Coated Fiberglass Mesh Fabric Conveyor Belt Heat Sealer supplier 4X4MM Black PTFE Coated Fiberglass Mesh Fabric Conveyor Belt Heat Sealer supplier 4X4MM Black PTFE Coated Fiberglass Mesh Fabric Conveyor Belt Heat Sealer supplier 4X4MM Black PTFE Coated Fiberglass Mesh Fabric Conveyor Belt Heat Sealer supplier

Large Image :  4X4MM Black PTFE Coated Fiberglass Mesh Fabric Conveyor Belt Heat Sealer

Product Details:

Place of Origin: China
Brand Name: Unionfull
Certification: ISO9001:2008, SGS; FDA
Model Number: UNP8580TMB-44-220

Payment & Shipping Terms:

Minimum Order Quantity: 100 meters
Price: $4.6--10 / sqaure meter
Packaging Details: 1 roll 50 meters in carton
Delivery Time: 2 weeks after receiving payment
Payment Terms: L/C, T/T, Western Union
Supply Ability: 46,000 Square Meters Per Day
Contact Now
Detailed Product Description
Material: Fiberglass Open Mesh Coating: Food Grade PTFE
Weight: 480gsm Width: 2.2m
Roll Length: 16 Meters, Customzied Temperature: 260℃

4X4MM Black PTFE Coated Fiberglass Mesh Fabric Conveyor Belt Heat Sealer



Industrial conveyor belts are used in various industrial applications from electroplating to the food industry, at cleanroom in the electronic and at manufacturing of solar wafers. It is heat resistance (short term up to 300°C, 260°C continuously), chemical acids and alkalis resistant, high tensile strength.



Material of conveyor belt is fiberglass open mesh roll impregnated with black color (food grade) PTFE. Open mesh sizes range from 1mmx1mm to 10mmx10mm. Common used open mesh size is 4x4mm. This 4x4mm mesh fabric is 480g/m2 (about 14.16oz). Fiberglass open mesh fabric is flame resistant, durable, abrasion resistant and oil resistant.



Features



  • -50°C to 260°C
  • High mechanical tensile strength
  • Dimension stability
  • Non stick, non toxic
  • Anti chemical agents
  • Corrosion resistance
  • Anti UV, weather



Specification



Edge Reinforcement: PTFE film or PTFE coated fiberglass fabric

Common Joint: bull nose joint



Mesh Size Material Thickness Weight Temperature Max Width
1x 0.5mm Fiberglass 0.65mm 560g /m 2 -70 -260 ℃ 3.25m
1x 1mm Fiberglass 0.65mm 520g /m 2 -70 -260 ℃ 3.55m
2x 2.5mm Fiberglass 0.7mm 640g /m 2 -70 -260 ℃ 3.65m
4x 4mm Fiberglass 1.0mm 580g /m 2 -70 -260 ℃ 4.2m
4x 4mm Fiberglass 1.3mm 740g /m 2 -70 -260 ℃ 3.85m
10x 10mm Fiberglass 0.9mm 415g /m 2 -70 -260 ℃ 3.55m
4x 4mm Kevlar+Fiberglass 1.5mm 934g /m 2 -70 -260 ℃ 2.75m
4x 4mm Kevlar 1.2mm 600g /m 2 -70 -260 ℃ 4m



Applications



  • Tortilla presses
  • Heat resistant conveyor belt
  • Dryer belt replacement
  • Side and base sealing auto pack machines
  • Screen printing conveyor dryer
  • Conveyor belt heat resistant



Pictures

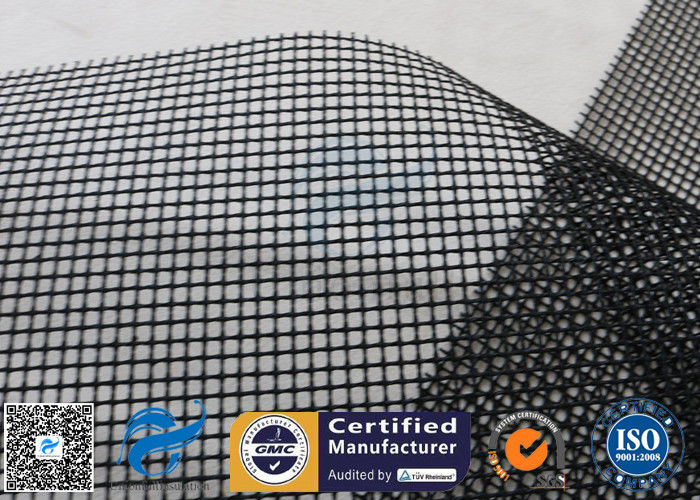

4X4MM Black PTFE Coated Fiberglass Mesh Fabric Conveyor Belt Heat Sealer

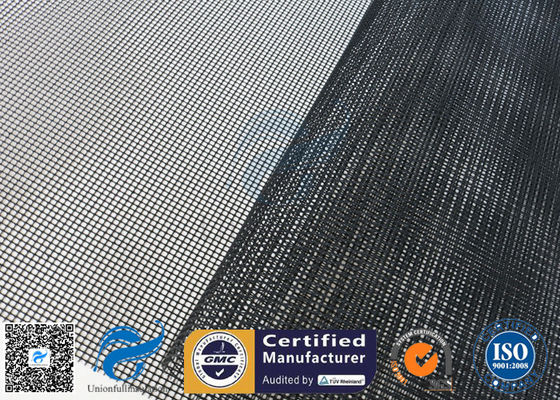

4X4MM Black PTFE Coated Fiberglass Mesh Fabric Conveyor Belt Heat Sealer
