| Place of Origin: | China |
|---|---|
| Brand Name: | Unionfull |
| Certification: | ISO9001:2008, SGS;TUV |
| Model Number: | UNP8580TMB-44-190 |
| Minimum Order Quantity: | 100M |
| Price: | $4.6--10 / sqaure meter |
| Packaging Details: | 1 roll in carton |
| Delivery Time: | 2 weeks after receiving payment |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 47,000 Square Meters Per Day |
| Mesh: | 4x4MM | Base: | Fiberglass Mesh |
|---|---|---|---|
| Area Weight: | 580g/m2 | Coating: | PTFE |
| Roll Length: | 50 Meters | Work Temperature: | ＜ 260℃ Continuously |
| High Light: | ptfe coated glass fibre fabric,ptfe coated fiberglass cloth |
||

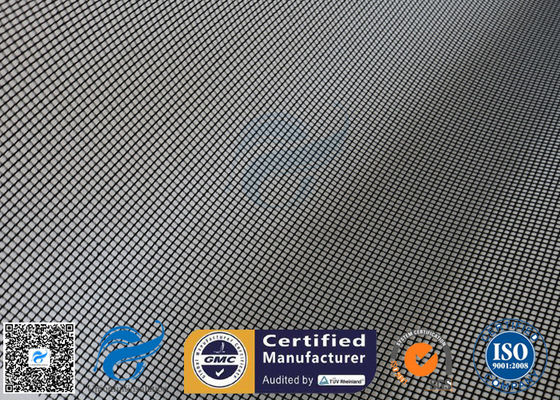

260℃ PTFE Coated Fiberglass Mesh Fabric Black 4x4 Industrial Conveyor Belt Roll
Fiberglass mesh fabric impregnated with black color PTFE is ideal material of industrial conveyor dryer belt. 4x4 mesh size is very common used one. This belt is weighed at 580g/m2 (about 17oz/sq.yd). Fiberglass mesh belt is fire resistant, chemical resistant and non stick. Other compounds won't stick on the conveyor belt. Heat resistant work temperature is -50 to 260℃.
Features
Specification
| Mesh Size | Materials | Thickness | Weight | Temperature | Width(max) |
| 1x 0.5mm | Fiberglass | 0.65mm | 560g /m 2 | -70 -260 ℃ | 3.25m |
| 1x 1mm | Fiberglass | 0.65mm | 520g /m 2 | -70 -260 ℃ | 3.55m |
| 2x 2.5mm | Fiberglass | 0.7mm | 640g /m 2 | -70 -260 ℃ | 3.65m |
| 4x 4mm | Fiberglass | 1.0mm | 580g /m 2 | -70 -260 ℃ | 4.2m |
| 4x 4mm | Fiberglass | 1.3mm | 740g /m 2 | -70 -260 ℃ | 3.85m |
| 10x 10mm | Fiberglass | 0.9mm | 415g /m 2 | -70 -260 ℃ | 3.55m |
| 4x 4mm | Kevlar+Fiberglass | 1.5mm | 934g /m 2 | -70 -260 ℃ | 2.75m |
| 4x 4mm | Kevlar | 1.2mm | 600g /m 2 | -70 -260 ℃ | 4m |
Applications
Pictures
