Unionfull® China Thermal Insulation Products Supplier | Thermal Materials - High Silica Cloth - Thermal Insulating Fiberglass Fabrics
| Place of Origin: | China |
|---|---|
| Brand Name: | Unionfull |
| Certification: | ISO9001:2008, SGS; FDA |
| Model Number: | UNP8580TMB-44-190 |
| Minimum Order Quantity: | 100M |
| Price: | $4.6--10 / sqaure meter |
| Packaging Details: | 1 roll in carton |
| Delivery Time: | 15 working days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union |
| Supply Ability: | 40,000 Square Meters Per Day |
| Mesh: | 4*4mm | Material: | Fiberglass Open Mesh |
|---|---|---|---|
| Weight: | 580g/m2 | Coating: | Food Grade Polytetrafluoroethylene |
| Length: | Customized | Temperature: | 260 Degree Centigrade |
| High Light: | ptfe coated glass fibre fabric,ptfe coated fiberglass cloth |
||

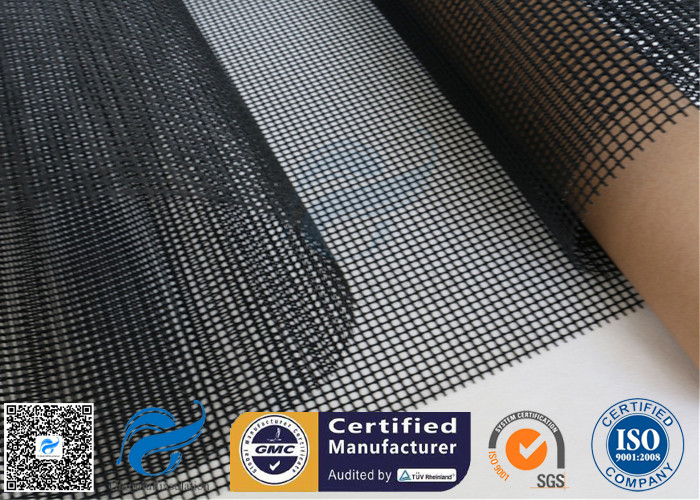

4*4 PTFE Coated Fiberglass Mesh Fabric 580GSM Black Tortilla Press Conveyor Belt
Food grade conveyor belt is made of fiber glass open mesh fabric which is impregnated with food grade PTFE. Common mesh size is 4x4mm open mesh. This black mesh fabric is weighed at 580g/m2 and 1mm thick. Fiberglass mesh is durable, abrasion resistant, chemical resistant and corrosion resistant. Due to its heat&flame resistant and non toxic property, it is widely used for food industry use.
Continuous work temperature of fiberglass conveyor belt is -50 to 260℃. With non stick PTFE coating, other chemical agents like silicone rubber won't stick on the mesh belt. And it is easy to clean the mesh fabric by soapy water.
Features
Specification
Open mesh size: 1mmx1mm, 2mmx2.5mm, 4mmx4mm and 10mmx10mm
Edge Reinforcement: PTFE film or PTFE coated fiberglass fabric
Common Joint: bull nose joint
| Mesh Size | Materials | Thickness | Weight | Temperature | Width(max) |
| 1x 0.5mm | Fiberglass | 0.65mm | 560g /m 2 | -70 -260 ℃ | 3.25m |
| 1x 1mm | Fiberglass | 0.65mm | 520g /m 2 | -70 -260 ℃ | 3.55m |
| 2x 2.5mm | Fiberglass | 0.7mm | 640g /m 2 | -70 -260 ℃ | 3.65m |
| 4x 4mm | Fiberglass | 1.0mm | 580g /m 2 | -70 -260 ℃ | 4.2m |
| 4x 4mm | Fiberglass | 1.3mm | 740g /m 2 | -70 -260 ℃ | 3.85m |
| 10x 10mm | Fiberglass | 0.9mm | 415g /m 2 | -70 -260 ℃ | 3.55m |
| 4x 4mm | Kevlar+Fiberglass | 1.5mm | 934g /m 2 | -70 -260 ℃ | 2.75m |
| 4x 4mm | Kevlar | 1.2mm | 600g /m 2 | -70 -260 ℃ | 4m |
Applications
Pictures
