Unionfull® China Thermal Insulation Products Supplier | Thermal Materials - High Silica Cloth - Thermal Insulating Fiberglass Fabrics
| Place of Origin: | China |
|---|---|
| Brand Name: | Unionfull |
| Certification: | ISO9001:2008,SGS;FDA |
| Model Number: | UNP8580TB-44-190 |
| Minimum Order Quantity: | 50 Meters |
| Price: | $4.6--10 / M2 |
| Packaging Details: | One roll in poly bag, carton. |
| Delivery Time: | 2 weeks after receiving payment |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 40,000 Square Meters Per Day |
| Material: | Fiberglass Open Mesh | Mesh: | 4*4MM |
|---|---|---|---|
| Weight: | 580g/m2, 17oz | Coating: | PTFE |
| Color: | Black | Work Temperature: | -50 To 260℃ |
| High Light: | ptfe coated glass fibre fabric,ptfe coated fiberglass cloth |
||

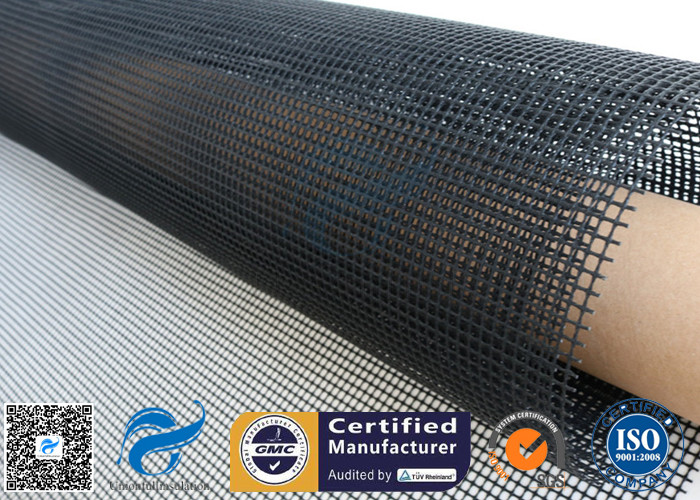

4x4MM PTFE Coated Fiberglass Mesh Fabric 17OZ Black Drying Textile Conveyor Belt
PTFE coated fiber glass conveyor belt is made of basic 4x4mm mesh size open mesh roll impregnated with black polytetrafluoroethylene (PTFE). This coated glass fiber belt is weighed at 580gsm (17oz) and 1mm thick. Fiber glass open mesh is very high strength fabric with great fire resistance. Due to its durability and heat insulation, this open mesh belt is widely used in various fields.
Work temperature of fiber glass mesh conveyor belt is -50 to 260℃. Because of its PTFE coating, rubbers or other compounds will not stick on the belt. Also it is easy to clean by soapy water after using. The coating is food grade so this open mesh belt is also used for food process application.
Features
Specification
Open mesh: 1mmx1mm, 2mmx2.5mm, 4mmx4mm and 10mmx10mm
Edge: PTFE film or PTFE coated fiberglass fabric reinforcement
Joint: Spiral joint or bull nose joint
| Mesh Size | Materials | Thickness | Weight | Temperature | Width(max) |
| 1x 0.5mm | Fiberglass | 0.65mm | 560g /m 2 | -70 -260 ℃ | 3.25m |
| 1x 1mm | Fiberglass | 0.65mm | 520g /m 2 | -70 -260 ℃ | 3.55m |
| 2x 2.5mm | Fiberglass | 0.7mm | 640g /m 2 | -70 -260 ℃ | 3.65m |
| 4x 4mm | Fiberglass | 1.0mm | 580g /m 2 | -70 -260 ℃ | 4.2m |
| 4x 4mm | Fiberglass | 1.3mm | 740g /m 2 | -70 -260 ℃ | 3.85m |
| 10x 10mm | Fiberglass | 0.9mm | 415g /m 2 | -70 -260 ℃ | 3.55m |
| 4x 4mm | Kevlar+Fiberglass | 1.5mm | 934g /m 2 | -70 -260 ℃ | 2.75m |
| 4x 4mm | Kevlar | 1.2mm | 600g /m 2 | -70 -260 ℃ | 4m |
Applications
Pictures
