Unionfull® China Thermal Insulation Products Supplier | Thermal Materials - High Silica Cloth - Thermal Insulating Fiberglass Fabrics
| Place of Origin: | China |
|---|---|
| Brand Name: | Unionfull |
| Certification: | ISO9001:2008, SGS;TUV |
| Model Number: | UNP8580TB-44-190 |
| Minimum Order Quantity: | 50 Meters |
| Price: | $4.59--10/Square Meter |
| Packaging Details: | One roll in poly bag, carton. |
| Delivery Time: | 2 weeks after receiving payment |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union |
| Supply Ability: | 50,000 Square Meters Per Day |
| Material: | Fiberglass Mesh | Mesh Size: | 4x4mm |
|---|---|---|---|
| Weight: | 580g/m2 | Thickness: | 1mm |
| Roll Length: | Customized | Width: | 2m |
| High Light: | ptfe coated glass fibre fabric,ptfe coated fiberglass cloth |
||

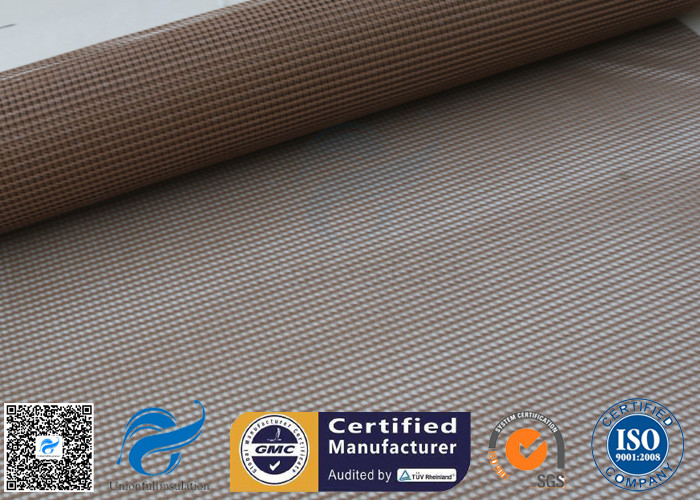

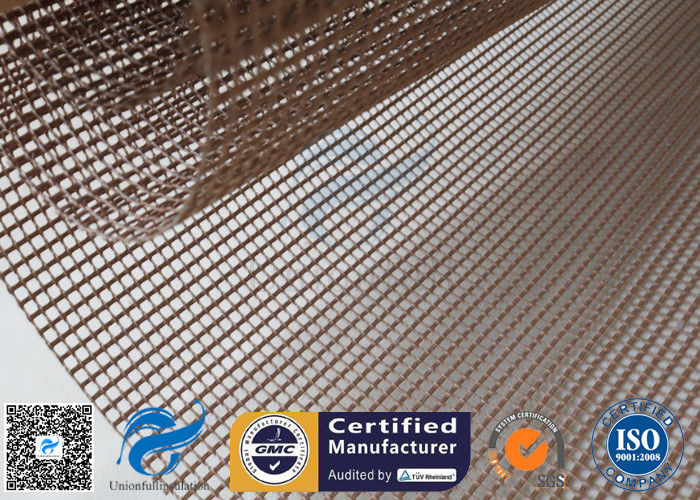

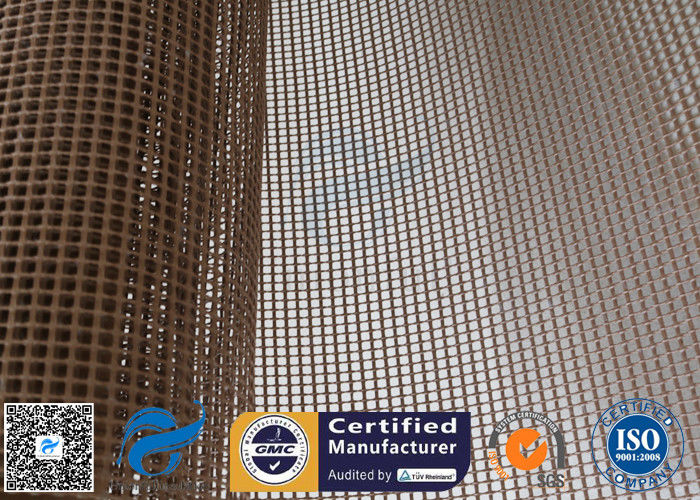

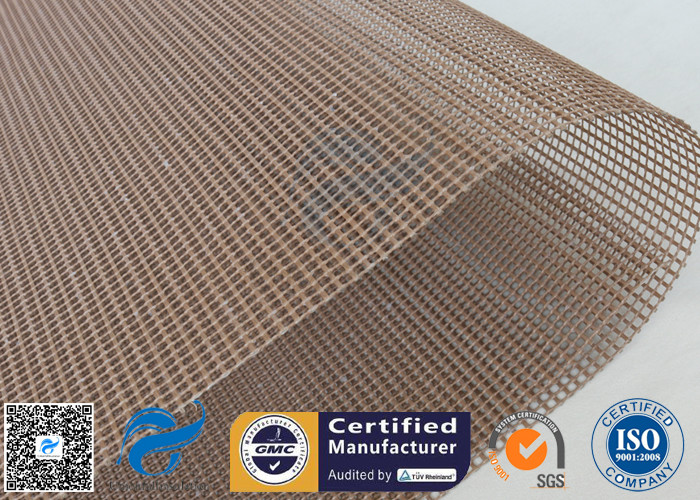

Brown PTFE Coated Fiberglass Mesh Fabric 580G 4x4MM High Strength Conveyor Belt
PTFE fiberglass conveyor belt is made of basic glass fiber open mesh fabric impregnated with polytetrafluoroethylene (PTFE). Mesh size can be 1mmx1mm, 2mmx2.5mm, 4mmx4mm and 10mmx10mm. 4x4mm is widely used specification. Fiberglass open mesh is a very high strength and abrasion resistant material, which is suitable for durable conveyor belt usages. For weave, there are single weft fiberglass mesh conveyor belt and double weft fiberglass mesh conveyor belt. Double weft belts with higher tensile strength. It is used for most industrial conveyor application.
Fiberglass mesh is fire resistant. Its working temperature is short term up to 300°C and 260°C continuously. The basic mesh is able to withstand 550℃. Fiber glass mesh belt can keep stable dimension under continuous heating. What's more, mesh belt is chemical resistant, durable, light weight and non toxic. Industrial fiber glass conveyor belts are used in various fields like industrial electroplating and food industry. Due to the low adhesion of PTFE coating, this belt is non stick and easy to clean.
Properties
Specification
Width: 4000mm max.
Weave: single weft or double weft
Edge reinforcement: PTFE film, PTFE coated fiberglass fabric
Joint: Spiral joint, bull nose joint
| Size | Materials | Thickness | Weight | Temperature | Width(max) |
| 1x 0.5mm | Fiberglass | 0.65mm | 560g /m 2 | -70 -260 ℃ | 3.25m |
| 1x 1mm | Fiberglass | 0.65mm | 520g /m 2 | -70 -260 ℃ | 3.55m |
| 2x 2.5mm | Fiberglass | 0.7mm | 640g /m 2 | -70 -260 ℃ | 3.65m |
| 4x 4mm | Fiberglass | 1.0mm | 580g /m 2 | -70 -260 ℃ | 4.2m |
| 4x 4mm | Fiberglass | 1.3mm | 740g /m 2 | -70 -260 ℃ | 3.85m |
| 10x 10mm | Fiberglass | 0.9mm | 415g /m 2 | -70 -260 ℃ | 3.55m |
| 4x 4mm | Kevlar+Fiberglass | 1.5mm | 934g /m 2 | -70 -260 ℃ | 2.75m |
| 4x 4mm | Kevlar | 1.2mm | 600g /m 2 | -70 -260 ℃ | 4m |
Applications
