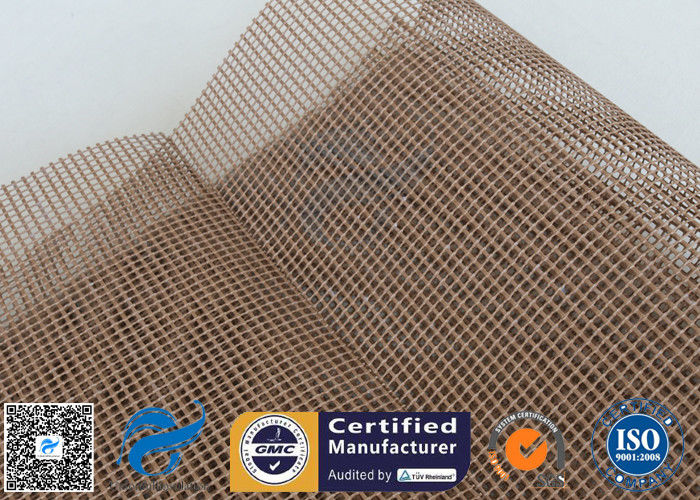

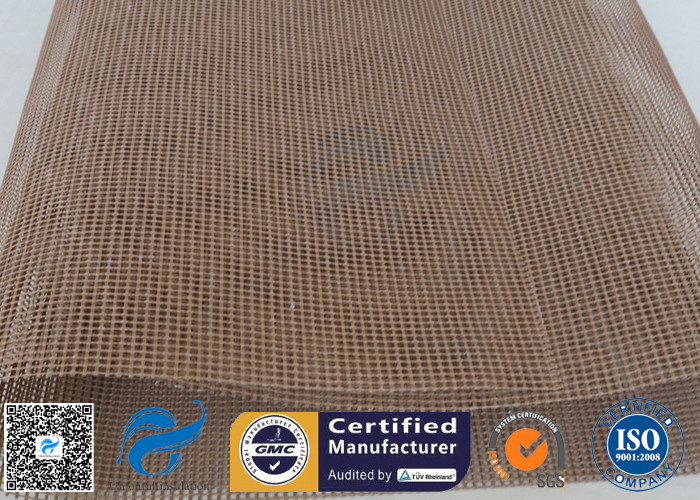

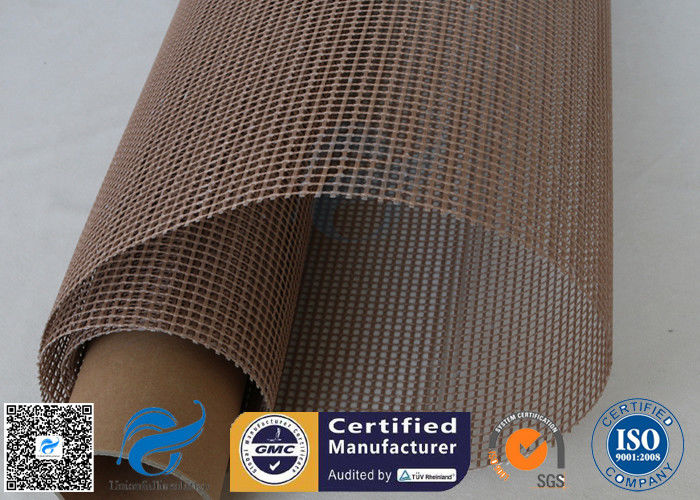

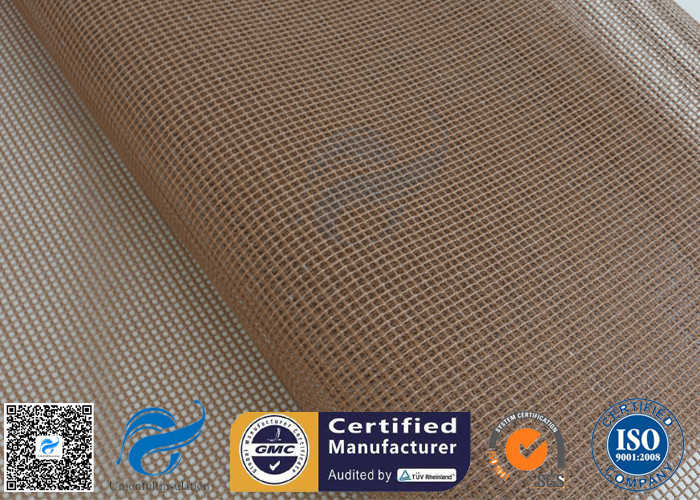

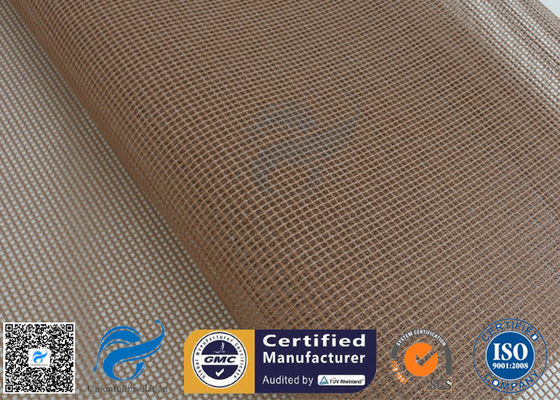

PTFE Coated Fiberglass Conveyor Belt Fabric 4x4MM Doule Weft Brown Open Mesh

PTFE coated fiberglass conveyor belt is made of glass fiber open mesh cloth impregnated with polytetrafluoroethylene (PTFE) emulsion. Mesh size includes 1mm*1mm, 2mm*2.5mm, 4mm*4mm and 10mm*10mm. PTFE coating can be brown, beige or black colors. According to the different warp and weft, there are single weft open mesh conveyor belt and double weft open mesh conveyor belt.



With high temperature resistance (short term up to 300°C, up to 260°C continuously), chemical resistance and high tensile strength, Unionfull industrial conveyor belts are used in various fields from industrial electroplating to the food fields. Thanks to the low adhesion of PTFE coating, adhesions can be reduced to the minimum. Detach of materials and cleaning are simplified. Detergents can be reduced ot sometimes are not necessary.



Properties



• working temperature from - 50°C to 260°C
• corrosion resistance
• air permeability
• excellent dimensional stability and high strength
• chemical resistance to acid and alkali
• HF, IR, UV and microwave resistant
• non stick and easy to clean
• high temperature transmission, reduce the energy in thermal application





Specification



Width: 4000mm max.

Weave: single weft or doule weft

Edge reinforcement (common): PTFE film, PTFE coated fiberglass fabric

Joint (common): Spiral joint, bull nose joint



Coated Open Mesh Belt
Color	Fiberglass (g/m2)	Total Weight (g/m)	Tensile Strength (N/5cm)±5%
			Warp	Weft
Beige	367	440	1800	1650
Black	367	440	2400	1600
Black	343	480	1350	1700
Beige	343	475	1350	1700
Yellow Kevlar Double Weft	417	570	3200	2300
Brown	414	570	1800	3000
Black	414	570	1800	3000
Yellow Full Kevlar	247	410	3300	2050
Beige	306	430	1400	1000
Beige	307	440	1500	1100
Beige	416	520	2000	1450
Bull-Nose Joint	417	615	3000	2000
Beige	490	735	2000	4000
Beige	465	690	1800	3500
Off White	420	710	2500	3000



































































Applications



• cleanroom usages in the electronic fields
• production of solar wafers
• laminating machines & presses
• dryer belt in factories
• separation layer in vulcanising presses
• shrinking system
• blister packaging machines
