Acrylic Coated Fiberglass Fire Blanket Fabric Red 490GSM Welding Sparks Shield

China Acrylic Coated Fiberglass Fire Blanket Fabric Red 490GSM Welding Sparks Shield supplier
Acrylic Coated Fiberglass Fire Blanket Fabric Red 490GSM Welding Sparks Shield supplier Acrylic Coated Fiberglass Fire Blanket Fabric Red 490GSM Welding Sparks Shield supplier Acrylic Coated Fiberglass Fire Blanket Fabric Red 490GSM Welding Sparks Shield supplier Acrylic Coated Fiberglass Fire Blanket Fabric Red 490GSM Welding Sparks Shield supplier

Large Image :  Acrylic Coated Fiberglass Fire Blanket Fabric Red 490GSM Welding Sparks Shield

Product Details:

Place of Origin: China
Brand Name: Unionfull
Certification: ISO9001:2008; SGS;TUV
Model Number: JT8430AR-D30-100

Payment & Shipping Terms:

Minimum Order Quantity: 100 Meters
Price: $2.15--$3/square meter
Packaging Details: One roll in poly bag, carton
Delivery Time: 3 weeks after payment
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 50,000 m2 per day
Contact Now
Detailed Product Description
Materials: 100% Fiberglass Fabric Yarn Type: E
Weave: Satin Area Weight: 490g/m2
Width: 1000MM Temperature: Fiberglass 550℃

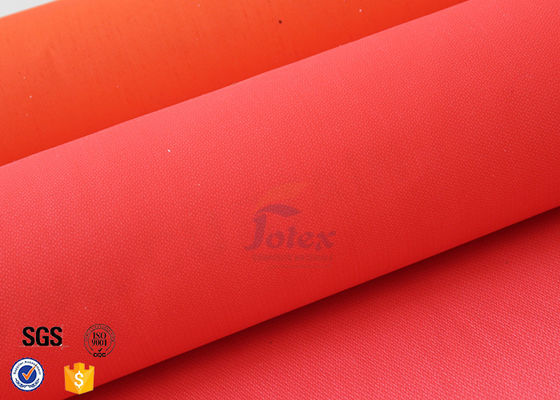

Acrylic Coated Fiberglass Fire Blanket Materials Red 0.45mm Welding Protection



Fiber glas fabric with different coating can meet special application purpose and improve some idiosyncrasy. Because of their heat insulation and special features, they will be used in a wide range of work environment and industrial fields. One main material of industrial welding blanket is Acrylic coated fibreglass fabric, which is a fibre glass base fabric coated with specially formulated red color Acrylic on two sides. This red coating provides good abrasion puncture and easier fabrication for the basic 430gsm glass cloth.



100% fibreglass cloth asbestos free of this coated fabric is woven in cross twill weave and it is 430gsm. Basic cloth is coated with 30gsm red acrylic on both sides. So its total weight is 490g/m2. Most common width is 1000mm. Fire resistant glass cloth is an material for thermal insulation, abrasion resistant, anti chemical agents and electrical insulation. Fiberglass fabric is able to withstand heat below 550℃ continuously. Acrylic coating can withstand a temperature at 260℃ continuously.



This welding fabrics are used as a lot of industries application like power generation cover, chemical factory insulation cloth and oil & gas equipments protection.





Specification



Item Acrylic Coated Fiberglass Fabric
Area Weight 490 g/m2
Thickness 0.45 mm
Coating Red Acrylic
Heat Temperature

Coating: -50℃ to 260℃

Fiberglass: 550℃

Width 100CM



Features



  1. Flame resistant, thermal insulation
  2. Durable and abrasion resistant
  3. Chemical agents resistant, anti aicd and alkali
  4. Electrical insulation
  5. Anti aging, weather, longer using life



Application



  • Fire blanket
  • Welding protection, splash protection.
  • Fabric expansion joints
  • Removable heat thermal blanket pads
  • Motor vehicle industry, energy insulation​
  • Oil & gas pipeline protection
  • Chemical industries, power factory and high temperature sealing



Pictures
