Unionfull® China Thermal Insulation Products Supplier | Thermal Materials - High Silica Cloth - Thermal Insulating Fiberglass Fabrics
| Place of Origin: | China |
|---|---|
| Brand Name: | Unionfull |
| Certification: | ISO9001:2008, SGS;TUV |
| Model Number: | JT8600SR-D75-94 |
| Minimum Order Quantity: | 500 Meters |
| Price: | $8.1---$9/ sqaure meter |
| Packaging Details: | 50m one roll |
| Delivery Time: | 20 days after receiving payment |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union |
| Supply Ability: | 45,000 Square Meters Per Day |
| Treatment: | Calcination, Acid | Weight Per M2: | 750g |
|---|---|---|---|
| Coating: | Silicone, 75/75 Gsm | Weave: | Satin Weave |
| SiO2: | Above 96% | Width: | 94cm |
| High Light: | High Silica Cloth,High Silica Glass Fiber |
||

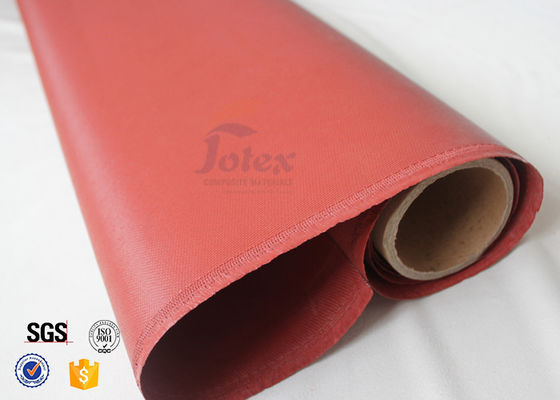

Red Silicone Coated 800℃ High Silica Fabric Break Twill Weave 750GSM
Silicone coated fiberglass cloth, high silica fabric is made of basic 600g/m2 or 1200g/m2 high silica cloth which is coated with silicone on one side or two sides. This basic high silica cloth is woven in satin and is weighed at 600g/m2 or 1200g/m2.
For this 0.7mm silicone coated fabric is 600g/m2 basic high silica fabric woven in satin/cross twill. This cloth is woven fiberglass fabric which is treated by acid treatment and calcination, SiO2 content is more than 96% accordingly. Post treatment makes its melting point higher. Coating is red silicone 75g/m2 on each side. So total weight is 750g/m2.
High silica fabric is able to be used from -50 to 800℃ continuously. Silicone coating can withstand 260℃. Silicone coated high silica fabric is chemical resistant, abrasion resistant, durable, anti corrosion and anti aging. It is widely used in industrial fields like welding blankets, thermal insulation/electrical insulation blanket.
Data Sheet:
| Item | Silicone Coated High Silica Cloth |
| Material | High Silica Cloth |
| SiO2 | ≥96% |
| Weave | 4H Satin |
| Weight | 750g |
| Thickness | 0.7mm |
| Width | 94cm |
| Working Temperature |
Silicone Coating ≤260℃ |
Feature:
Application:
Pipe insulation warp
Industrial insulation materials
Aerospace, auto, motorcycle heat insulation cloth
