|Material:||Fiberglass Cloth||Surface:||Grey Silicone|
|Total Weight:||960g/m2, 28oz/yd2||Thickness:||0.8mm|
|Weave Type:||8HS||Temperature:||-50 To 260℃|
|Yarn:||ECG75 1/3, ECG75 1/3||Coating:||150g/side|
thermal insulation covers,
thermal insulation jackets

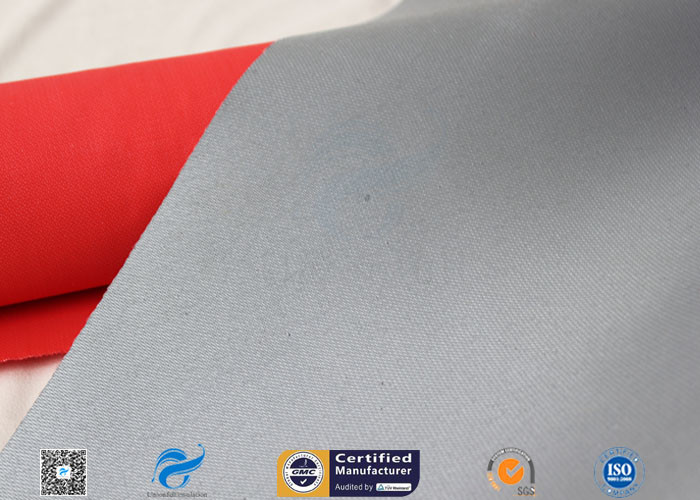

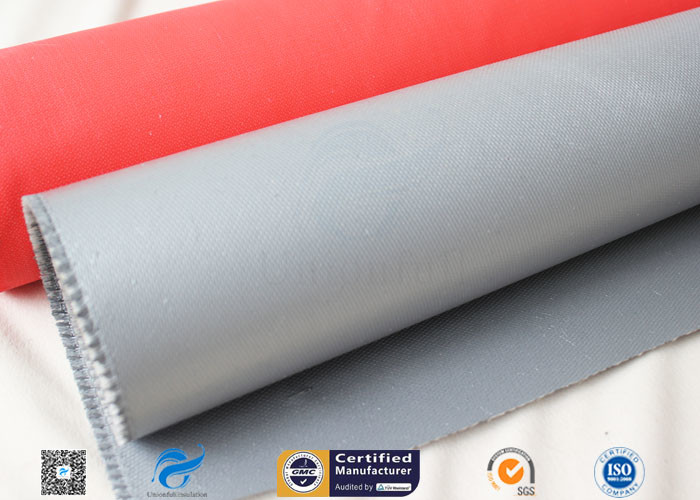

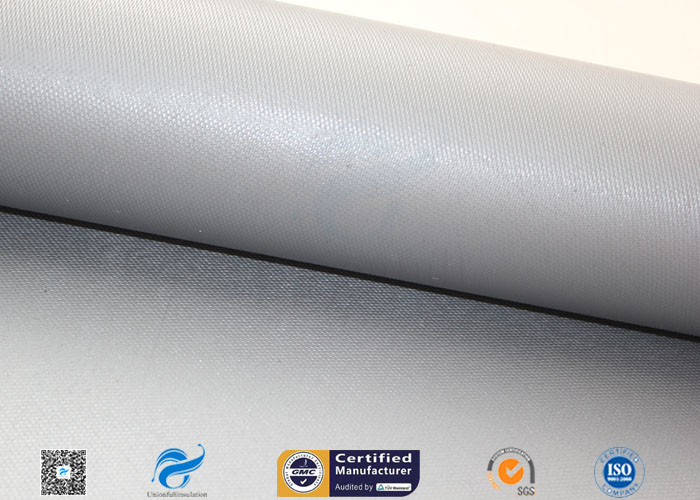

Electrical Insulation Silicone Fiberglass Fabric / Glass Fibre Cloth Fire Resistant
The basic cloth 660g/m2 e-glass fiberglass cloth is woven in satin weaving type. It is fire resistant and durable. It is able to resist 550℃ heat. When coated with 150g/m2 silicone per side, total weight is 960g/m2. Silicone coating can be use from -50 to 260℃. It makes fiberglass a material with better electrical insulation, heat insulation and abrasion resistance.
Based on properties of silicone coated fiberglass fabric, this material is widely used for industrial thermal insulation, fire blanket, welding blanket, removable heat insulation jacket, fabric expansion joints and engine insulation cover.
|Item||Silicone Coated Fiberglass Fabric|
|Basic Cloth||660gsm Fiberglass|
Silicone Coating below 260℃
Fiberglass below 550℃
