1000GSM Silicone Coated Fiberglass Fabric For Electrical Insulation Fire Blanket

China 1000GSM Silicone Coated Fiberglass Fabric For Electrical Insulation Fire Blanket supplier
1000GSM Silicone Coated Fiberglass Fabric For Electrical Insulation Fire Blanket supplier 1000GSM Silicone Coated Fiberglass Fabric For Electrical Insulation Fire Blanket supplier 1000GSM Silicone Coated Fiberglass Fabric For Electrical Insulation Fire Blanket supplier 1000GSM Silicone Coated Fiberglass Fabric For Electrical Insulation Fire Blanket supplier

Large Image :  1000GSM Silicone Coated Fiberglass Fabric For Electrical Insulation Fire Blanket

Product Details:

Place of Origin: China
Brand Name: Unionfull
Certification: ISO9001:2008, SGS;TUV
Model Number: UPSE-8784S150

Payment & Shipping Terms:

Minimum Order Quantity: 500 Meters
Price: $2.5-3.5/ Square Meter
Packaging Details: 50 meters per roll with poly bag
Delivery Time: 15 Working Days After Receiving Payment
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 50000 square meters per day
Contact Now
Detailed Product Description
Basic Cloth: 850 Fiberglass Fabric Coating: Red Silicone, 150g/m2 One Side
Final Thickness: 1mm Weight: 850+150GSM
Width: 100cm Yarn: E-glass

1000GSM Silicone Coated Fiberglass Fabric For Electrical Insulation Fire Blanket


Silicone coated fiberglass cloth is made of fiberglass fabric coated with 150g/m2 red silicone on one side. Fiberglass cloth is thermal insulation materials widely used in industrial fields. It has similar tensile strengh with metal but it is very light weight and economical. It can withstand a high temperature below 550℃. And the silicone coating is able to resist 260 degree Celsius continuously.

Silicone coated fiberglass cloth is a high strength fire resistant fabric. It has properties such as chemical corrosion resistance, dimension stability, durability and electrical insulation. Based on its electrical/ thermal insulation, silicone coated fiberglass fabric is widely used to produce fire blanket, covering for generator and electrical equipments. Besides, other applications of this fabric are fabric expansion joints, thermal insulation jacket and heat insulation clothing, gloves.


Yarn type of this fiberglass fabric is e-glass G37 1/4 2.75S. Mass per unit area of this silicone coated fiberglass fabric is totally 1000g/m2.



Specification Of UPSE-8732S150:

Item Silicone Coated Fiberglass Fabric
Material E-glass Fiber Glass
Coating Red Silicone, One side
Weave 8H Satin Weave
Ends(per cm) 8/6
Mass Per Unit Area 1000g/m2(850+150)
Thickness 1mm
Width 100cm
Working Temperature

Silicone Coating below 260℃

Cloth below 800℃


Features:



  • Heat resistant
  • Corrosion resistance
  • Abrasion resistance, durable
  • High strength, tear resistance
  • Electrical insulation
  • Temperature of coating from -50℃ to 260℃


Application:



  1. Thermal insulation jacket
  2. Fire doors, fire curtains
  3. Fabric expansion joint
  4. Electrical insulation cover
  5. Fire blanket

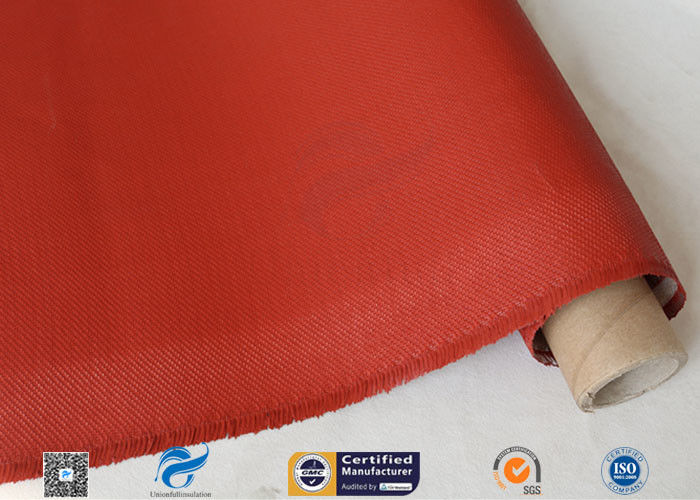

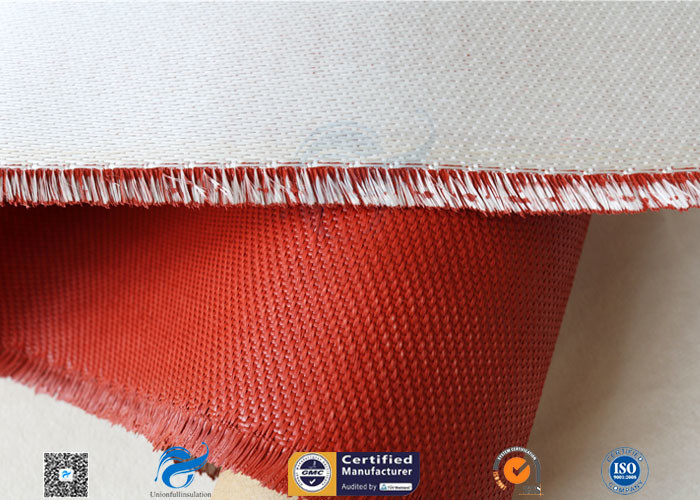

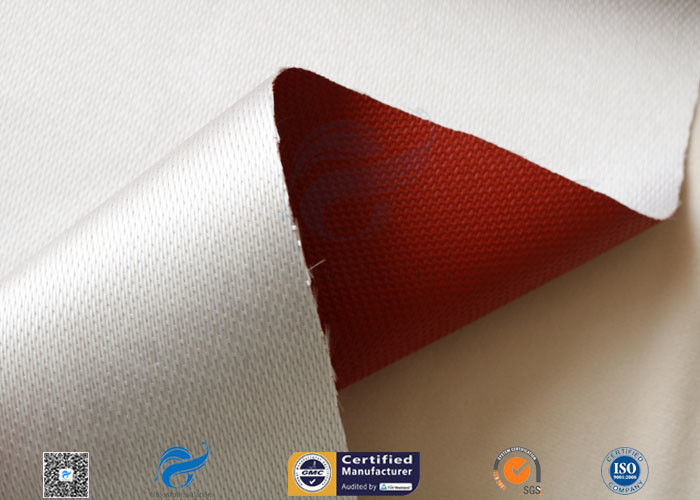

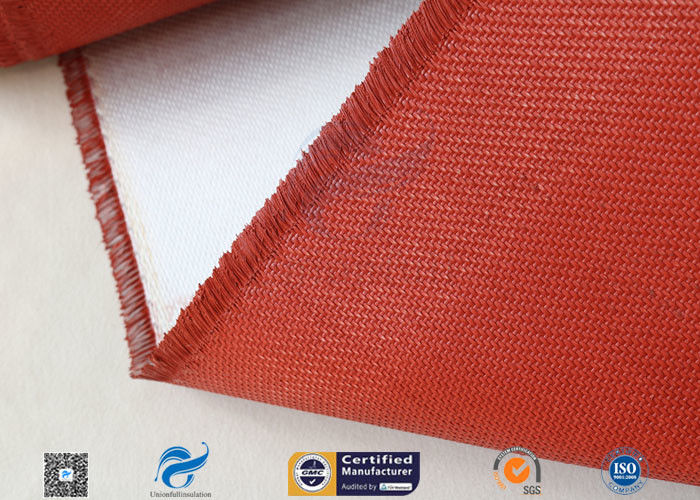

Picture:



1000GSM Silicone Coated Fiberglass Fabric For Electrical Insulation Fire Blanket1000GSM Silicone Coated Fiberglass Fabric For Electrical Insulation Fire Blanket
