200g Twill Weave 3K Carbon Fiber Cloth Silver Coated Fabric For Decoration

China 200g Twill Weave 3K Carbon Fiber Cloth Silver Coated Fabric For Decoration supplier
200g Twill Weave 3K Carbon Fiber Cloth Silver Coated Fabric For Decoration supplier 200g Twill Weave 3K Carbon Fiber Cloth Silver Coated Fabric For Decoration supplier 200g Twill Weave 3K Carbon Fiber Cloth Silver Coated Fabric For Decoration supplier 200g Twill Weave 3K Carbon Fiber Cloth Silver Coated Fabric For Decoration supplier

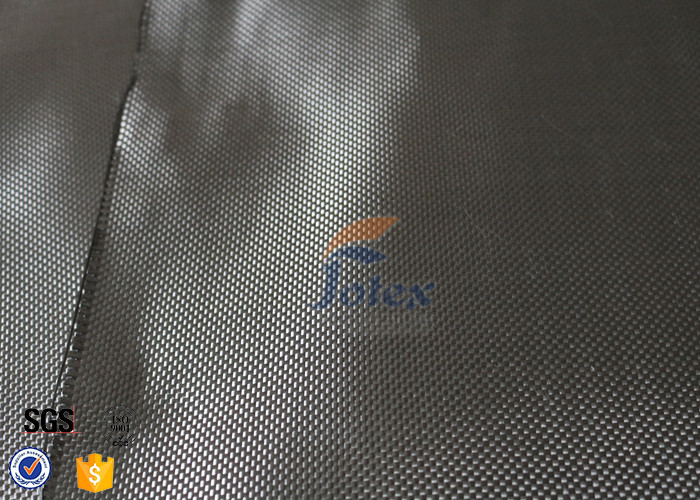

Large Image :  200g Twill Weave 3K Carbon Fiber Cloth Silver Coated Fabric For Decoration

Product Details:

Place of Origin: China
Brand Name: Unionfull
Certification: ISO9001:2008, SGS;TUV
Model Number: JT8200T-3K-100

Payment & Shipping Terms:

Minimum Order Quantity: 500 Meters
Price: $12.5-13.17/ Square Meter
Packaging Details: 50 meters per roll with poly bag
Delivery Time: 2 weeks after payment
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 50000 square meters per day
Contact Now
Detailed Product Description
Materials: Carbon Fibers Mass Per Unit Area: 200gsm
Thickness: 0.3mm Weave Type: Twill
Width: 1000mm Count, Cm: 5/5

200g Twill Weave 3K Carbon Fiber Cloth Silver Coated Fabric For Decoration


Carbon fiber cloth is woven from 3K carbon fibers in weave type of unidirectional, plain and twill. Carbon fiber fabric is woven cloth with properties of heat insulation, high tensile strength, electrical insulation and fatigue resistance. When accurately engineered, this fabric can be the same tensile strength and hardness of metals but it is a significant weight savings. Carbon fiber cloth can be wet with most resins.



Because of its physical and chemical properties, carbon fiber cloth is widely used composite fabric in for surface decoration and reinforcement. Carbon fiber fabric has some features such as high strength, high modulus, heat insulation, durability, chemical corrosion resistance and so on. Compared with those of steel and aluminum materials, products which is made of carbon fiber materials have same great physical and chemical features but light weight and easy processed, making it widely used in different industrial fields.



200g 3K carbon fiber fabric is made of 3K carbon fibers. The woven fabric is weighed at 200g/m2. This fabric is in twill weave type. Thread count is 5/5 and thickness is 0.3mm. Width can be customized if quantity is suitable, but available wisth 100cm is very common used and popular.



Specification Of JT8200T-3K-100:

Item 3K Carbon Fiber Fabric
Weave Twill
Density 5/5
Mass Per Unit 200g/m2
Thickness 0.3mm
Width 1000mm




Features:


1. High tensile strength, Durable


2. Light weight, flexible


3. Chemical resistance, Oil resistance


4. High temperature thermal insulation


5. No hot shrink;  Dimension stability


6. High thermal conductivity


Application:



Structure Reinforcement

  • Ribs, stringers, spars
  • Helicopter blades
  • Engine nacelles
  • Secondary structures
  • Barrel sections of aircraft



Surface Decoration

  • Automative parts
  • Engine Parts
  • Aerospace; Spaceflight; Satellite
  • Sports Equipment
