Hose Silver Heat Resistant Fabric / Aluminum Foil Fiberglass Composite Fabric

Hose Silver Heat Resistant Fabric / Aluminum Foil Fiberglass Composite Fabric
Hose Silver Heat Resistant Fabric / Aluminum Foil Fiberglass Composite Fabric Hose Silver Heat Resistant Fabric / Aluminum Foil Fiberglass Composite Fabric Hose Silver Heat Resistant Fabric / Aluminum Foil Fiberglass Composite Fabric Hose Silver Heat Resistant Fabric / Aluminum Foil Fiberglass Composite Fabric Hose Silver Heat Resistant Fabric / Aluminum Foil Fiberglass Composite Fabric

Large Image :  Hose Silver Heat Resistant Fabric / Aluminum Foil Fiberglass Composite Fabric

Product Details:

Place of Origin: China
Brand Name: Unionfull
Certification: ISO9001:2008; SGS;TUV
Model Number: UPCAL-8784

Payment & Shipping Terms:

Minimum Order Quantity: Negotiation
Price: Negotiable
Packaging Details: One roll in woven bag
Delivery Time: 2 weeks after receiving payment
Payment Terms: L/C, T/T, Western Union
Supply Ability: 5000m2 Per Day
Detailed Product Description
Basic Fabric: Fiberglass Fabric Surface Treatment: Aluminium Foil
Weight: 880g/m2 Construction: AL + Fiberglass + PE
Thickness: 0.85mm Temperature: ≤300℃
High Light:

silver plated fabric

,

carbon fiber fabric

0.85mm Thick 95% Heat Reflection Aluminium Foil Laminated Fiberglass Fabric



Description:

Aluminum foil coating is best for static applications and temperatures up to 650°F / 343°C, this fabric will withstand short duration exposure up to 1115°F / 600°C and up to 3000°F / 1650°C for very short durations. The aluminum coating melts at 1220°F / 660°C.



Aluminum foil fiberglass composite fabric reflects 95% or more of the radiant heat that contacts its surface. Constructed from a high-temperature base fiberglass which is then coated with aluminum foil or aluminum film.



Fiberglass fabric coated with aluminium foil has excellent properties such as smooth surface on the aluminum foil, strong light reflection, good stretching resistance in length and breadth, non-breath ability, non-water permeability, good hermetic and weather resistance.



Aluminum foil fiberglass composite fabric reflects radiant heat and is the perfect protection for covering equipment that is in close proximity to intense radiant sources such as super-hot metal slabs, liquid and molten metals or glass, open flame/plasma or engine exhaust manifolds. Protects industrial wire, cable, hose, hydraulics and equipment cabinets and enclosures.



Temperature resistant:

Fiberglass fabric: ≤550℃

Adhesive: ≤300℃

Aluminium foil: ≤300℃



Data sheet Of Basic Fabric:

Type



C-glass/E-glass

Item No.



UPSE-8784

Thickness



0.8mm 0.032inch

Weight



850g/m2 25oz/yd2

Yarn weft/warp



ECG37 1/4,ECG37 1/5 ECG37 1/4,ECG37 1/5

Construction weft/warp



8/6 ends/cm 8/6 ends/cm

Temperature resistant



≤500℃ ≤932℉

Tensile strength



2600/2400(N/50mm)



Data sheet Of UPCAL-8784:

Item



Aluminum Foil Fiberglass Fabric

Thickness



0.85mm

Width



1 m, 1.2 m, 1.5 m

Weight



880g/m2

Weave



Satin

Glass Yarn Type



E-Glass/ C-Glass
Advantages

95% radiant thermal reflective,

Non-breath ability,Non-water permeability



Advantage

1.Smooth surface on the aluminum foil
2.good stretching resistance in length and breadth
3.Low thermal conductivity and superior heat insulation;

4.Keeps warmth in during winter and cools in summer

5.Good fire resistance can be rated IMO part 5

6.95% heat reflection

7.Moisture barrier,water-proof, fire-retarding and anti-corrosion

8.Light weight and easy to handle



Main Application:

1.Used as the protective layer of super glass wool with excellent functions of fire-resistance, anti-corrosion, heat isolation and heat protection and sound absorption, sound-proof materials in construction.
2.Heat insulation, sound absorption and noise reduction for car, train, refrigerator car and laboratory; moisture proof cushion for traveling

3.Packing for special products and cold storage

4.Making protective wear- gloves, covers

5.Wrapping materials of oil transportation pipelines and the steam pipelines in the petrochemical industry, ducting with the same effects as mentioned above



Pictures:

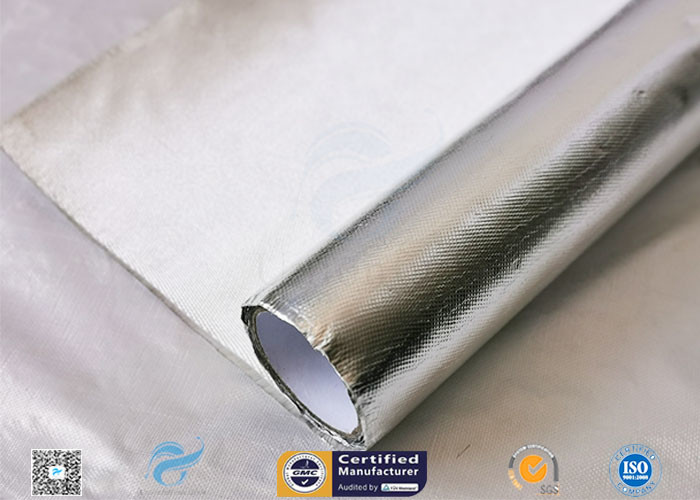

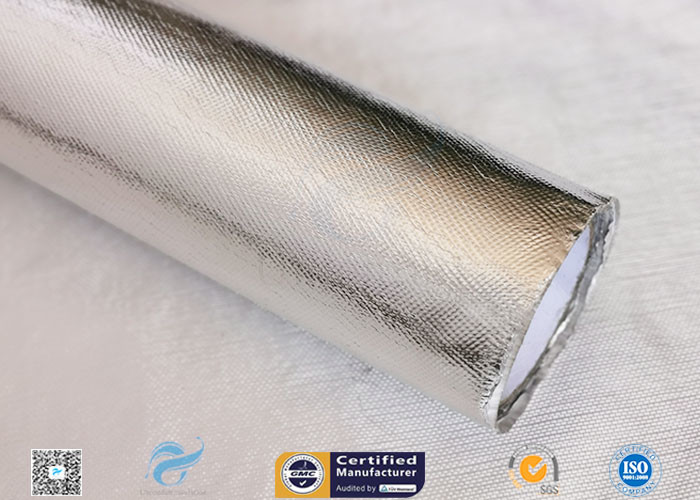

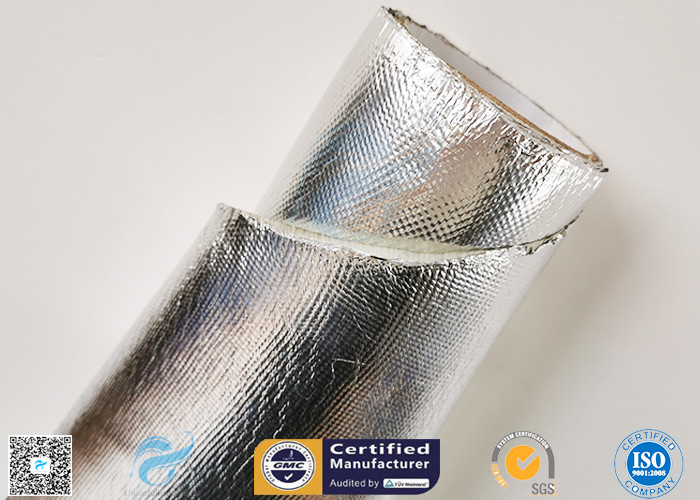

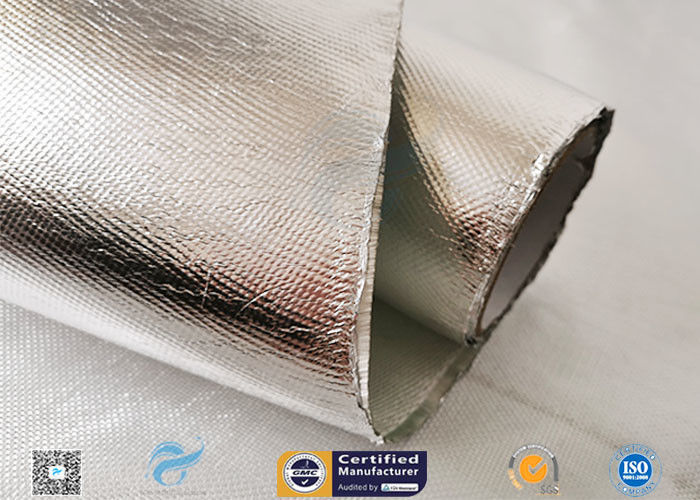

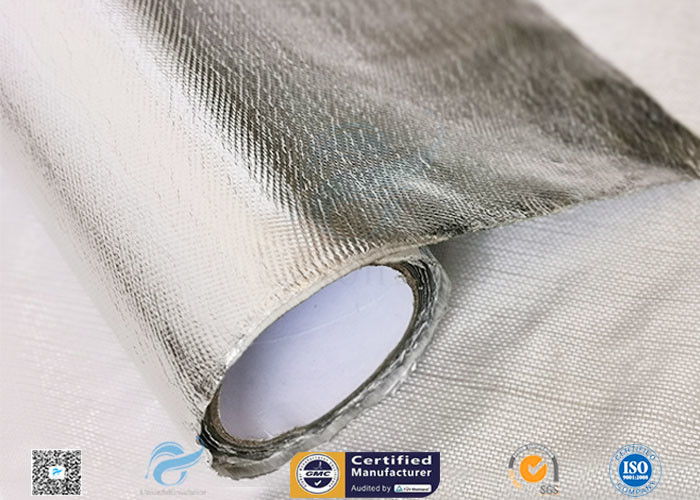

Hose Silver Heat Resistant Fabric / Aluminum Foil Fiberglass Composite Fabric 0Hose Silver Heat Resistant Fabric / Aluminum Foil Fiberglass Composite Fabric 1
