0.43mm Heat Reflective Silver Plated Fabric Aluminum Foil Fiberglass Cloth

China 0.43mm Heat Reflective Silver Plated Fabric Aluminum Foil Fiberglass Cloth supplier
0.43mm Heat Reflective Silver Plated Fabric Aluminum Foil Fiberglass Cloth supplier 0.43mm Heat Reflective Silver Plated Fabric Aluminum Foil Fiberglass Cloth supplier 0.43mm Heat Reflective Silver Plated Fabric Aluminum Foil Fiberglass Cloth supplier 0.43mm Heat Reflective Silver Plated Fabric Aluminum Foil Fiberglass Cloth supplier

Large Image :  0.43mm Heat Reflective Silver Plated Fabric Aluminum Foil Fiberglass Cloth

Product Details:

Place of Origin: Zhejiang, China
Brand Name: Unionfull
Certification: ISO9001:2008, SGS;TUV
Model Number: UPEAL-8732

Payment & Shipping Terms:

Minimum Order Quantity: 500 meters
Price: $2.3--$3.85/m2
Packaging Details: One roll with poly bag, 20 rolls one pallet
Delivery Time: 20 Working days
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 100,000 Square Meters Per Day
Contact Now
Detailed Product Description
Cloth: 430g Fiberglass Fabric Weight: 480g Totally
Thicness: 0.43mm Weave: Satin
Count: 17.4/14 Width: 127cm

0.43mm Heat Reflective Silver Plated Fabric Aluminum Foil Fiberglass Cloth​



Aluminized fiberglass fabric is basic cloth 430g/m2 0.4mm woven fiber glass cloth which is laminated with aluminum foil by a special adhersive. Total weight of the foiled fabric is 480g/m2. Total thickness will be 0.43mm. Thickness of aluminum foil are 7μm, 18μm, 25μm, max can be 50μm. Fiberglass fabric is a very durable material. The tensile strength of the foild fabric is 6000/4500N/5CM.



The base fiberglass fabric can resist a temperature from -100° F to 1022° F. And aluminiul foil can be used below 660℃. And the special high temperature adhersive will melt when is above 300℃. But it can withstand short exposure to higher temperature.



Owe to its great heat insulation and heat reflection, this aluminum foil silver coated fabric is widely used as thermal insulation blanket for steam heating pipes/pumps/valves and heat insulation materials in construction. It has excellent features of fire protection, chemical resistance, thermal insulation and non stick.



Specification:



Product Aluminium Foil Fiberglass Fabric
Material Fiber Glass
Weave Satin
Total Weight 480g/m2
Thickness 0.43mm
Thickness Of Aluminium Foil 7micron/18micron/25micron
Width 100cm, 127cm, 155cm
Working Temperature

Fibreglass cloth: 550℃

Adhersive For Foil: 300℃





Features:



  1. Thermail insulation, heat reflective
  2. Durable, tear resistance
  3. Anti chemical agents
  4. Abrasion, corrosion resistance
  5. Waterproof
  6. Electrical Insulation



Application



  • Working wear, gloves
  • Removable thermal insulation jackets
  • Fire blankets, molten metal splatter protection
  • Automotive engine heat insulation

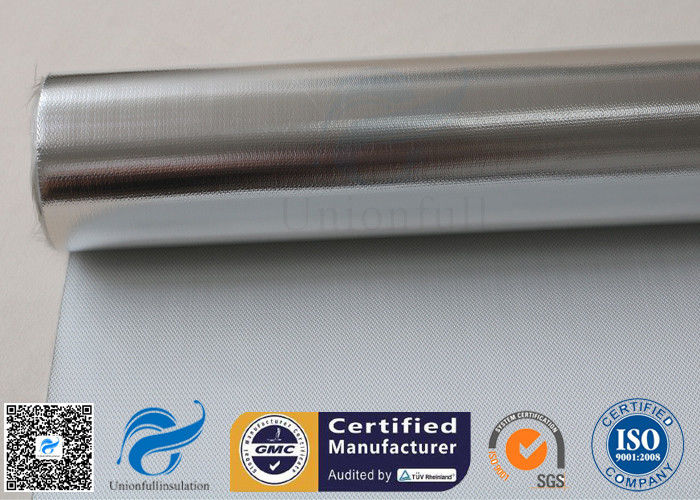

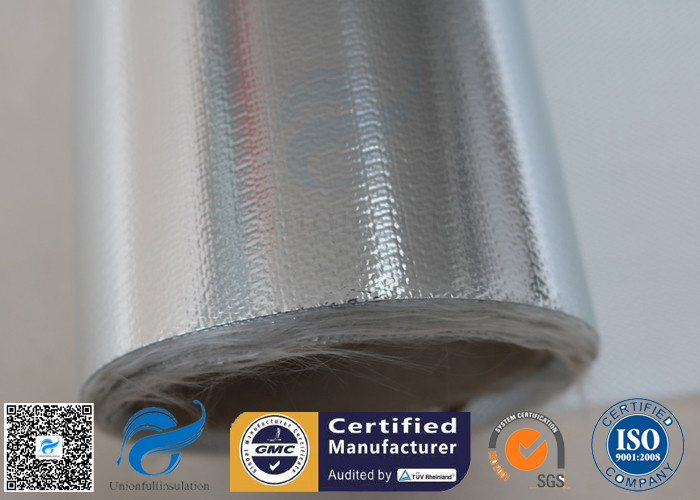

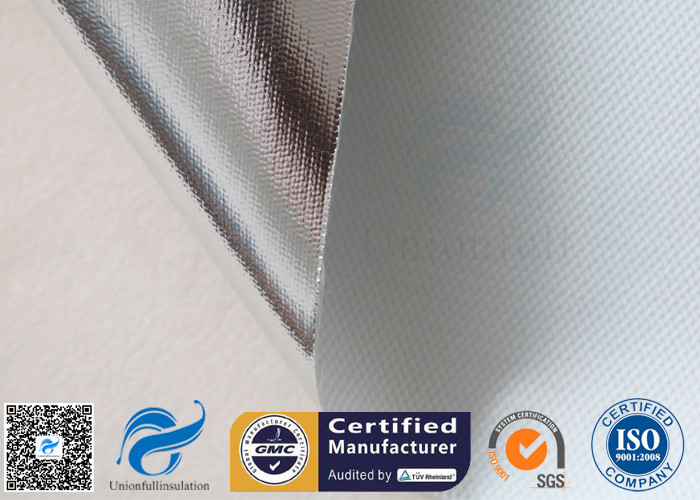

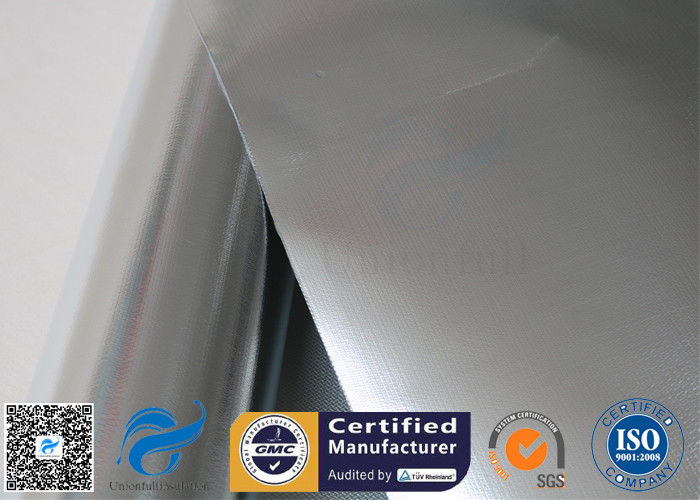

Picture:



0.43mm Heat Reflective Silver Plated Fabric Aluminum Foil Fiberglass Cloth0.43mm Heat Reflective Silver Plated Fabric Aluminum Foil Fiberglass Cloth
