Grey Silicone Coated Fiberglass Cloth Engine Thermal Insulation Coated Glass Fabric

Grey Silicone Coated Fiberglass Cloth Engine Thermal Insulation Coated Glass Fabric
Grey Silicone Coated Fiberglass Cloth Engine Thermal Insulation Coated Glass Fabric Grey Silicone Coated Fiberglass Cloth Engine Thermal Insulation Coated Glass Fabric Grey Silicone Coated Fiberglass Cloth Engine Thermal Insulation Coated Glass Fabric Grey Silicone Coated Fiberglass Cloth Engine Thermal Insulation Coated Glass Fabric Grey Silicone Coated Fiberglass Cloth Engine Thermal Insulation Coated Glass Fabric Grey Silicone Coated Fiberglass Cloth Engine Thermal Insulation Coated Glass Fabric Grey Silicone Coated Fiberglass Cloth Engine Thermal Insulation Coated Glass Fabric Grey Silicone Coated Fiberglass Cloth Engine Thermal Insulation Coated Glass Fabric Grey Silicone Coated Fiberglass Cloth Engine Thermal Insulation Coated Glass Fabric Grey Silicone Coated Fiberglass Cloth Engine Thermal Insulation Coated Glass Fabric Grey Silicone Coated Fiberglass Cloth Engine Thermal Insulation Coated Glass Fabric Grey Silicone Coated Fiberglass Cloth Engine Thermal Insulation Coated Glass Fabric
Basic Information
Place of Origin: China
Brand Name: Unionfull
Certification: ISO9001:2008, SGS;TUV
Model Number: UPSE-8628D50
Minimum Order Quantity: 500 Meters
Price: $2.6-3.50/ Square Meter
Packaging Details: 50 meters per roll with poly bag
Delivery Time: 20 Working Days After Receiving Payment
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 50000 square meters per day
Get Best Price Contact Now
Materials: 200g Fiberglass Fabric Coating: Silicone, 50/50
Weave: Satin(break Twill) Weight: 300g/m2
Common Width: 100cm Feature: Abrasion Resistance, Electrical Insulation
Highlight:

silicone coated glass cloth

,

silicone coated glass fabric

 0.3mm Grey Silicone Coated Fiberglass Fabric For Engine Thermal Insulation




This 0.3mm silicone coated fiberglass fabric is made of 200gsm 0.2mm woven fiber glass cloth coated with grey silicone on two sides. Fiberglass fabric is a tear resistant but light weight fabric compared with other materials for industrical heat insulation. Coating of this fiberglass fabric is 50g/m2 per side. The basic fiberglass cloth is able to withstand 550℃. And the working temperature of silicone coating is below 260℃.


Silicone fiber glass cloth is a heat resistant, durable and electrical insulation material. Based on its special features of fiberglass cloth and silicone coating, silicone coated fiberglass cloth is always used for welding/fire blanket, fabric expansion joints, removable thermal insualtion jackets for generator and valve, chemical corrosion resistant cover for pipeline.


Specification Of UPSE-8628D50

Item Silicone Coated Fiberglass Fabric
Material Fiber Glass
Weave Plain Weave
Warp Density 17.3 Ends/CM
Weft Density 13 Ends/CM
Mass Per Unit 300gsm
Thickness 0.3mm
Width 100cm
Working Temperature

Silicone Coating below 260℃


Properties:


  • Fireproof
  • Durable, abrasion resistant
  • Anti acid, alkali, corrosion resistance
  • Electric insulation
  • Below 260 degree C working temperature


Application:


  1. Removable thermal insulation jacket
  2. Fire safety doors, fire curtains
  3. Fabric expansion connector
  4. Electrical insulation exhaust blanket
  5. Enginer thermal insulation

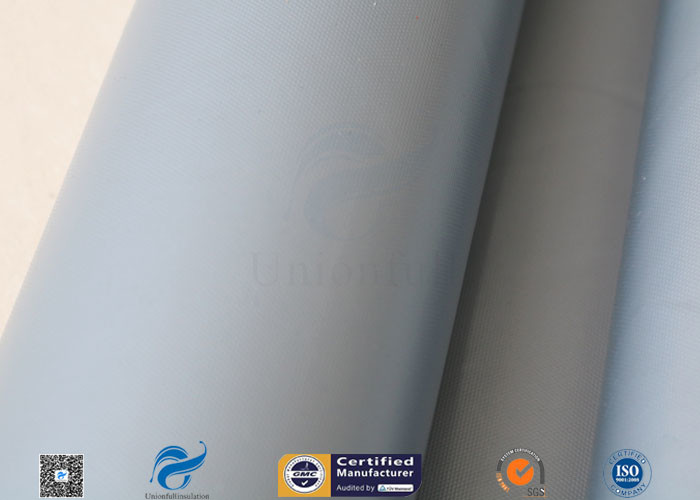

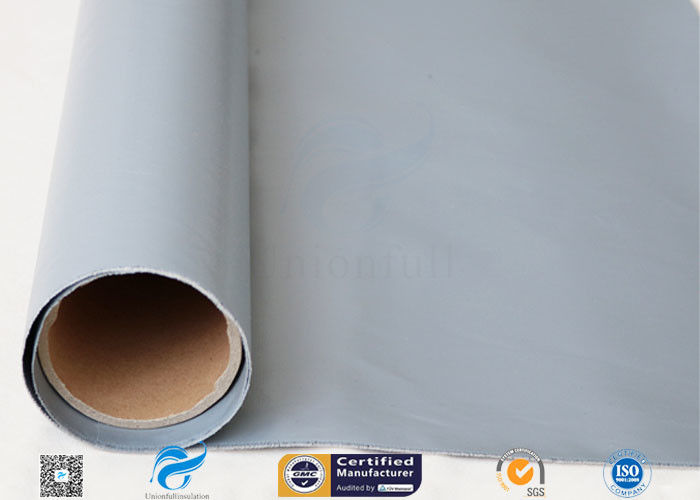

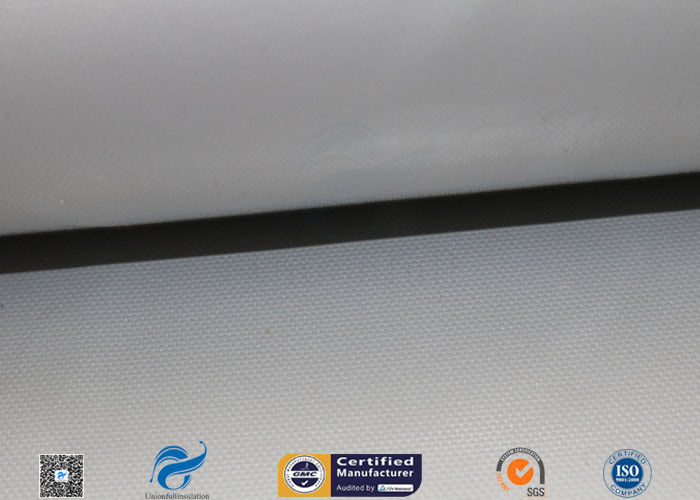

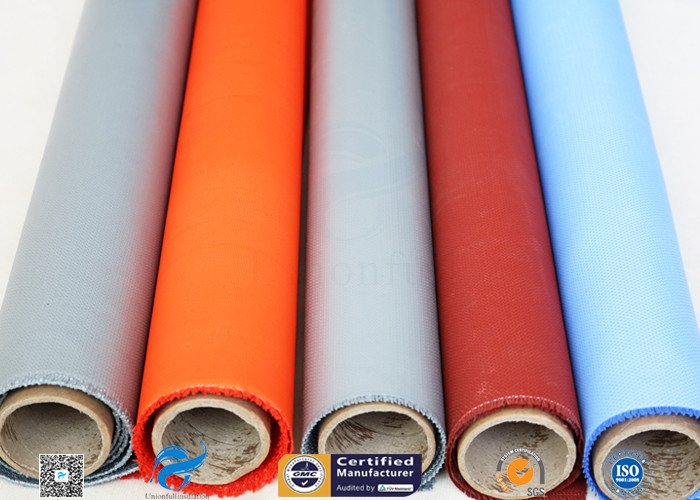

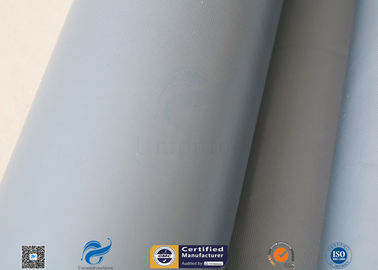

Picture:



Grey Silicone Coated Fiberglass Cloth Engine Thermal Insulation Coated Glass Fabric 0Grey Silicone Coated Fiberglass Cloth Engine Thermal Insulation Coated Glass Fabric 1
