0.25mm 0.45mm 0.5mm Silicone Coated Glass Fabric / Cloth For Thermal Insulation

China 0.25mm 0.45mm 0.5mm Silicone Coated Glass Fabric / Cloth For Thermal Insulation supplier
0.25mm 0.45mm 0.5mm Silicone Coated Glass Fabric / Cloth For Thermal Insulation supplier 0.25mm 0.45mm 0.5mm Silicone Coated Glass Fabric / Cloth For Thermal Insulation supplier 0.25mm 0.45mm 0.5mm Silicone Coated Glass Fabric / Cloth For Thermal Insulation supplier 0.25mm 0.45mm 0.5mm Silicone Coated Glass Fabric / Cloth For Thermal Insulation supplier

Large Image :  0.25mm 0.45mm 0.5mm Silicone Coated Glass Fabric / Cloth For Thermal Insulation

Product Details:

Place of Origin: China
Brand Name: Unionfull
Certification: ISO9001:2008, SGS;TUV
Model Number: UPSE-8628D40

Payment & Shipping Terms:

Minimum Order Quantity: 500 Meters
Price: $2.5-8/ Square Meter
Packaging Details: 50 meters per roll with poly bag
Delivery Time: 15 Working Days After Receiving Payment
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 50000 square meters per day
Contact Now
Detailed Product Description
Base Cloth: 200gsm-1200gsm Fiberglass Fabric Coating: Silicone, 40/40, 60/60, 80/80
Thickness: 0.25mm, 0.45mm, 0.5mm Total Weight: 280g/m2-1500g/m2
Weave: Plain, Satin Temperature: -50 To 260℃

0.25mm 0.45mm 0.5mm Silicone Coated Fiberglass Fabric For Thermal Insulation


Silicone coated fiberglass cloth is made of high tensile strength woven fiber glass fabric. When it is coated with silicone on one side or both two sides. Silicone coated fiberglass fabric is abrasion resistant, tear resistant, durable, fire resistant, chemical resistant. What's more, silicone coating with feature of electrical insulation, it always be used to thermal insulation blanket for power equipments.



Silicone coating can work well below 260℃ continuously. The basic fiberglass cloth is capable of withstanding 550℃. Depends on its stable physical properties, chemical corrosion resistance, tear resistance and abrasion resistance properties, the silicone coated fiberglass cloth are widely used for thermal insulation and electrical insulation protective blankets or jackets. It is also can be used for fire blanket, welding splash protection curtain, heat shield, expansion joints, valve/generator insulation jackets.




Specification

Item Silicone Coated Fiberglass Fabric
Material E-glass Fiber Glass
Weave Plain or Satin
Warp Density 20 Ends/CM
Weft Density 11 Ends/CM
Mass Per Unit 280g/m2-1500g/m2
Thickness 0.25mm, 0.45mm, 0.5mm, etc
Coating Silicone, 40/40, 60/60, 80/80
Common Width 1000mm, 1270mm, 1550mm
Working Temperature

Silicone Coating below 260℃



Application:



  • Fire blanket
  • Welding curtain
  • Fabric expansion Joint
  • Shrink tunnel curtain
  • Removable thermal insulation jackets

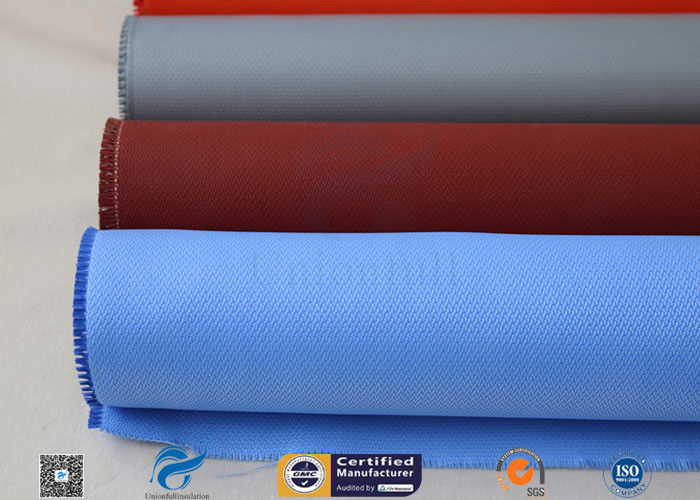

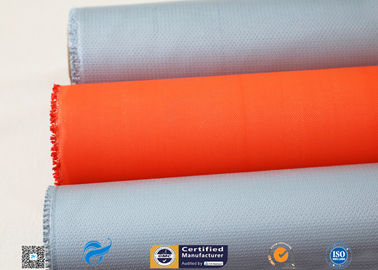

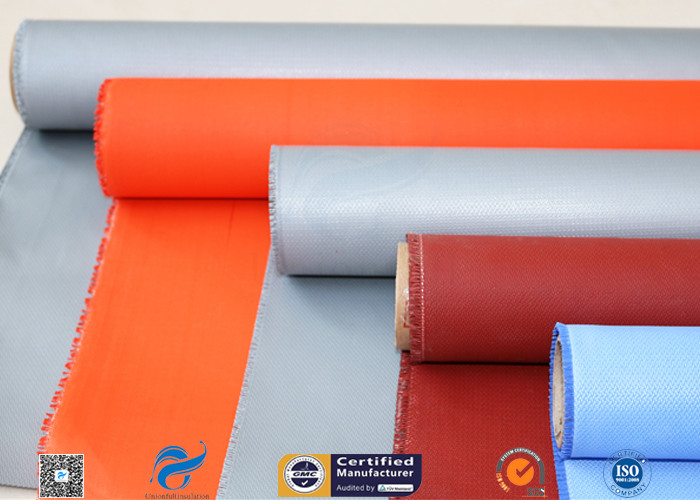

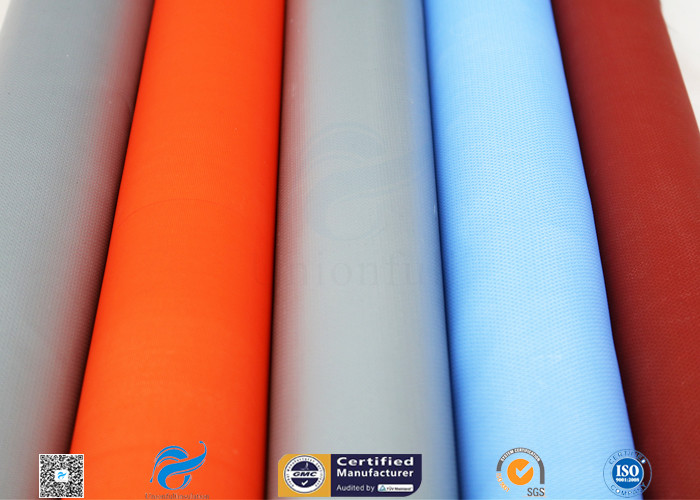

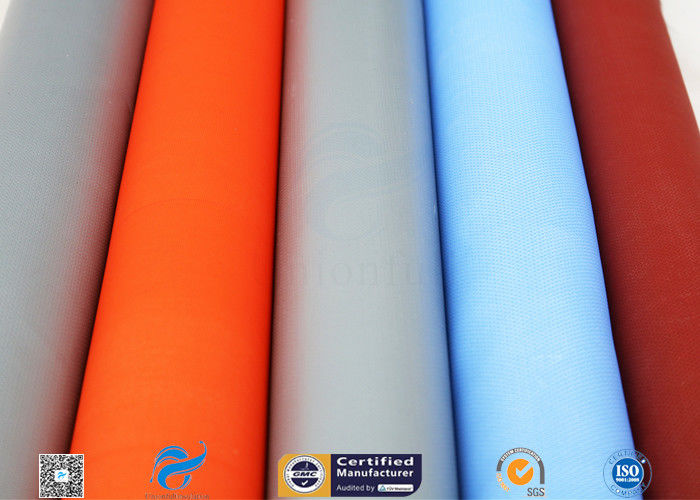

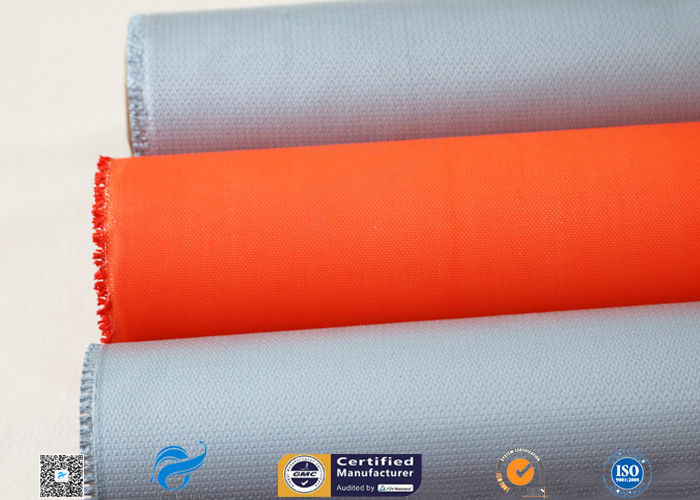

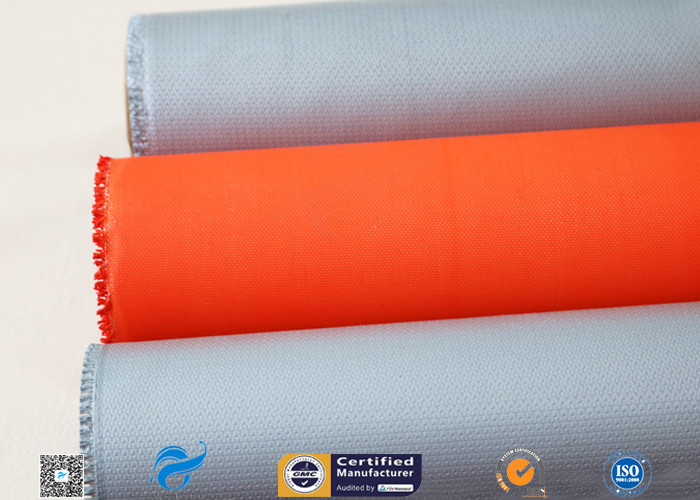

 Picture:



0.25mm 0.45mm 0.5mm Silicone Coated Glass Fabric / Cloth For Thermal Insulation0.25mm 0.45mm 0.5mm Silicone Coated Glass Fabric / Cloth For Thermal Insulation
