300g Grey Silicone Coated Fiberglass Fabric / Cloth For Welding Splash Shield

300g Grey Silicone Coated Fiberglass Fabric / Cloth For Welding Splash Shield
300g Grey Silicone Coated Fiberglass Fabric / Cloth For Welding Splash Shield 300g Grey Silicone Coated Fiberglass Fabric / Cloth For Welding Splash Shield 300g Grey Silicone Coated Fiberglass Fabric / Cloth For Welding Splash Shield 300g Grey Silicone Coated Fiberglass Fabric / Cloth For Welding Splash Shield 300g Grey Silicone Coated Fiberglass Fabric / Cloth For Welding Splash Shield 300g Grey Silicone Coated Fiberglass Fabric / Cloth For Welding Splash Shield 300g Grey Silicone Coated Fiberglass Fabric / Cloth For Welding Splash Shield 300g Grey Silicone Coated Fiberglass Fabric / Cloth For Welding Splash Shield 300g Grey Silicone Coated Fiberglass Fabric / Cloth For Welding Splash Shield 300g Grey Silicone Coated Fiberglass Fabric / Cloth For Welding Splash Shield 300g Grey Silicone Coated Fiberglass Fabric / Cloth For Welding Splash Shield 300g Grey Silicone Coated Fiberglass Fabric / Cloth For Welding Splash Shield
Basic Information
Place of Origin: China
Brand Name: Unionfull
Certification: ISO9001:2008, SGS;TUV
Model Number: UPSE-8628D50
Minimum Order Quantity: 500 Meters
Price: $2.6-3.50/ Square Meter
Packaging Details: 50 meters per roll with poly bag
Delivery Time: 15 Working Days After Receiving Payment
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 50000 square meters per day
Get Best Price Contact Now
Base Fiberglass: 200gsm Fabric Coating: Grey
Thickness: 0.3mm Weight: 200g/m2+50g/m2+50g/m2
Width: 155cm
Highlight:

silicone coated fiberglass cloth

,

silicone coated glass fabric

300g Grey Silicone Coated Fiberglass Fabric For Welding Splash Shield




Silicone Coated Fiberglass Fabric is made of woven fiberglass basic cloth coated with grey silicone on both two sides. Fiberglass fabric is a high strength but light weight fabric which is widely used as industrical heat insulation materials. For this 300gsm silicone coated fiberglass fabric, basic cloth is weighed at 200g/m2 and it is 0.2mm thick. When coated with 50g/m2 silicone/rubber on both two sides. The basic fiberglass cloth can be used below 550℃. And the working temperature of silicone coating is below 260℃.


Silicone coated fiberglass fabric is fire resistant, high strength and electrical insulation. Based on the properties of both fiberglass basic and silicone coating, this silicone cloth is widely used for fabric expansion joints or connector, thermal insualtion/electrical insulation jackets for electric generator, anti corrosion cover for pipe, fire blanket and fire curtains.



Technical Data Of Basic Fabric

Style Weave Thread Count Thickness Weight Width
UPSE-8628D50 Plain

17.3 Ends/CM

13 Ends/CM

 0.2mm 200g/m2 155cm




Specification Of UPSE-8628D50

Item Silicone Coated Fiberglass Fabric
Material E-glass Fiber Glass
Weave Plain
Warp Density 17.3 Ends/CM
Weft Density 13 Ends/CM
Mass Per Unit 300g/m2(200+50+50)
Thickness 0.3mm
Width 155cm
Working Temperature

Silicone Coating below 260℃


Properties:


  • Fire resistance
  • Abrasion resistance
  • Chemical corrosion resistance
  • Electric insulation
  • High strength, Durablity
  •  -50 degree to 260 degree C working temperature


Application:


  1. Cold protection/thermal insulation covers
  2. Fire doors, fire curtains / blanket
  3. Fabric expansion joints
  4. Fabric connector
  5. Electrical insulation shield for generator, electrical euipment

Picture:

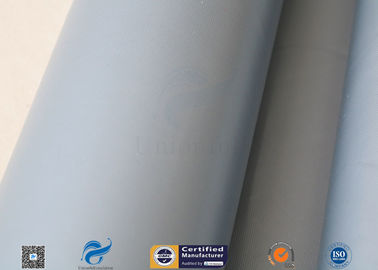

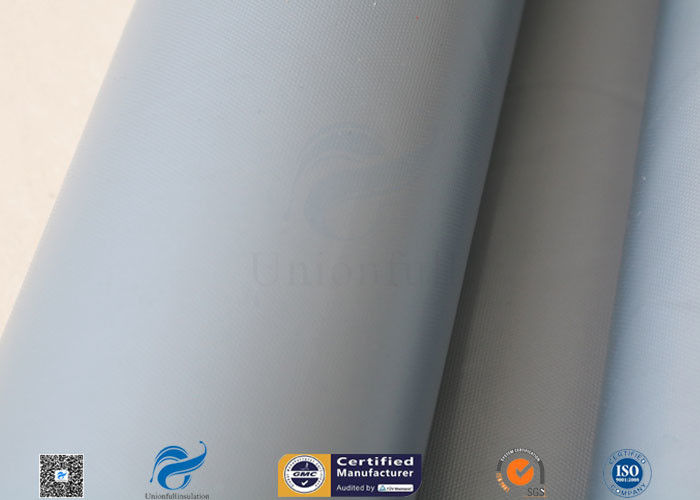

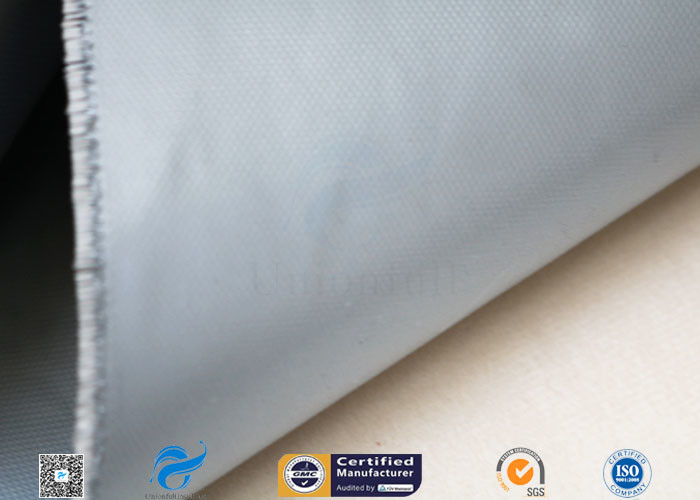

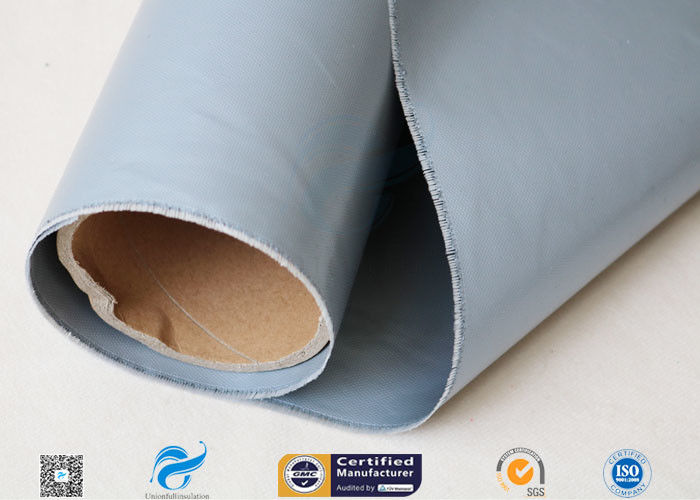

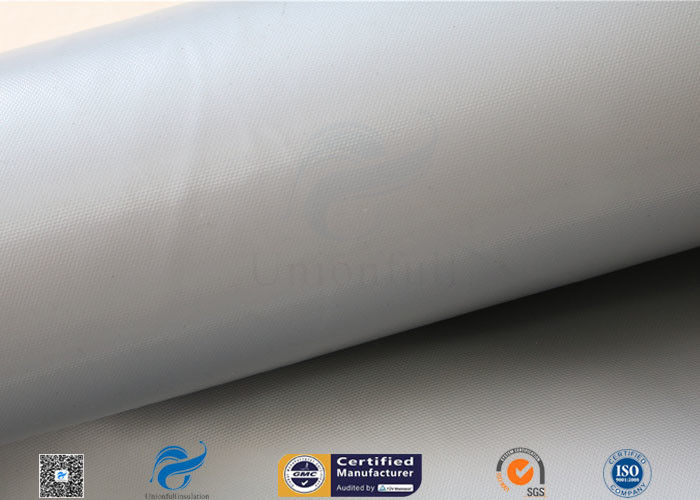

300g Grey Silicone Coated Fiberglass Fabric / Cloth For Welding Splash Shield 0300g Grey Silicone Coated Fiberglass Fabric / Cloth For Welding Splash Shield 1
















Tag:

silicone coated fiberglass cloth,

silicone coated glass cloth,

silicone coated glass fabric
