1010gsm Abrasion Resistant Red Silicone Coated Fiberglass Fabric 1mm Thickness

1010gsm Abrasion Resistant Red Silicone Coated Fiberglass Fabric 1mm Thickness
1010gsm Abrasion Resistant Red Silicone Coated Fiberglass Fabric 1mm Thickness 1010gsm Abrasion Resistant Red Silicone Coated Fiberglass Fabric 1mm Thickness 1010gsm Abrasion Resistant Red Silicone Coated Fiberglass Fabric 1mm Thickness 1010gsm Abrasion Resistant Red Silicone Coated Fiberglass Fabric 1mm Thickness 1010gsm Abrasion Resistant Red Silicone Coated Fiberglass Fabric 1mm Thickness 1010gsm Abrasion Resistant Red Silicone Coated Fiberglass Fabric 1mm Thickness 1010gsm Abrasion Resistant Red Silicone Coated Fiberglass Fabric 1mm Thickness 1010gsm Abrasion Resistant Red Silicone Coated Fiberglass Fabric 1mm Thickness 1010gsm Abrasion Resistant Red Silicone Coated Fiberglass Fabric 1mm Thickness 1010gsm Abrasion Resistant Red Silicone Coated Fiberglass Fabric 1mm Thickness 1010gsm Abrasion Resistant Red Silicone Coated Fiberglass Fabric 1mm Thickness 1010gsm Abrasion Resistant Red Silicone Coated Fiberglass Fabric 1mm Thickness
Basic Information
Place of Origin: China
Brand Name: Unionfull
Certification: ISO9001:2008, SGS;TUV
Model Number: UPSE-8784D160
Minimum Order Quantity: 500 Meters
Price: $5.5--5.85/ Square Meter
Packaging Details: 50 meters per roll with poly bag
Delivery Time: 15 Working Days After Receiving Payment
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 50000 square meters per day
Get Best Price Contact Now
Base Cloth: 850gsm Fiberglass Fabric Coating: Red Silicone, 80gsm On Two Sides
Total Thickness: 1mm Weight: 850g/m2+80g/m2+80g/m2
Width: 100cm Weave: Satin Weave
Highlight:

silicone coated fiberglass cloth

,

silicone coated glass fabric

1mm 1010gsm Abrasion Resistant Red Silicone Coated Fiberglass Fabric



Red silicone coated fiberglass fabric is made of glass fiber cloth which is coated with 80g/m2 red silicone on two sides. The basic fiberglass fabric of this silicone fabric is 850g/m2 with 0.8mm thickness. When coated 100g/m2 silicone on two sides, totally weight is 1010g/m2. Thickness is 1mm.  The basic fabric can withstand below 550. The silicone coating can be used below 260℃.

Silicone coated fiberglass fabric is a tear resistant, electrical insulation and fire resistant material. It is made of e-glass 850gsm fiberglass cloth with features such as anti chemical agents, dimension stability, abrasion resistance. Silicone coated fiberglass fabric are always used for industrial insulation products such as fire blankets, fire curtains, expansion joints, generator thermal insulation covers.



Specification Of UPSE-8784D160:

Item Silicone Coated Fiberglass Fabric
Material E-glass Fiber Glass
Weave Satin Weave
Warp Density 20 Ends/CM
Weft Density 11 Ends/CM
Mass Per Unit 1010g/m2(850+80+80)
Thickness 1mm
Width 100cm
Working Temperature

Silicone Coating below 260℃




Features:



  • High temperature resistance (-70degree to 260degree).
  • High strength
  • Sewable, easy to process
  • Chemical corrosion resistance
  • Longer using life
  • Electrical insulation




Application:


  • Fabric expansion joints
  • Firepr curtain & blanket
  • Welding blanket & protective clothing
  • Removable thermal insulation jacket



Picture:

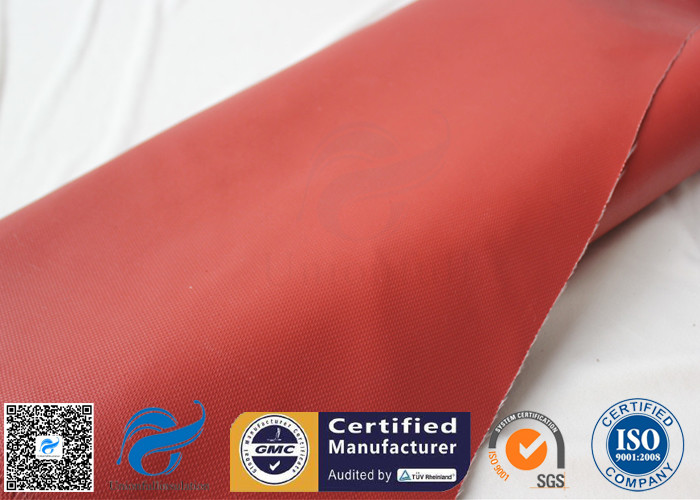

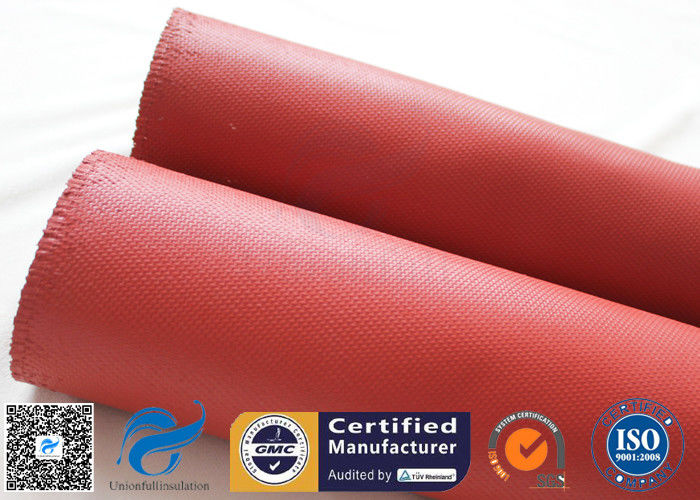

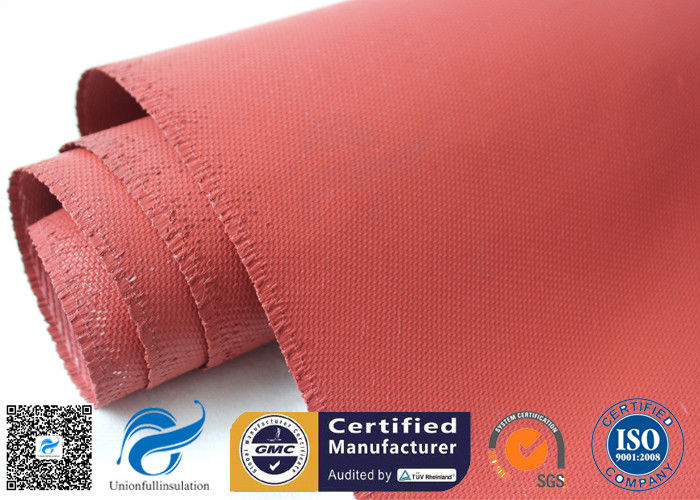

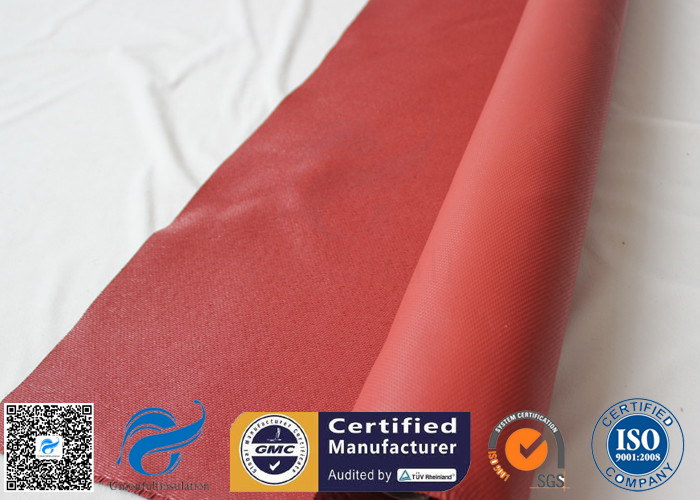

1010gsm Abrasion Resistant Red Silicone Coated Fiberglass Fabric 1mm Thickness 01010gsm Abrasion Resistant Red Silicone Coated Fiberglass Fabric 1mm Thickness 1






Tag:

silicone coated fiberglass cloth,

silicone coated glass cloth,

silicone coated glass fabric
